• Model NO.：FS-013
• Average Life：60, 000 Hours
• Application：Square, Garden, Park, Factory, Work Shop
• Operating Voltage：220-240V
• Certification：CE, RoHS, UL, CCC, FCC, TUV SAA
• Model No.：Fs-013
• LED Chips Brand：Lumileds LED Chips SMD3030 , 5050
• Power Available：10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W, 250W, 300W
• Input Voltages：220V, 110V, 120V, 240V
• Branded Driver Used：Mean Well, Sosen.LCD Brand
• Beam Angel：30°, 60°, 90°110
• Ra：Ra70, Ra80
• Input Voltage：220V
• Working Voltage：85-265V, 100-240V, 200-240V, 24V, 110-277V
• Driver Used：Isolated Constant Current Driver IP65 Waterproof
• Warranty：3 Years, 5 Years Warranty Available
• Beam Angles：140*70, 70*150, 150*80, 50*140, 140*140
• PF：>0.95
• Sensor：Action Radar or Infrared Availabe
• Power Efficiency：0.97
• Transport Package：Brown Master Carton

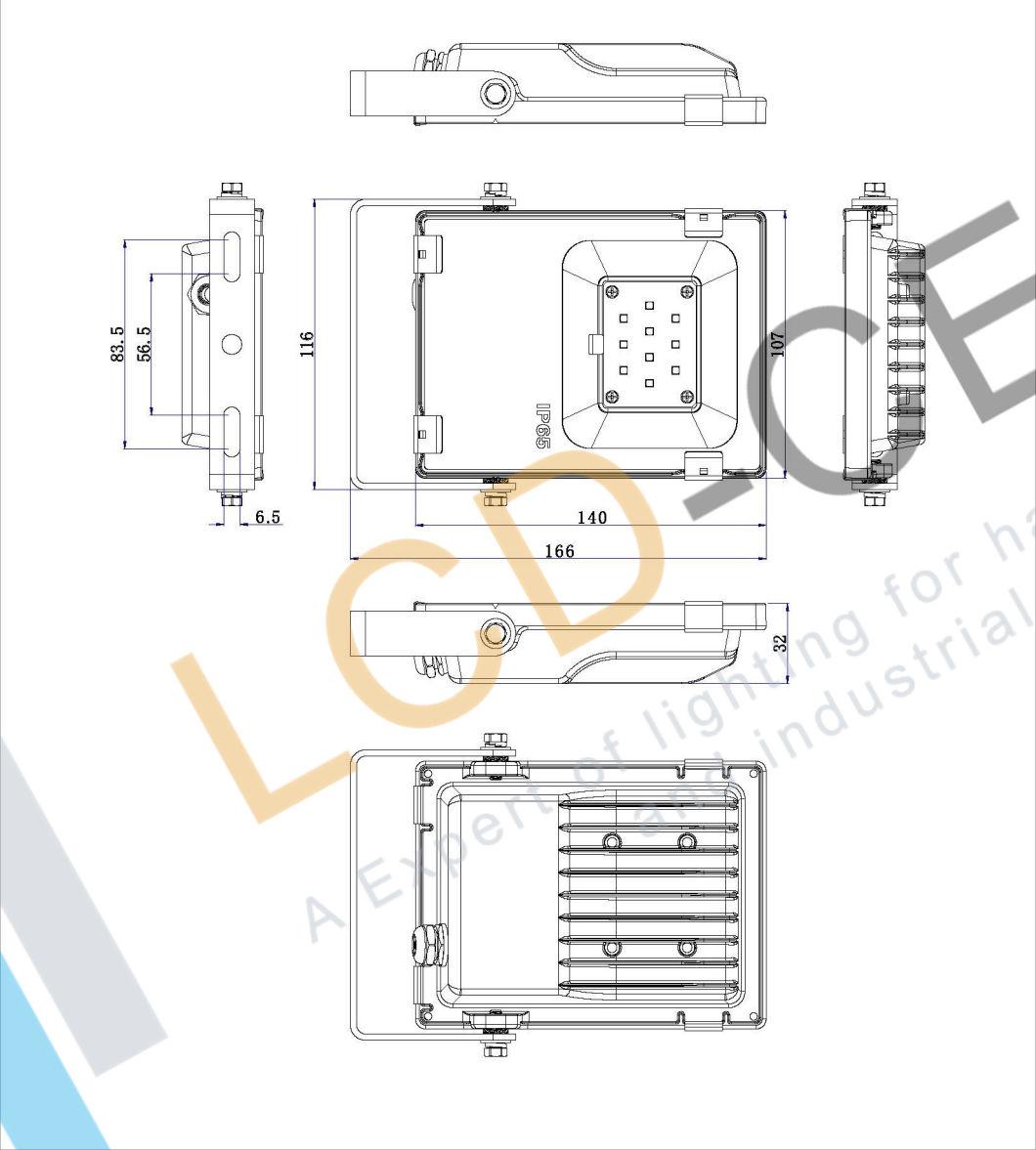

• Specification：166*116*32mm
• Trademark：LCD-CESP
• Origin：China
• HS Code：94054090
• Production Capacity：15000PCS,Month

Item10W20W30W50W80W100W150W200WInput Voltage90-265VAC or 12-28VDCInput Current0.05A0.1A0.15A0.23A0.38A0.48A0.7A0.93APower Efficiency>89%>89%>89%>95%>97%>97%>97%>97%LED Consumption9W18W27W45W72W91W135W185WSystem Consumption10W20W30W50W80W100W150W200WPower Factor>0.95Total Harmonic DistortionTHD< 20%Dimmable1-10V , DALI ,Triac on requestsPower Line1.0mm² three lineChip BrandLUMILEDs/CREE/Bridgelux / OSRAM (SMD3030) / SMD5050 on requestsLED Encapsulation12LEDs24LEDs36LEDs60LEDs96LEDs120LEDs180LEDs240LEDsRated LED Efficacy160-180 lumen/wLuminous Efficiency130-160 lumen/wColor Temperature3000K / 4000K / 6500KLuminous Output (Typ.)1350lm2700lm4050lm6750lm10800lm13500lm20250lm27000lmCRIRa> 80SCDMSDCM <5Lumen Maintenance> 80%@50,000h

Light Technical
Upward light output ratio 0
Standard tilt angle posttop 0°
Standard tilt angle side entry 0°

 Operating and Electrical
Input Voltage                                       100 to 277 VAC or 12-28 VDC
Input Frequency                                  50 to 60 Hz
Inrush current                                      340 A
Inrush time                                          0.025 ms
Power Factor (Min)                             >0.95

Controls and Dimming
Dimmable on requests                      1-10V , DALI , Triac




Mechanical and Housing
Housing Material                                 Aluminum die-cast ADC12
Reflector material                                Polish Aluminum
Optic material                                      Acrylate
Optical cover                                       4mm temper Glass
Fixation material                                  corrosion resistant powder coating carbon Steel
Mounting device                                  Mounting bracket adjustable
Optical cover                                       Flat
Optical cover                                       Clear

Approval and Application
Ingress protection code                     IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code           IK07 [ 4 J vandal-protected]
Surge Protection                               Luminaire surge protection level >2 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux)                         1300-1600 lm
Luminous flux tolerance                                       +/-6%
Initial LED luminaire efficacy                                130-160 lm/W
Init. Corr. Color Temperature                                3000 K 4000K 6500K
Init. Color Rendering Index                                   ≥75
Initial chromaticity (0.380, 0.390)                         SDCM <5
Initial input power                                                 10 W
Power consumption tolerance                             +/-10%

Over Time Performance (IEC Compliant)
Driver failure rate at 7000 h 0.5 %
Useful life L80B10 100000 h
Lumen maintenance at useful life of 100000 h,at 25 °C
Application Conditions
Ambient temperature range -30 to +45 °C
