• Model NO.：GLT1200L-7M
• Warranty：12 Months

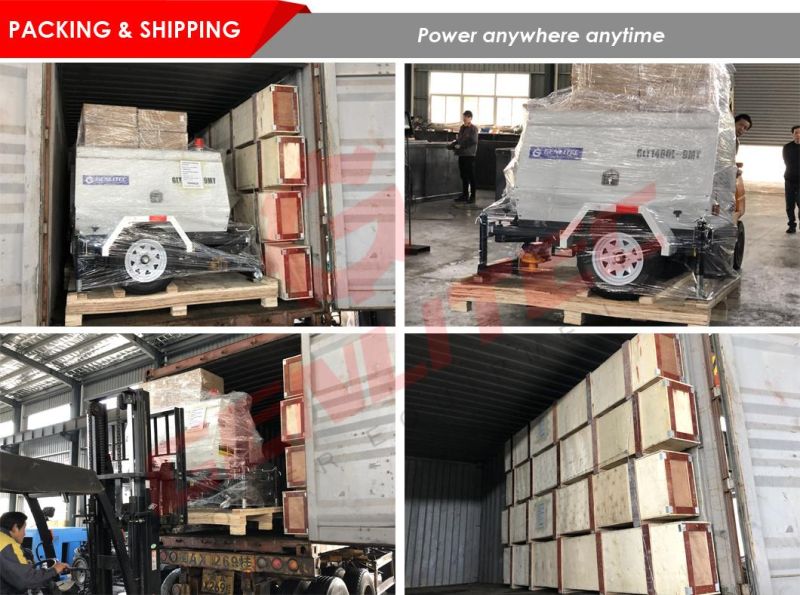

• Transport Package：PE Film Wraps or Woode Box
• Specification：4x300W LED light tower
• Trademark：Genlitec Power
• Origin：Fuzhou, China
• HS Code：9405409000
• Production Capacity：300 Units Per Month

Basic Info.

Model NO. GLT1200L-7M Warranty 12 Months Transport Package PE Film Wraps or Woode Box Specification 4x300W LED light tower Trademark Genlitec Power Origin Fuzhou, China HS Code 9405409000 Production Capacity 300 Units Per Month

Product Description

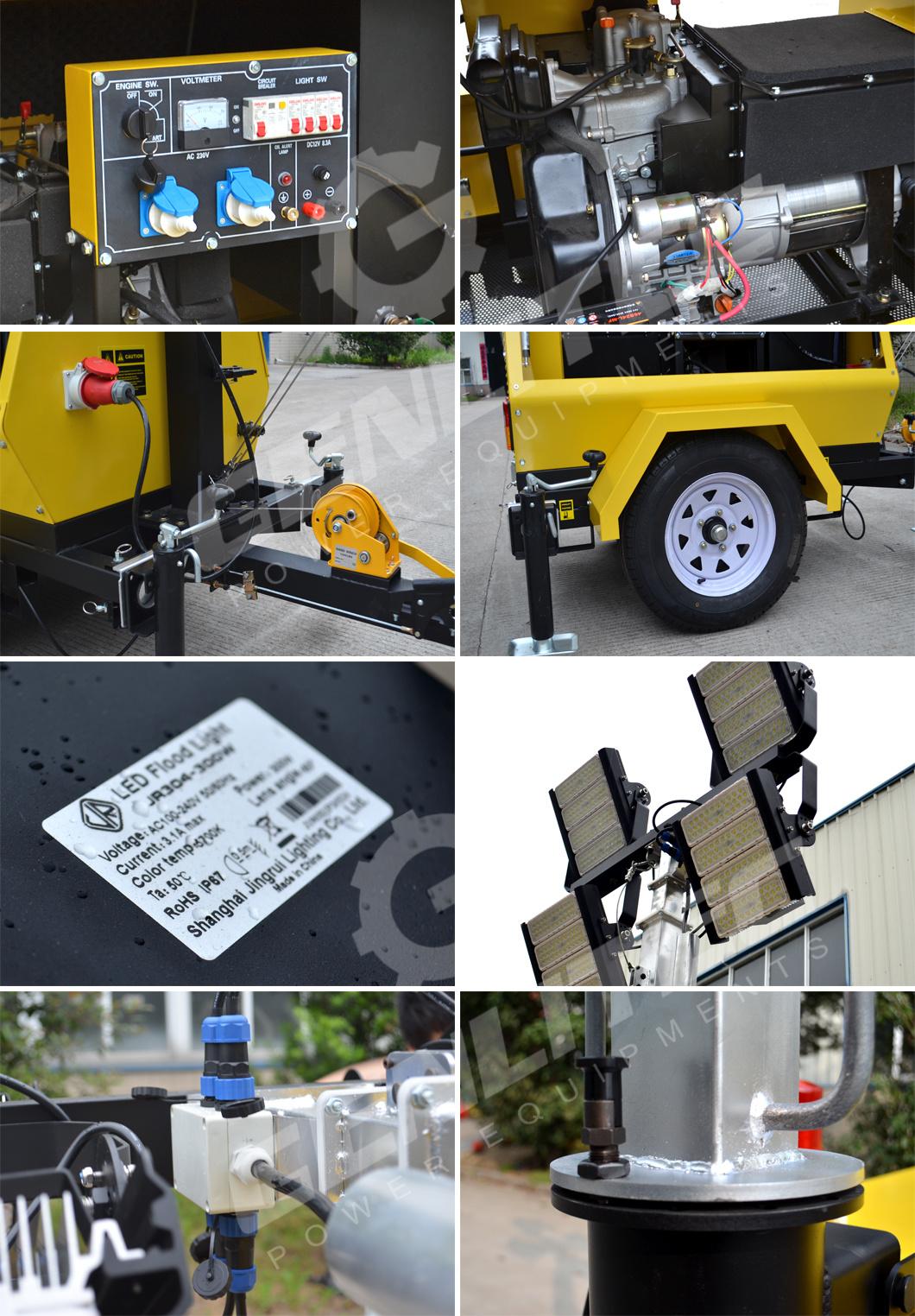

 Δ STANDARD CONFIGURATION
1) Powerful 4X300W IP67 protection grade LED floodlight produce 180,000 lumens in total.
2) Powered by GENLITEC POWER air cooled diesel generator 5KVA
3) With Low-oil pressure, high temperature, engine over speed, generator over load shutdown alarm.
4) 7 meters galvanized mast with 2*1200lbs self-lock winches.
5) One outrigger and four leveling jacks provide stability for different groud.
6) Manual mast with 360 degrees rotation system.
7) Canopy made by 2mm cold rolled steel plate, and double layers 60mm steel tube frame.
8) Trailer system with single axle and 13inch tyres, mechanical hand braker.
9) Soundproof and rainproof design ensure outdoor use
10) Quick-connection Lights wires with IP67 protection grade

Δ TESTING ITEMS
GENLITEC POWER provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Lights testing
8) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

Δ SPECIFICATION

Model	GLT1200L-7M
Type of Lights	LED floodlights
No. & Power of Lights	4 x 300W
Lights Bar Tilting Angle	25°, 40°, 60°, 90°, 110°  (Manually)

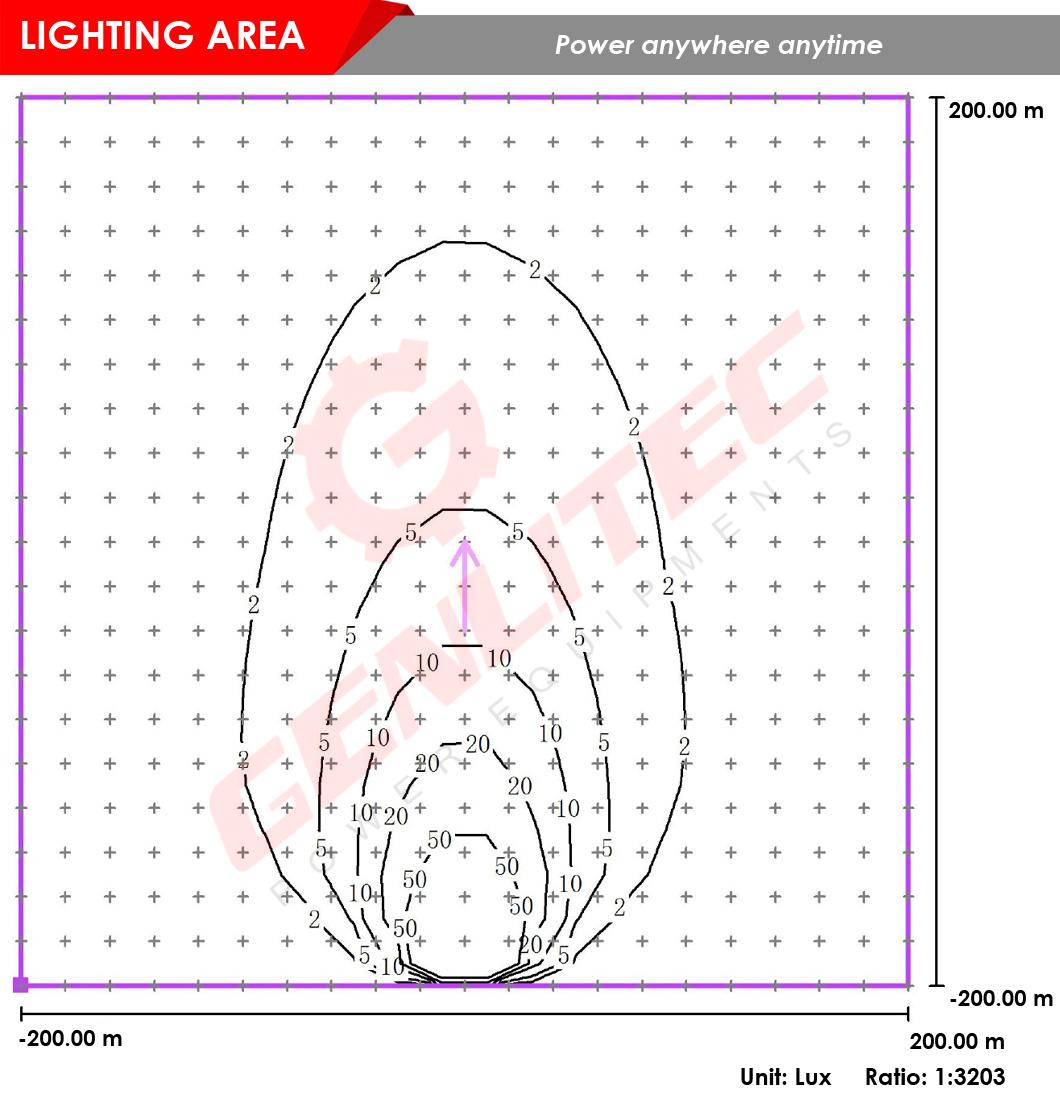

Light Capacity	4 x 45000 Lumen (in total)
Mast Lifiting System	Manual (Operated by 1200lbs self-lock winch)
Mast Rotation Angle	360° Manually
Mast Section	3
Max. Height of Mast	7 meters
Brake System	Mechanical Handbrake
Engine Model	DE186FAE
Max. Power of Engine	10HP/3600RPM
Engine Type	Air cooled, single cylinder, 4-strok, direct injection
Stabilizing Legs	4 (Manually & Retractable)
Chassis Structure	Single axle, 2 x 13 inch tyres
Phase	Single
Power Factor	1
Generator Power	4.5/5.0KVA
Fuel Tank Capacity	60L
