• Model NO.：CS-HF02-60
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, CCC, FCC
• Voltage：3.2V
• Dimming Voltage：6V
• Main Body Material：Aluminum Alloy+Die-Cast Aluminum
• Light Source or Not：with Light Source
• Delivery Time：5-7days
• Warranty Option：3years,5years,7years
• Watt′s Option：40W,60W,80W
• CRI：>75
• Light Color Opiton：White,Neutral, Warm White
• Chip′s Size：3030
• LED Qty /Module：60PCS,80PCS
• Solar Charging Panel：70W
• Chip′s Brand Option：Epistar,Bridgelux, ,Osram,CREE
• Installation Height：7-9m
• Solar Panels at Maximum Power：22W
• Space Between Light：20-25m
• Transport Package：Carton
• Specification：L490W210H68mm
• Trademark：Capson Lighting
• Origin：China Guangdong
• HS Code：9405409080
• Production Capacity：100000pieces,Year

Basic Info.

Model NO. CS-HF02-60 Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS, CCC, FCC Voltage 3.2V Dimming Voltage 6V Main Body Material Aluminum Alloy+Die-Cast Aluminum Light Source or Not with Light Source Delivery Time 5-7days Warranty Option 3years/5years/7years Watt′s Option 40W/60W/80W CRI >75 Light Color Opiton White/Neutral/ Warm White Chip′s Size 3030 LED Qty /Module 60PCS/80PCS Solar Charging Panel 70W Chip′s Brand Option Epistar/Bridgelux/ /Osram/CREE Installation Height 7-9m Solar Panels at Maximum Power 22W Space Between Light 20-25m Transport Package Carton Specification L490W210H68mm Trademark Capson Lighting Origin China Guangdong HS Code 9405409080 Production Capacity 100000pieces/Year

Product Description

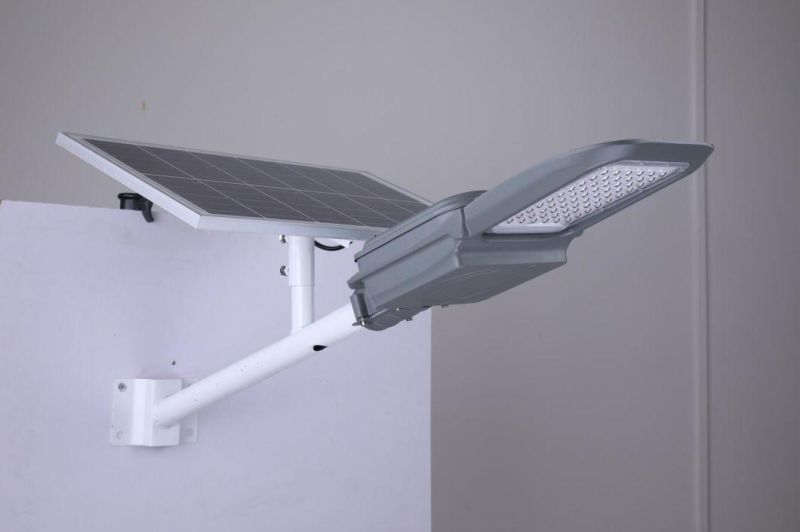

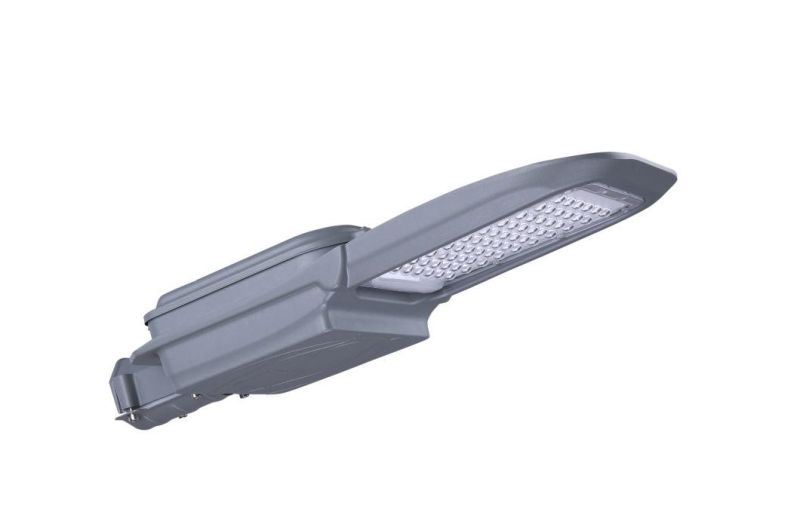

The latest and the most cost-effective solar street lamp LED40W/60W/80W  (CS-HF02-60)

Product name	LED Solar Street Light 60W
Item No.	CS-HF02-60
Power option	40~80W
LED chips	BridgeLux  3030*60pcs
Solar Panel	6V  70W
Battery	3.2V   60AH
Lamp size	L490W210H68mm
Panel Size	L510W230H78MM
Lumens	3800LM,   CRI > 80
Charging time	5-8 hours
Working time	>30 hours( cloudy and rainy days : 6days)
IP Rated	IP65
Material	Aluminium Alloy
Control mode	Remote + Light control
Warranty	2years
Remark	Lamp arm length-6M,Galvanized pipe color, thickness2.75CM,The upper caliber is 60 cm, the lower caliber is 130 cm, the flange is 260*260*10 cm, and the lamp arm is 800 cm.

1. New all-in-one design
2. Efficient monocrystalline silicon solar panel
3. High brightness LED made in USA
4. PIR intelligent sensor
5. Humanized timing function
6. Multi-functional high-tech controller
7. High-quality lithium battery
8. Choose from 40w-80w
9. Safe installation design
10. Special heat sink
11. Professional waterproof design
12. CE, RoHS, IP65 certificate
13. Two-year warranty

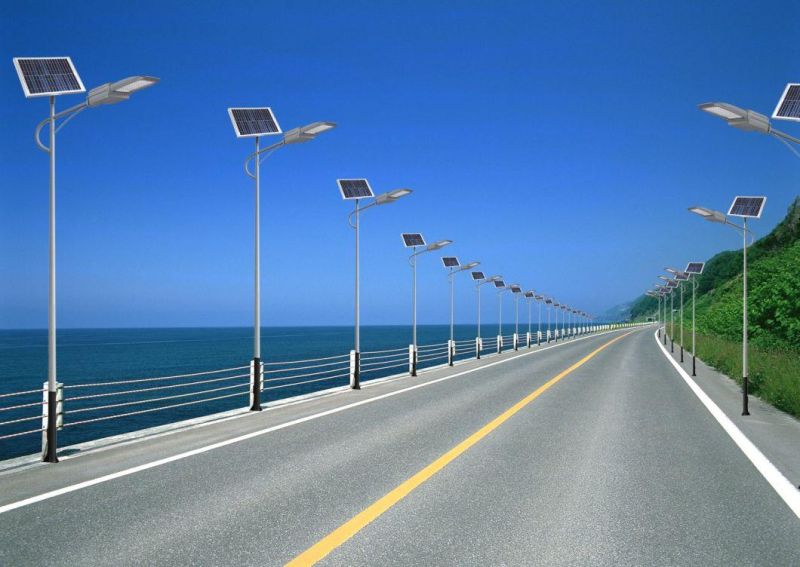

Application of solar street lamp:
1. Courtyard/garden/park/street/road
2. Road/parking lot/private road/sidewalk/public square
3. Plaza/campus/airport/farm and pasture/perimeter security, front yard, back yard
4.Wildlife areas/remote areas/camping, and more


1.LED lamp, solar panel, lithium battery and controller, all compact design.
2. No wiring, 100% solar power, easy to install and transport.
3. Built-in infrared/microwave sensor, which can automatically adjust the light output.
4. Dustproof, dustproof and waterproof.
5.2-5 year warranty.
