• Model NO.：SLAX-YY-100W
• Illumination Time：12h(Optional) 2-3 Rainy Days
• Cell Type：LFP 32650
• Usage：Garden, Street
• IP Rating：IP65
• With Light Source：With Light Source
• Luminous Efficiency：130 Lm ,W
• Chips：3030
• Light Emitting Diode：100PCS * SMD3030
• Color Rendering Index：CRI>70
• Color Tolerance Adjustment：≤15 Sdcm
• Battery Capacity：20ah
• Solar Panel Power：25W
• Working Temperature：-10ºC~+40ºC
• Service Life：30000 H
• Installs Way：Lamp Post
• Size of The Solar Panel：500mm*280mm
• Working Pattern：Light Control + Remote Control+ Radar Sensor
• Beam Angle：70°*140°
• Transport Package：Carton Box
• Trademark：SUNLE
• Origin：Zhejiang, China
• Production Capacity：10000 Pieces,Year

Basic Info.

Model NO. SLAX-YY-100W Illumination Time 12h(Optional) 2-3 Rainy Days Cell Type LFP 32650 Usage Garden, Street IP Rating IP65 With Light Source With Light Source Luminous Efficiency 130 Lm /W Chips 3030 Light Emitting Diode 100PCS * SMD3030 Color Rendering Index CRI>70 Color Tolerance Adjustment ≤15 Sdcm Battery Capacity 20ah Solar Panel Power 25W Working Temperature -10ºC~+40ºC Service Life 30000 H Installs Way Lamp Post Size of The Solar Panel 500mm*280mm Working Pattern Light Control + Remote Control+ Radar Sensor Beam Angle 70°*140° Transport Package Carton Box Trademark SUNLE Origin Zhejiang, China Production Capacity 10000 Pieces/Year

Product Description

Main parameters
Product series	SLAX -YY-100W
Lamp power	<100W
Luminous efficiency	130 lm /W
Light emitting diode	100pcs * SMD3030
Color temperature	6000K~6500K
Color rendering index	CRI>70
Color tolerance adjustment	≤15 SDCM
Battery capacity	20 AH
Solar panel power	25 W
Lighting days in continuous rainy days	2~3 days
Working temperature	-10ºC~ +40ºC
Service life	30000 H
IP protection level	IP65

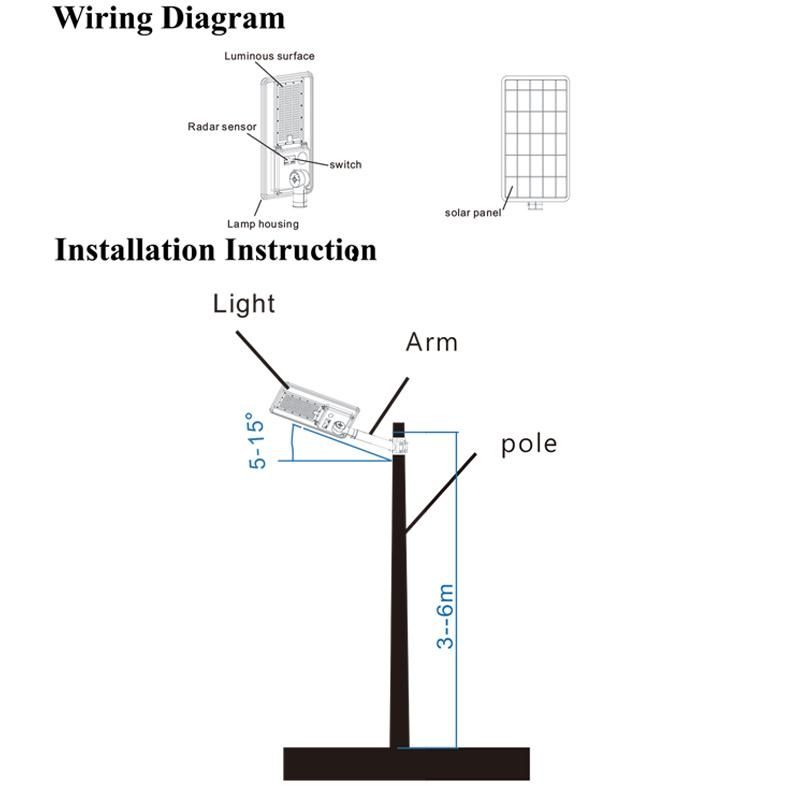

Installs Way	Lamp post

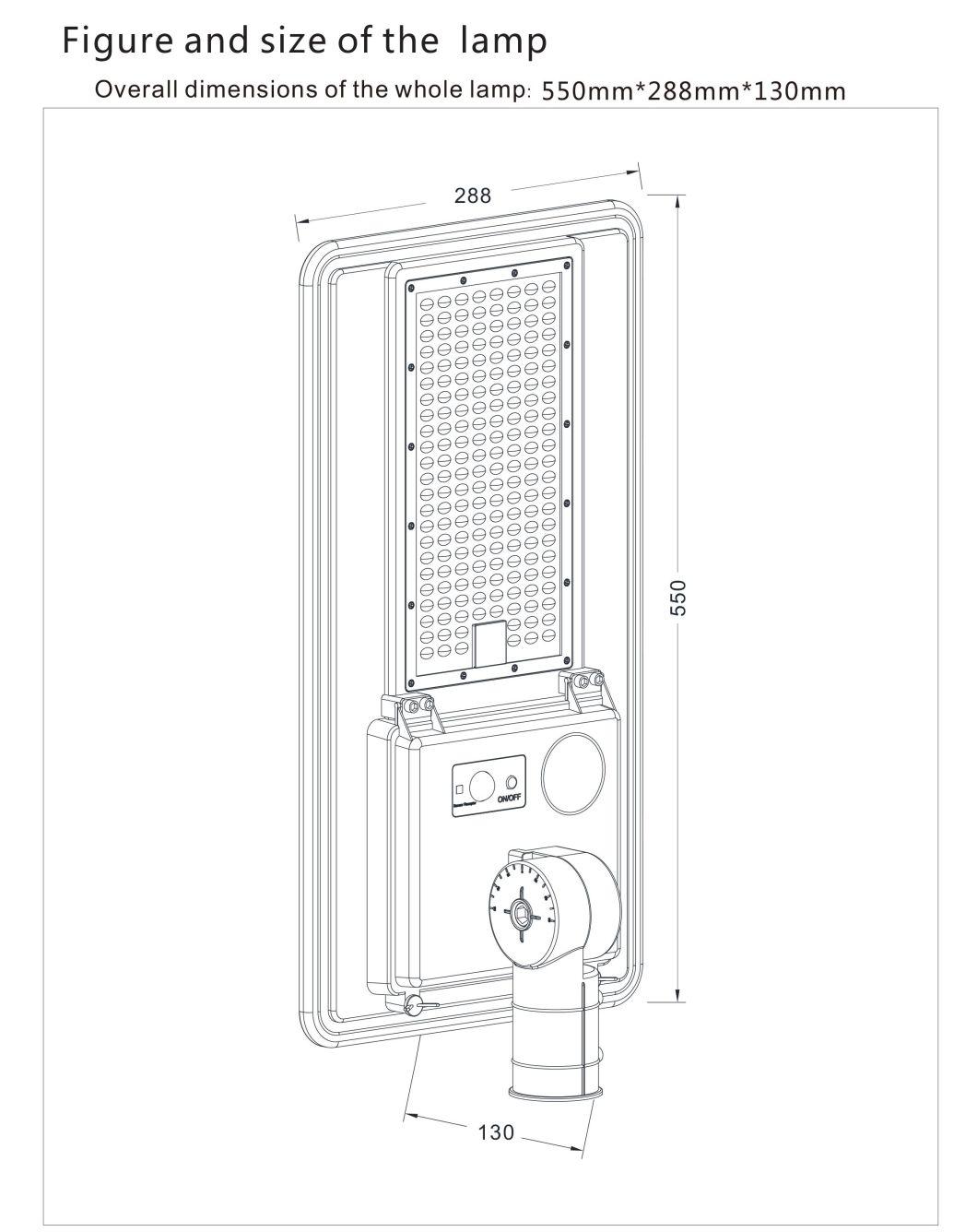

Size of Standard version model	550mm*288mm*130mm
Size of the solar panel	500mm*280mm
Net weight	3.45 kg
Gross weight	5.28 kg
Size of the top pearl cotton	550mm*280mm*15mm
Size of the down pearl cotton	250mm*150mm*110mm
Size of Carton	560mm*295mm*160mm

Maintenance and repair instructions:
1. Clean the PC lens and solar panel of lamps regularly to keep good light transmittance of lamps.
2. Regularly clean the dust of the outer shell of the lamp to maintain good heat dissipation performance.
3. Do not clean with water or corrosive solution, but rather with a dry rag.
4. Avoid storing and using lamps in corrosive environment or environment containing harmful substances, such as sulfide, halide and phthalate.
5. Please select professionals to install and maintain the lamps. During maintenance, the lamps need to be powered off or turned off. Do not look directly at the light source.

Quality assurance and after-sales service:
Under normal use conditions, quality assurance is based on the correct preservation, installation, use and maintenance of products; Product damage caused by improper installation and use and violation of product operation regulations is not within the scope of this guarantee; For the quality problems during the quality warranty period, the company will choose to repairing, repairing parts or repairing new products during the warranty period; If the warranty period exceeds, materials and labor costs will be properly charged. The product quality problems caused by natural factors and environmental factors are not covered by the warranty.
