4X1000W Emergency Portable Mobile Light Tower with Flood Light
Fujian Robust Power Co., Ltd.- Fuel Capacity：100L
- Total Power of Lamps：4*1000W
- Type of Lamp：Metal Halide Lamp
- Lumen：4*110000
- Total Height：Top 9m
- Tow Hitch：Ring, Ball Hitch
Base Info
- Model NO.：RPLT-6000
- Tire Size：13 Inch
- Net Weight：780kg
- Lifetime of Lamp：5000 Hours
- Transport Package：Plywood Pallet,Plwood Case,Cartons
- Specification：ISO9001: 2000, CE
- Trademark：Robust Power
- Origin：China
- HS Code：94054090
- Production Capacity：250sets,Month
Description
MastMaximum extention of mast 6m/9m Elevation Mechanical/Electric Raising/lowing mast Winch(Mechanical)/Button(Electric) Stages 3 Turning angle 358 degrees non-continuous Lamp Total power of lamps 4× 1000W /4× 1500W Type of lamp Metal halide lamp Light capacity 4× 88, 000 lumen Voltage 120, 220, 230, 240 Frequency 50Hz/60Hz Lifetime of lamp 5000hours Working temperature ≤ 85 Connection Protection index IP54 Light Coverage 5 to 7 acres Characteristics of the generator Model RD8K Generator set Prime power 50Hz 7.2kW /60hz 8kw Engine model JAPAN KUBOTA D1105-BG Engine speed 50Hz 1500rpm/60hz 1800rpm Engine type 3 cylinder, in line, water-cooled Engine Aspiration Natural Alternator Wantong WTW-165B Alternator Type 4-pole, brushless Fuel tank capacity 100L Prime fuel consumption at 100% load 2.0L/h Working hours 50 Control system GU602A Digital controller Power Outlets 2 Trailer Tow hitch Ring or ball hitch Stabilier Supports 5 × Manual Tire Size 52 cm Anti-wind capacity ≤ 10 Brakes Manual Packing Dimension & Weight Retracted Dimension 4400mm × 1350mm × 1930mm(Around) Mast Packing 3800mm × 350mm × 350mm (Around) Generator set packing 1550mm × 1150mm × 1610mm (Around) 1000W lamps packing 4 pcs 520mm × 520mm × 370mm (Around) Container load (40HQ) 9 Net weight 870kg

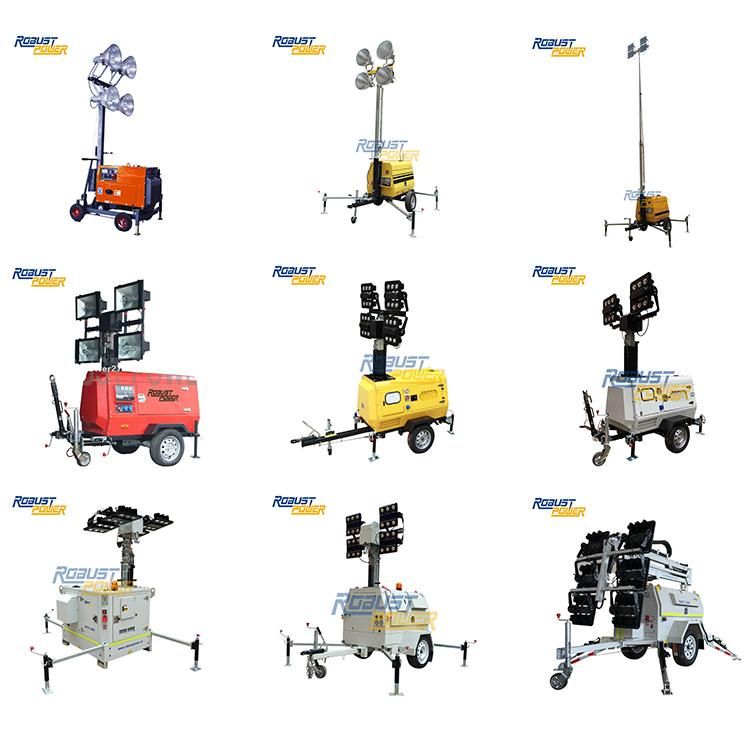

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
