Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*80mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.220 / MAX.600


Screen parameters:
 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000dotssqm3LED TypeSMD35354Viewing Angle(H)140°,(V)140°5Brightness≥5500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Cabinet Type and MaterialSteel Iron12Cabinet Weight≤50kg/sqm13VoltageAC 220/110V±10%,60Hz14Avg. Power Consumption220W/sqm15Max. Power Consumption600W/sqm16Protection GradeFront IP65,Rear IP5417Operating Temp/Humidity-30ºC~60ºC, 10~95%RH

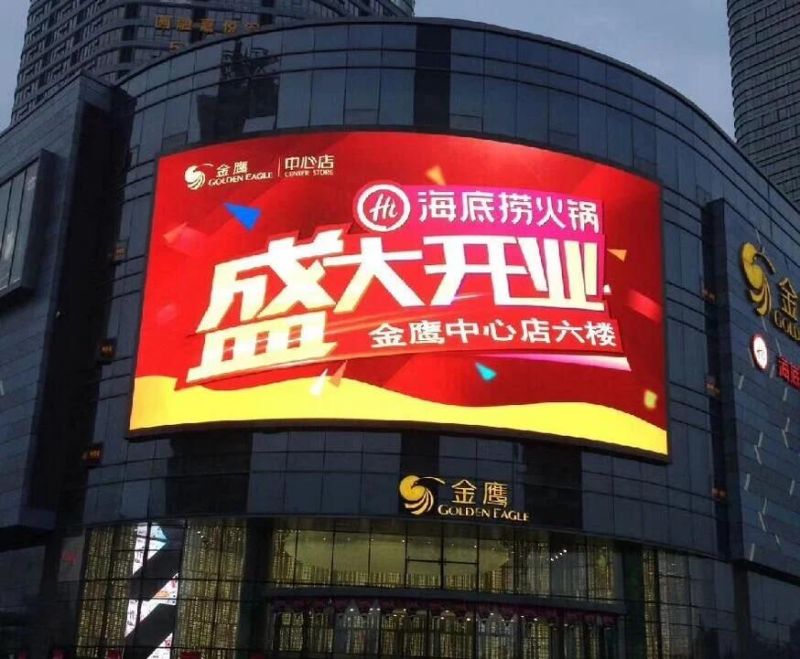

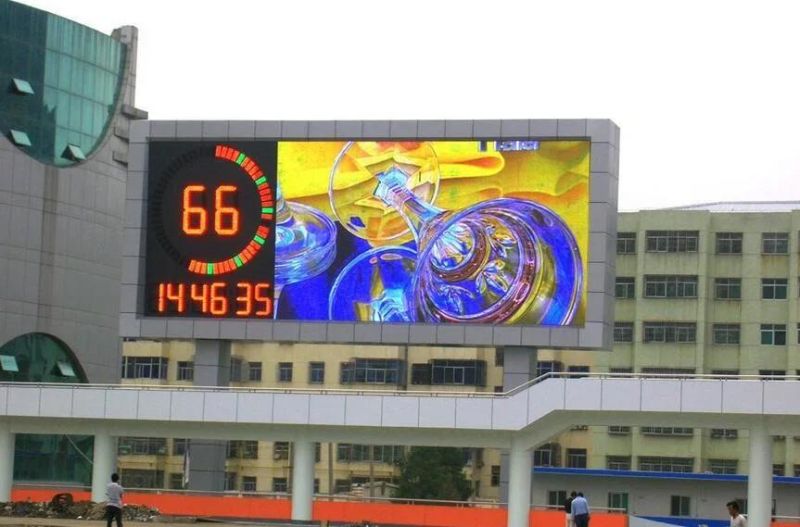

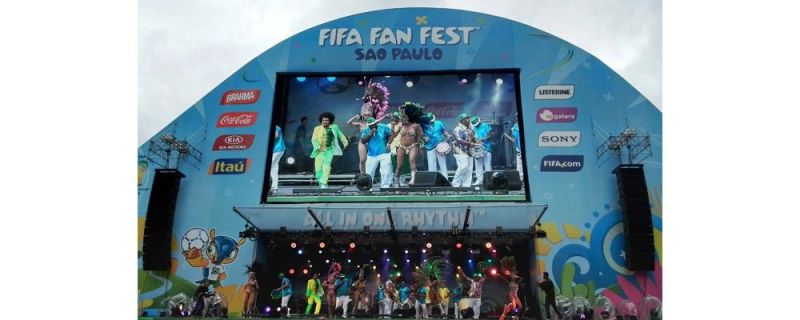

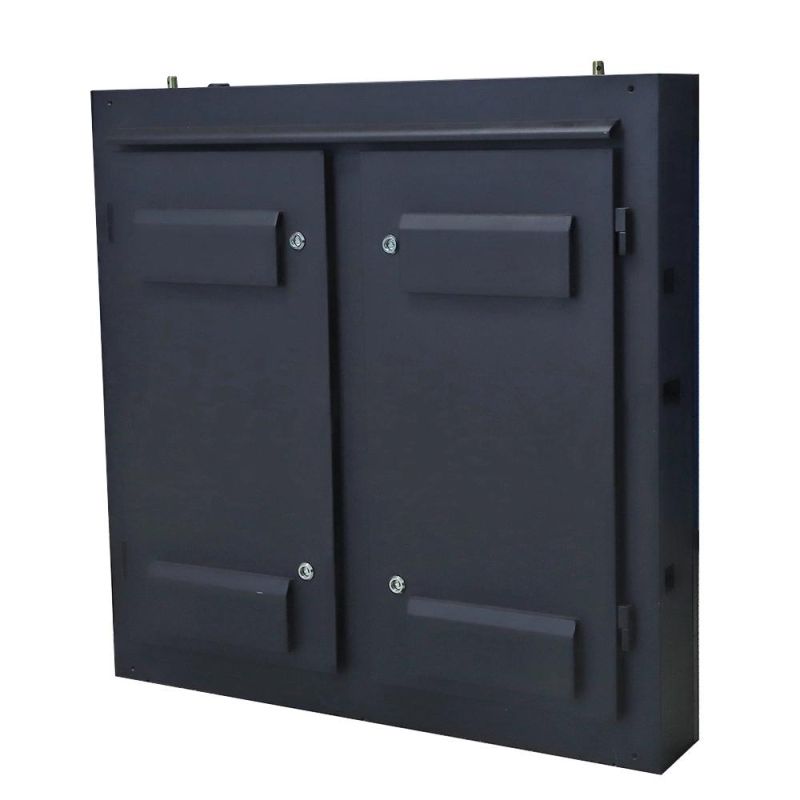

PRODUCT PHOTOS:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen


Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

CERTIFICATES:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

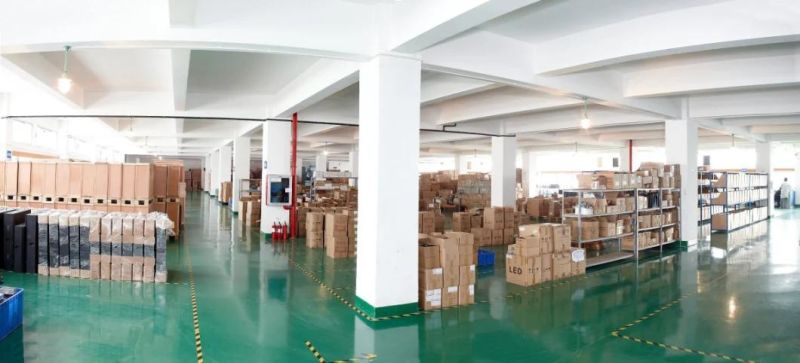

WORKSHOP:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

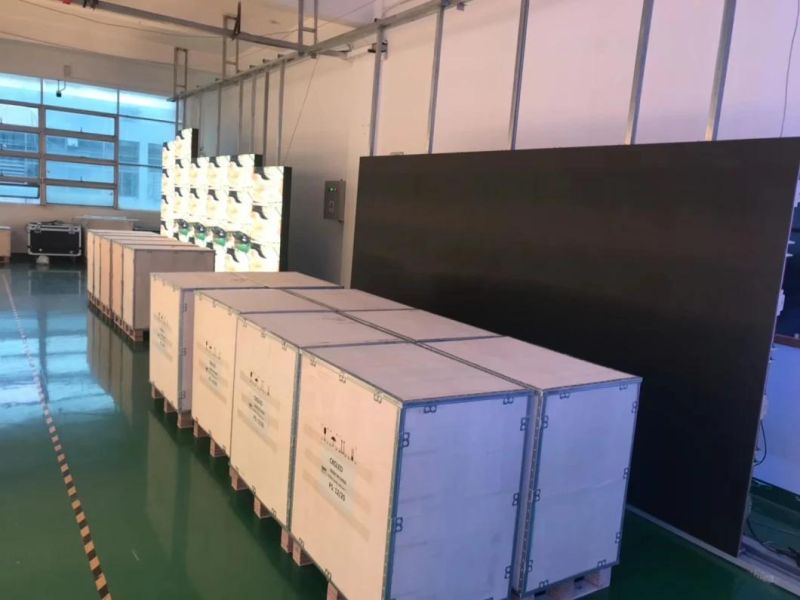

PACKAGE:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen

COMPANY CULTURE:
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
Outdoor Fixed P10mm Outdoor LED Display /LED Display Screen
