Basic Info.

Model NO. P3.91 curved led display System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating 31 Certification CE, RoHS, UL, CCC, ETL Name Curved LED Display Panel Size 250mm*250mm Cabinet Size 500mm*500mm, 500mm*1000mm Brightness 1600CD LED Specification 2121 LED Chip Episar Drive IC Icn2037,16206 View Angle Horizontal140°/Vertical 120 Humidity 10%~95% Life Span 100000 Hours Refresh Frequency 1920-3840Hz/S Control Card Nova/Linsn/HD Working Temputure -25 -- +55 Storage Temputure -35 --- +65 Warranty Two Years Transport Package Air Box & Carton Box & Wooden Box Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8531200000 Production Capacity 6000spm/Month

Product Description

500mm*500mm 500mm*1000mm P2.97 P3.91/P4.81 Indoor Full Color Curved led display for stage








 Product Description


P3.91 Indoor Full Color Curved led display for stage rental


Pixel pitch: 3.91mm
Refresh rate: ≥1920Hz
Brightness: 1400-1800CD/sqm
Cabinet Size: 500*500mm
Cabinet Weight:7.2kg

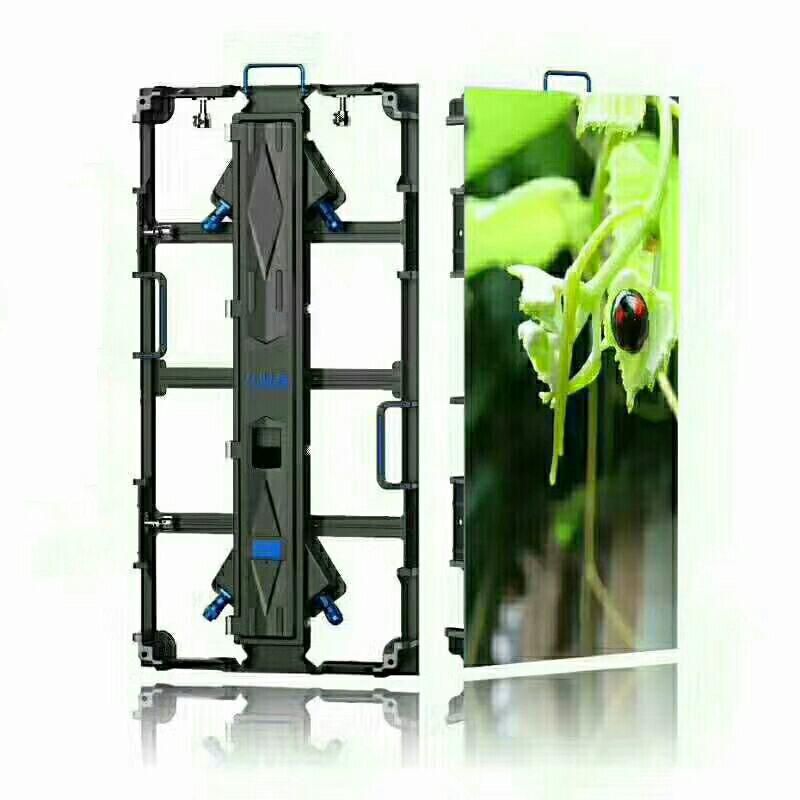

Cabinet Material: Die-casting aluminum


Product Features


1) P3.91mm, 500*500mm die-casting aluminum cabinet;

2) Flat mask surface and wide viewing angle;

3) Super light, super slim, easy to transport and less freight case;

4) Fast lock design enable fast and convenient assembling and dismantling;

5) MBI5124/2037 Driving IC, refresh rate higher than 1920HZ, no flicker line

Specification



Item	Curved led display
Model NO.	P3.91
Pixel Pitch	3.91mm
Pixel Configuration	1R1G1B
Density	65500dots/m2
Brightness	1600CD
Color Temperature	6500-9500K
Scan Method	1/16
Cabinet Size	500x500mm,500*1000mm
Module Resolution	64x64
Cabinet Resolution	128x128
Cabinet Weight	7 Kg/cabinet
Max. Power Consumption	900W/m2
Ave. Power Consumption	700W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	>1920Hz
Gray Scale	16bit
Best View Distance	>3m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-25-+55 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

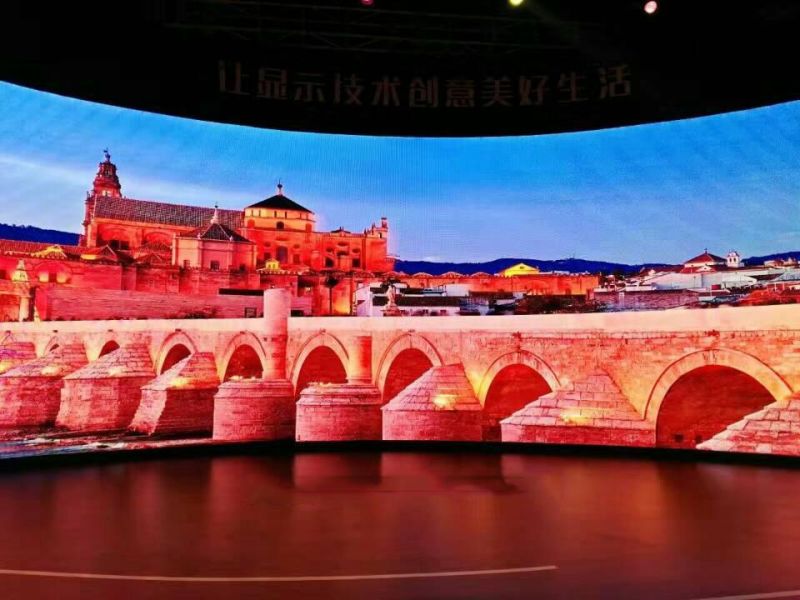

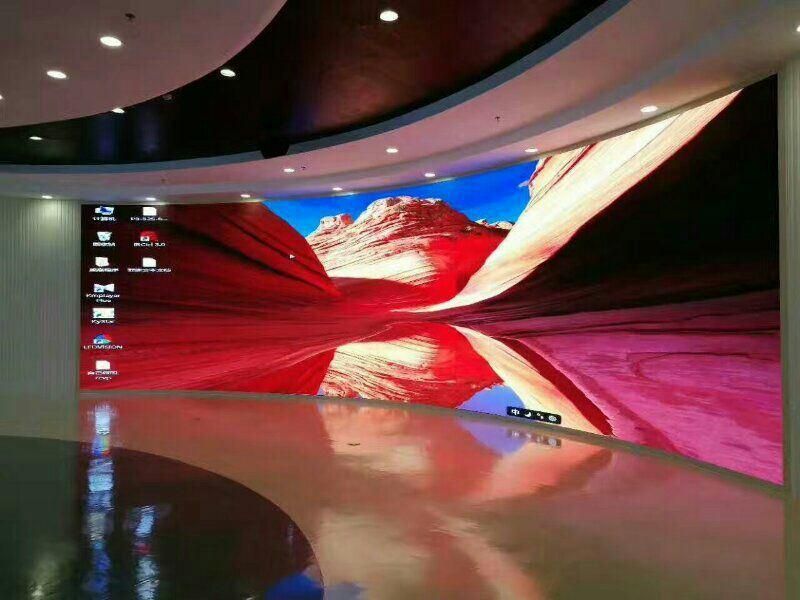

Curved led display application:





Our service

 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms

 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2 years6. Delivery time:3-15 working days
