Short Lead Time Outdoor Die-Cast Rental LED Display

Shenzhen LED World Co., Limited

Base Info

Description

ParametersLW-RO6.7                      LW-RO8                       LW-RO10                    LW-RO10
 Pixel Pitch (mm)6.66mm8mm10mm10mm
 Pixel density(pix/m2)22545156251000010000
 LED TypeSMD3535SMD3535SMD3535SMD5454
 Viewing AngleX,Y120°X,Y120°X,Y120°X,Y120°
 Brightness(nits)≥5000≥5000≥5000≥5000
 Drive Method1/61/51/21/2
 Color Depth65536
 Refresh Rate(Hz)1920192019201920
 Module Size (mm)320×160×16
 Cabinet Size(mm)640×640×80
 Cabinet MaterialDie casting aluminum
 Cabinet weight(kg)12151515
 Voltage110-240V
 Average.power(W/m2)230230230230
 Max.power (W/m2)700700700700
 IP GradeIP65/IP54
 Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
 Storage temperature/ humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
 Lifetime(h)≥50000
 Compliant StandardCCC(CE)Rosh

Project case:
Short Lead Time Outdoor Die-Cast Rental LED Display

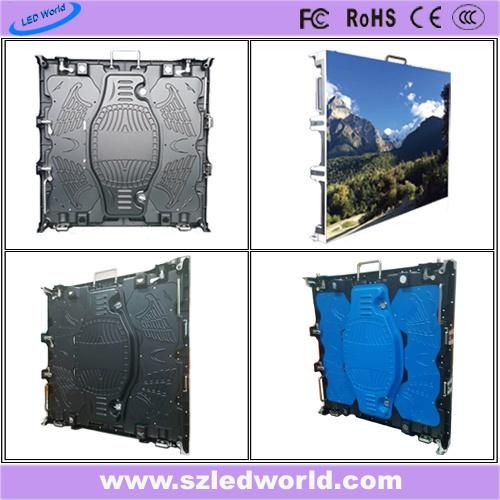

Product detail:
Short Lead Time Outdoor Die-Cast Rental LED Display
workshop and package:
Short Lead Time Outdoor Die-Cast Rental LED Display

Short Lead Time Outdoor Die-Cast Rental LED Display
