Outdoor Waterproof P8mm Perimeter Stadium High Brightness Full Color Advertising LED Display Panel
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
NO.
Parameters
Specifications
1
Model:
F1pro
2
Pixel Pitch (mm):
8
3
Physical Density (dot/m2):
15625
4
LED Configuration:
1R1G1B
5
LED Type:
SMD3535
6
Module Size (mm x mm):
320x160
7
Module Resolution (PX x PX):
40x20
9
Drive Mode:
1/5 Constant Current Drive
10
Cabinet Size (mm x mm):
960x960mm
11
Cabinet Resolution (PX x PX):
120x120
12
Cabinet Material:
Die casting aluminum magnesium alloy
13
Cabinet Weight
32KG
14
Viewing Angle (Deg):
H: 140 / V: 140
15
Brightness (cd/m2):
6000
16
Grey Scale:
14bit
17
Refresh Rate (Hz):
1920
18
Power Consumption (W):
MAX.: 750 / AVE.: 260
19
Color (M):
>16.7
20
Input Voltage (V):
AC 100V~240V+/-10%
21
Refresh Frame Frequency (Hz):
60
22
Protection Level:
IP65
23
Working Temperature (ºC):
-30°- +70°
24
Operation humidity (RH):
10%-95%
25
Controller
Novastar
26
Certificates:
CCC ,CE,RoHS,FCC

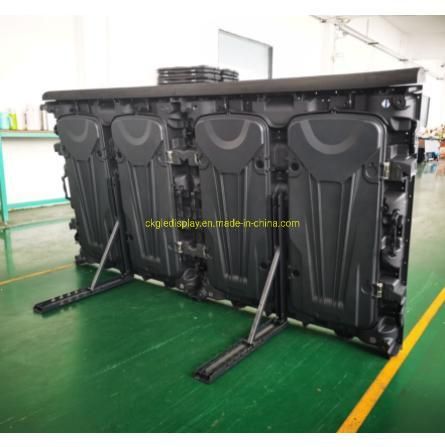

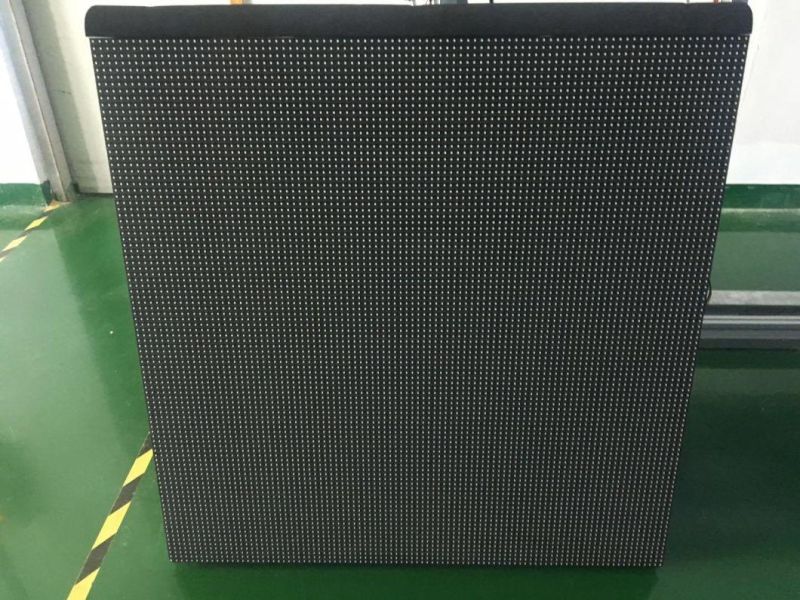

PRODUCT PICTURES:

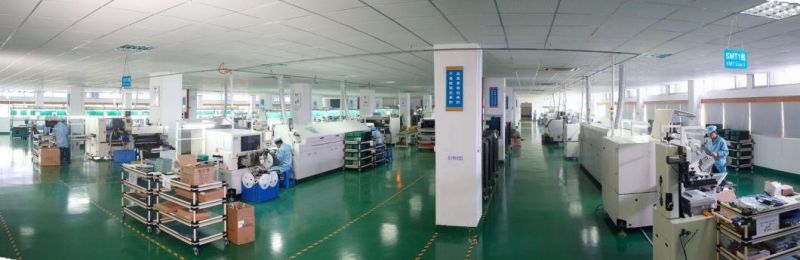

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

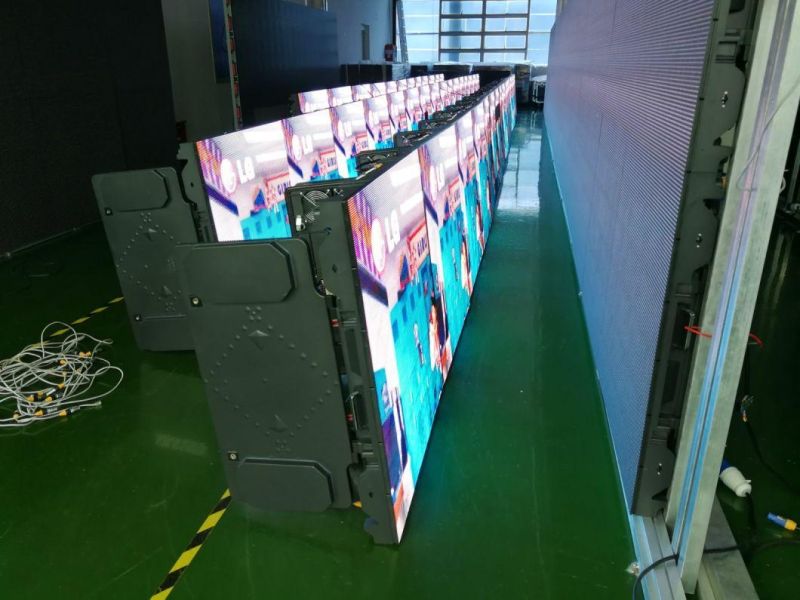

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms

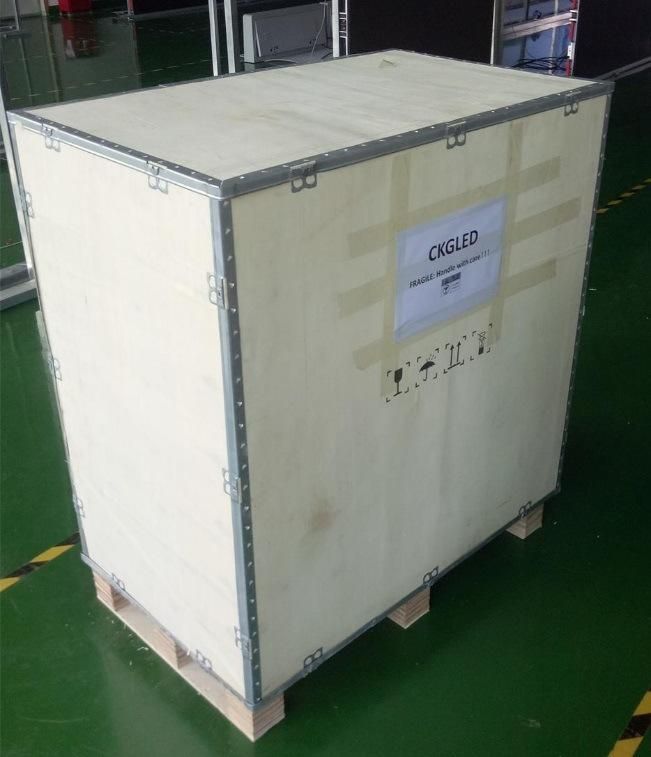

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
