Basic Info.

Model NO. CP15-31D Pixel Density 2048 Dots/M2 Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Control Mode Synchronous Display with Control PC by DVI Control System Novastar, or Linsn, or Colorlight, or as Required. Display Content Video, Picture, Cartoon, Graphics, Texts.etc. with Video Processor Video,VGA,HDMI,DVI,SDI/HD-SDI/3G-SDI Pitch Option P15.625mm, P20mm, P25mm, P31.25mm Cabinet Size 500mm*1000mm Transparency 70% Transport Package Wooden Box Specification CE, ROHS Trademark SENY Origin Shenzhen, Guangdong, China HS Code 8528591090 Production Capacity 100000

Product Description

High Transparency DIP Outdoor Full Color Curtain Display Smart LED Grille Screen (CP15-31D)
Main features:
1. Transparency 70%
2. Light weight
3. Easy install
4. Good quality/price ratio

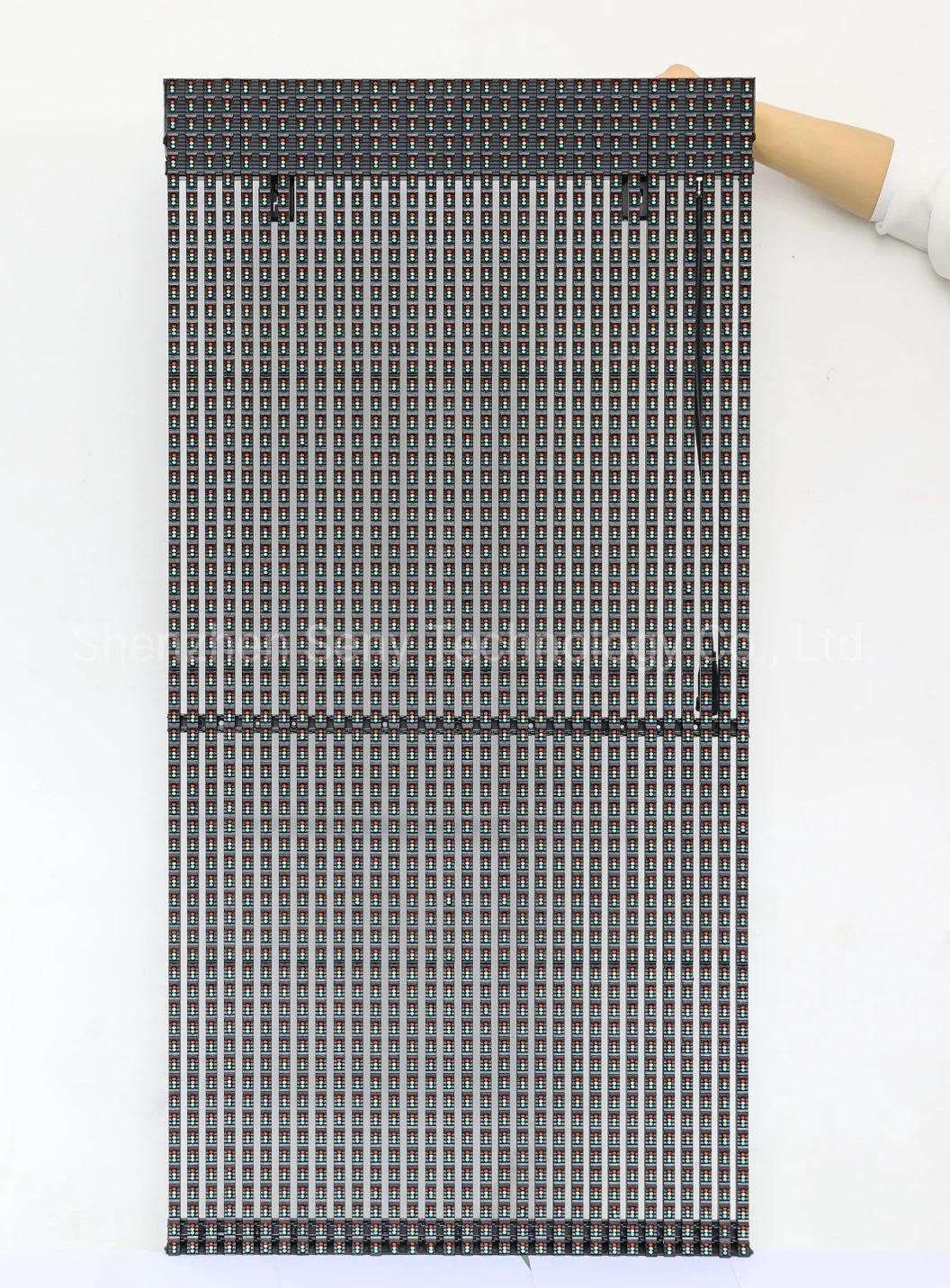

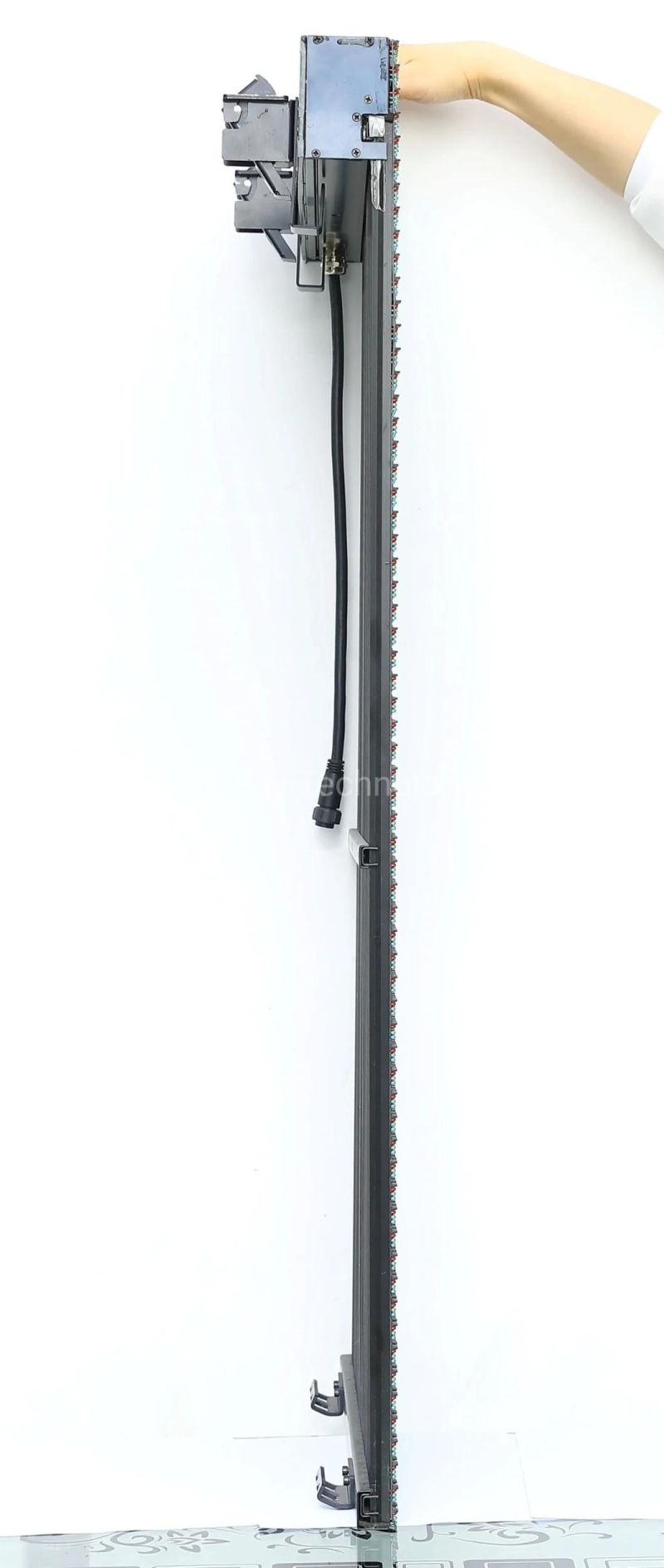

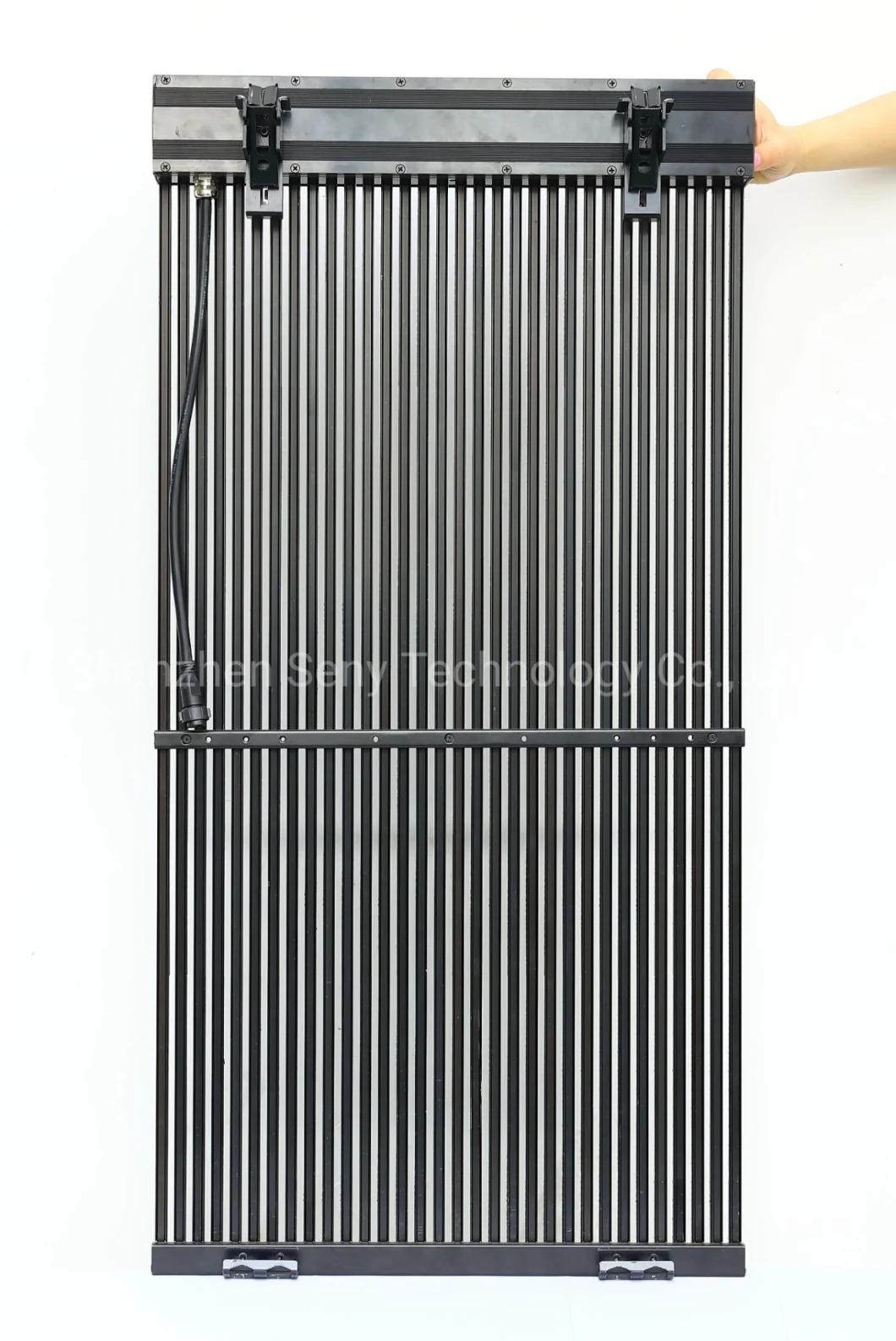

Product Photo:



 Technical parameter:

Item	Parameter	Parameter	Parameter
Pixel pitch (mm)	Horizontal 15.625  Vertical 15.625	Horizontal 31.25  Vertical 15.625	Horizontal 31.25mm - Vertical 31.25mm
Type of product	CP15-15D	CP15-31D	CP31-31D
Unit cabinet size	(W) 500mm x (H)1000mm x (T)67mm	(W) 1000mm x (H) 500mm x(T) 67mm	(W) 500mm x (H) 1000mm x(T) 67mm
Pixel composition	DIP 346 (1R1G1B)	DIP 346 (1R1G1B)	DIP 346 (1R1G1B)
Resolution	4096 dot/m2	2048 dot/m2	1024 dot/m2
Unit cabinet size	500mm(W) X 1000mm(H)	1000mm(W) X 500mm(H)	500mm(W) X 1000mm(H)
Unit cabinet pixels	2048 dots	1024 dots	512 dots
Unit cabinet  resolution	32 dot(W) X 64 dot(H)	32 dot(W) X 64 dot(H)	16 dot(W) X 32 dot(H)
Unit cabinet weight	10 kg/unit	15 kg/unit	6.5 kg/unit
Cabinet weight	20 kg/m2	15 kg/m2	13 kg/m2
Unit cabinet thickness	6.7cm	6.7cm	6.7cm
Installation thickness	12.7cm (including the frame thickness 6cm)	12.7cm (including the frame thickness 6cm)	12.7cm (including the frame thickness 6cm)
Max consumption	450 W/m2	450 W/m2	350 W/m2
Average consumption	135 W/m2	135 W/m2	105 W/m2
Screen brightness	≥8000 CD/m2	≥7000 CD/m2	≥6500 CD/m2
Gray lever	14 bit	14 bit	14 bit
Color temperature	6500-9300K	6500-9300K	6500-9300K
Brightness adjustment	0-255 degree	0-255 degree	0-255 degree
View angle	Horizontal  ≥110°  vertical ≥70°	Horizontal  ≥110°  vertical ≥70°	Horizontal  ≥110°  vertical ≥70°
The best view distance	15-300m	25-500m	30-600m
Frame rates	60Hz	60Hz	60Hz
Control mode	Synchronous mapping/Asynchronous control	Synchronous mapping/Asynchronous control	Synchronous mapping/Asynchronous control
Drive mode	Constant current,static	Constant current,static	Constant current,static
Power source voltage	AC 85-250V	AC 85-250V	AC 85-250V
Life span	100000 hours	100000 hours	100000 hours
Cooling mode	structure-enhanced,natural convection	structure-enhanced,natural convection	structure-enhanced,natural convection
Strip width	9.8mm	9.8mm	9.8mm
Strip material	aluminum 6061	aluminum 6061	aluminum 6061
Transparent rate	0.37	0.7	0.7
IP rate	Double-side IP67	Double-side IP67	Double-side IP67
Operating/Storage Temperature	-35 ~ + 80°C /  -55 ~ + 120°C	-35 ~ + 80°C /  -55 ~ + 120°C	-35 ~ + 80°C /  -55 ~ + 120°C
Installation Frame material	2.0mm cold-rolled galvanized steel sheet	2.0mm cold-rolled galvanized steel sheet	2.0mm cold-rolled galvanized steel sheet
Installation type	quick installation  Tool-free	quick installation  Tool-free	quick installation  Tool-free
Fire resistance	Full V0 flame retardant	Full V0 flame retardant	Full V0 flame retardant
Power	redundant power supply	redundant power supply	redundant power supply
Maintain  speed	10S/unit	10S / unit	10S / unit
Maintain  mode	Front side and Back side	Front side and Back side	Front side and Back side

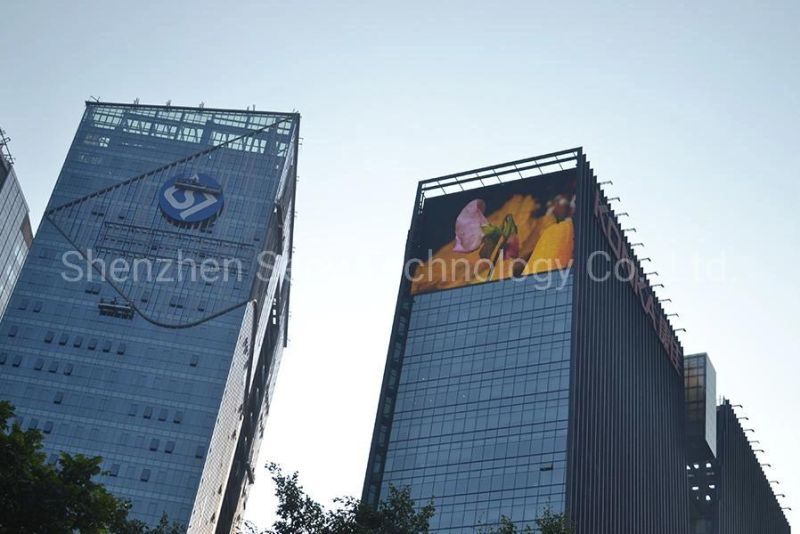

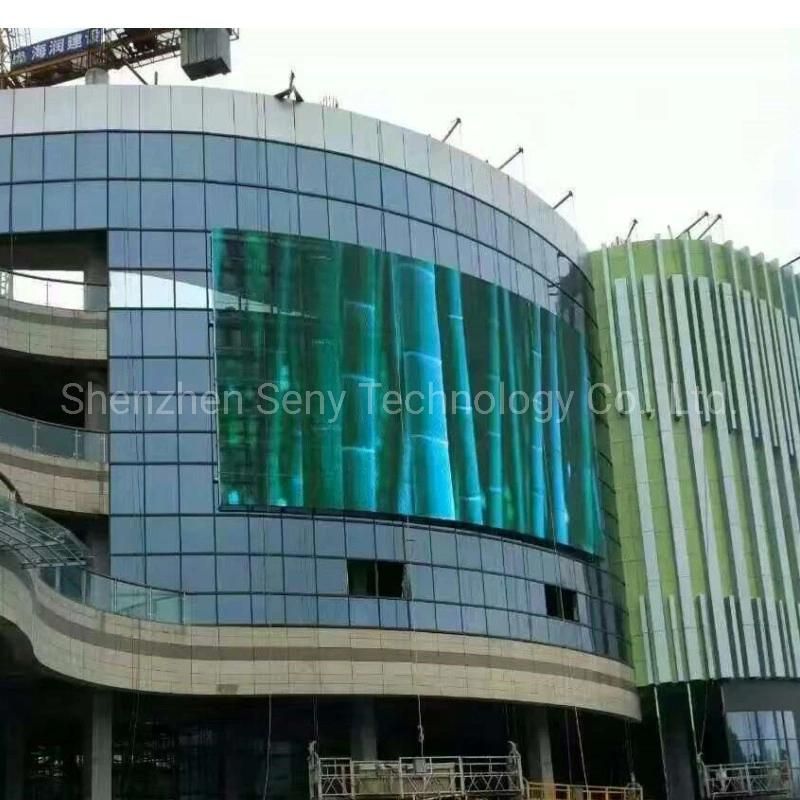

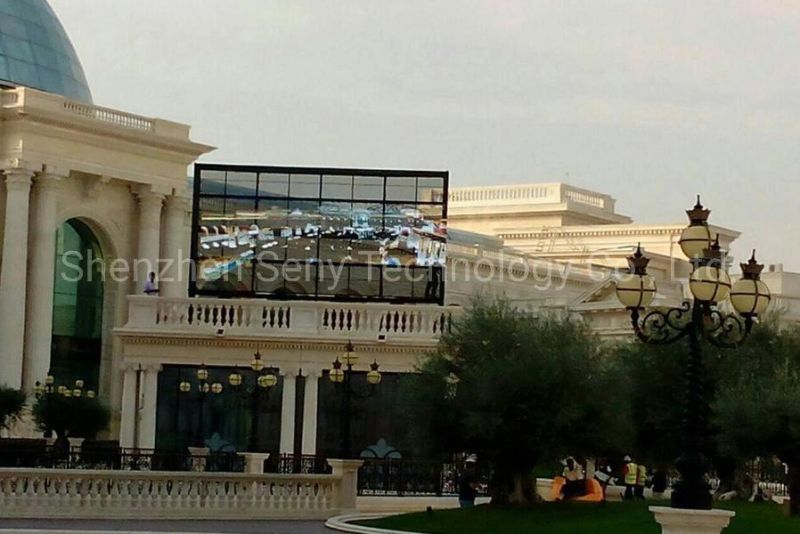

Applications:


Certification:

Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.

After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
