Indoor P3  LED Display1HD small pixel LED displayP1.5625 /  P1.667/  P1.923/  P2             2Hot rental LED displayP3 /P3.91 /P4 /P4.81 /P5.95 3Outdoor fixed LED displayP4/P5 /P6 /P8 /P10 /P16 /P204LED Control SystemNova Star / LINSN /Colorlight /Listen 5LED Nation Star /Kinglight led Lamp /Epistar led chip from Taiwan6IC MBI5124/5153  IC 7Power supply Meanwell / G-energy 8Cabinet kind Iron /Aluminum /Die-casting /Fiber Aluminum            1Pixel Pitch 3 mm 2Cabinet Size 576*576MM3Pixel density 111,111 dots/m2 4Color temperature6000K--8000K5Viewing angleH:140;V:1406Dead LED lamp rate≤0.1‰7Non-Flatness<0.2mm8Module interval<0.2mm9Packaging Gross Weight(KG)35 kg (Estimated data)10Packaging dimension1m*1m*1.2  m (6 cabinet in one case)11Maximal power/m2 600 W/m212Brightness adjusted256 grade by auto-optic/color &8 grade by hand13Input signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etc14Life-span ≥1 00,000 hours15MTBF 5,000 hours16Frame frequency25 - 60 Hz / s17Refresh rate≥2,000 Hz  / s18Single Input(with video processor)HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.19Control Distance120 m (no repeating); Optical fiber
transmission: 0.5km- 10km20Systems Operating PlatformWindows XP, Win 7, Win8, Win8.1, Win10
2.Functions :

1. High refresh rate: With NOVA STAR  control system, no scanning line when photographed
2. High gray level: 256 RGB  each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp  Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing  time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer


3.Product Details :

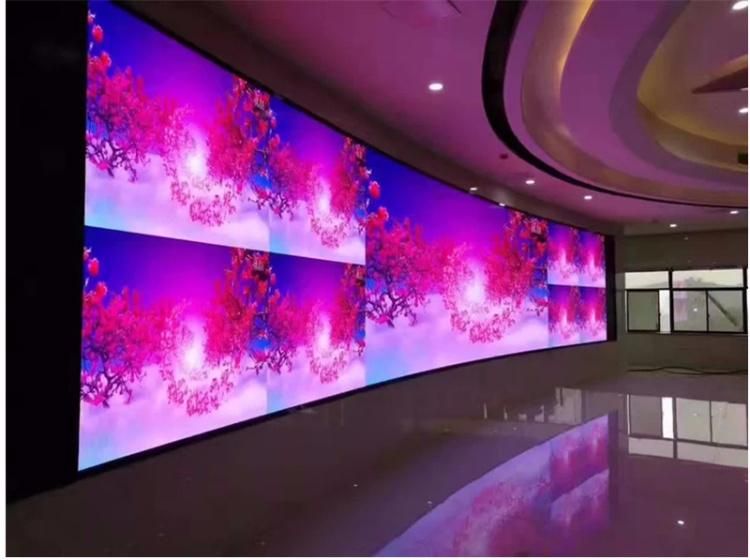

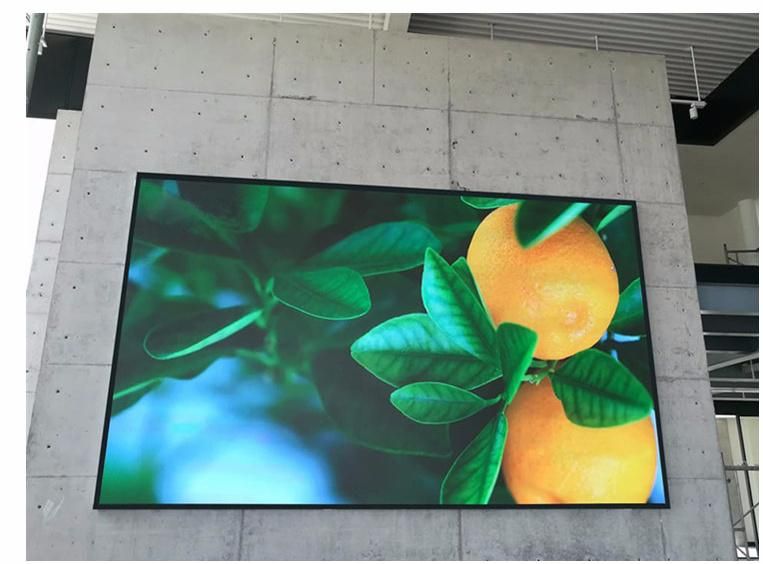

Led display using effect

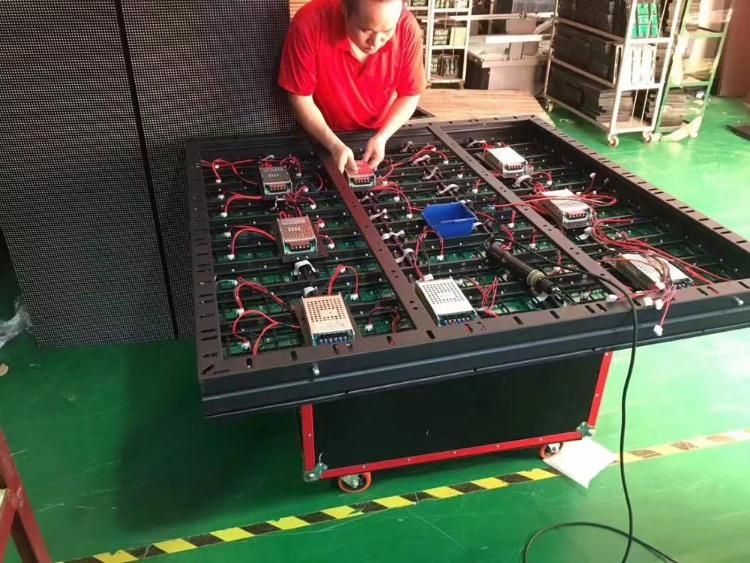

putting on the power supply and receiving card

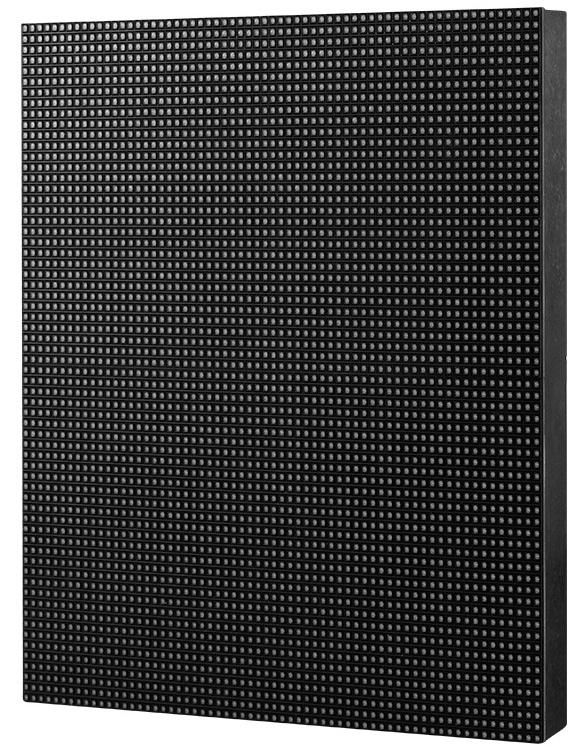

module size: 192mmx192mm


4.Application:


Banquet Hall


Shopping mall advertising


5.Our Factory and Our Service :

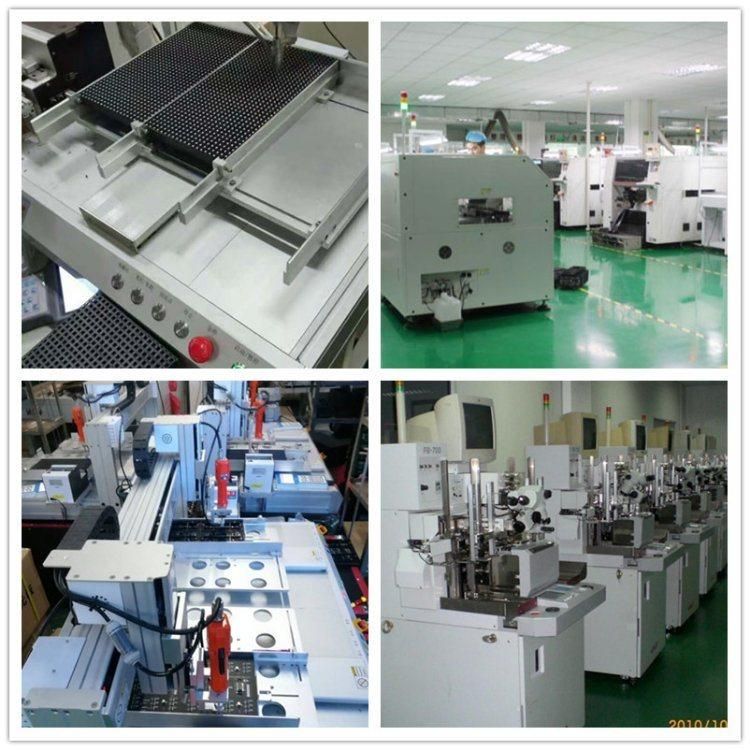

SMT room import machine
A96 Hours Serious Testing Time B72 Hours Display Testing TimeC24 Hours Module Testing Time D24 Hours After-sales online Service E12 Hours  LED Inquiry Response TimeF8 years Professional LED display factory G5 years Excellent Domestic Big Government LED Designer H3 years Expanding International  Trade Experience

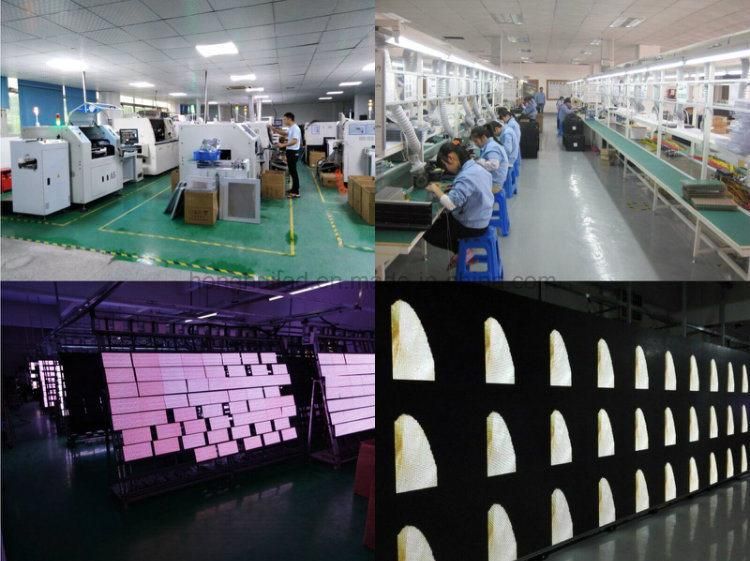

Module and display aging test workshop


6.Our HONGHUI Advantage:1).Price :We can give you the most satisfying price ,because we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry .Once the market change ,we will flexibly adjust the price and timely notify everyone of you about our update price. YOU WANT = WE DO .First time trial order will let you strongly shake hands with us . We warmly welcome any kind quality inspection process from your team .

2).Quality : We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .

3).Production : Support Any Kind Special Customized Design . YOU NEED =WE DESIGN .We design exactly the same material you mentioned with our team in the sales contract and business negotiation process . We are direct factory ,if your led project time is definitely fixed , with no any change , We will arrange your order firstly to catch up with your time . MEET YOUR TIME = SUPPORT OUR TEAM .

7.CERTIFICATE :


8.FAQ :

Question 1: How can I trust your HONGHUI LED factory ?

Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 8 years . In the past 8 years , we delvelop so well. Tomorrow and future , we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product .

Quesiton 2: If I need led very urgently ,how fast can you finish the goods ?

Answer:How fast you want ?Three days ?One week ? Definite shipping date ?  We produce LED everyday .We have some led modules in stock . Put the most urgent and important order at the first place . You are important to us .Surely to establish first-time good relationship . We do must finish it at FAST ROCKET TIME.

Q3:Is it easy to install this led display ?

Answer : If you are new to LED ,we will help you to know led from ZERO to Professional . We have installation manual book and professional engineering team to guide you . To help you better understand LED is to make us get your earlier trust . If you knew LED before,we can learn from each other. We could be Future Shaking-hands  Partners . Our engineering team remote help is ready for you 24-hours .
