Model No: R0X0GW10E Brand:  Input Voltage: DC 24V LEDs: 2835 LED Total Wattage:

14.4W/M

 Color Temp: 2700K/3000K/4000K/6000K CRI(Ra): CRI>80 Length:100Meters per roll max Luminous flux: 1200-1400LM/M PCB Width: 10mm

 Qty of LEDs:

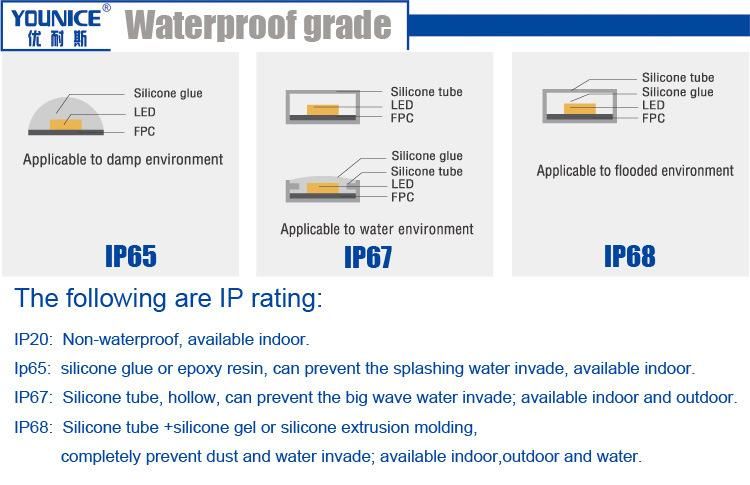

 120LEDS/M Operating Temperature: -20°C ~ 60°C Beam Angle: 120 degree Waterproof Rated: IP20/IP54/IP67 Warranty: 3 Years Warranty Certification: CE, ROHS, cUL, UL listed



Application data:

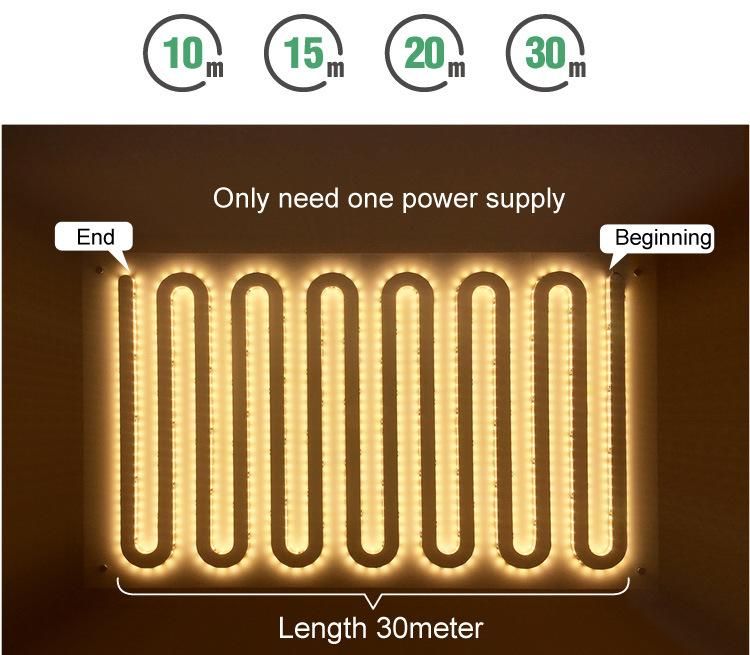

1. Max connection number: 25pcs
2. Distance of modules(wire): 135mm
3. Ambient temperature ta: -25 ~ +50 degree
4. Max. temperature on module tc: 65 degree
5. Storage temperature ts: -40~ +85 degree
6. Risk group( EN 62471: 2008): 1
7. Certification list: CE/UL/ENEC/RoHS

Packing  Information:

 Trade Terms:
1.Payment: Samples or small orders 100% payment advance by Paypal, Western Union, T/T
2.Mass order: T/T 30% advance 70% before shipping
3. Delivery time: Samples/small orders 3-5days Mass order: 7-12days
4.Discount can provided for mass orders

Shipping:

1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery port: Shenzhen.

Noted:
_    The power cable should meet the actual maximum current and power.
_    All the end point of wire should be treated with waterproof;
_    Pay attention to the maximum number of connections, prohibit overloading.
_    All the power supply must has the corresponding certification.
_    Our company reserves the right of final interpretation.
_    Subject to change without notice.
