Cheap Price High Quality OEM Outdoor IP65 Waterproof 20W 40W 60W 80W 120W All in Two SMD LED Solar Street Lamp with High Efficiency Panel
Jiangsu Inlux Solar Lighting Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum
- Light Type：Solar
- Color Temperature：Cool White
- Power：≥30W
- Technics：Chrome-plating
Base Info
- Model NO.：AIT5
- Illumination Time：12h
- Cell Type：LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP67
- Certification：CE, ISO9001
- Voltage：12,24V
- With Light Source：With Light Source
- Application：Street, Road, Highway, Pathway, Sidewalk, Park
- Color：Grey
- Design：LiFePO4 Battery Is Built in Lamp Fixture
- Body：Aluminum Alloy
- Pole Height：4-12m
- Panel：Single,Poly Crystalline
- Transport Package：630*310*106mm
- Specification：20W ~120W
- Trademark：INLUX SOLAR
- Origin：China
- HS Code：9405500000
- Production Capacity：200000 Sets, Year
Description
Lighting ParametersLamp Power 30W-120W Luminous Flux Up to 16000 lumens Color Temperature 3000K~ 6000K Optical Distribution Bat Wing, TypeII Beam Angle 150° CRI >70 Lithium Battery Parameters Lithium Battery Types lithium iron phosphate (LiFePO4) battery / Soft Pack Li-ion Battery LiFePO4 Lithium Battery 1229WH (LiFePO4 Lithium Battery) / 1665WH (Li-ion Lithium battery) Life Span > 10 years (LiFePO4 Lithium Battery) / > 6 years (Li-ion Lithium battery) Controller Parameters Controller MPPT controller/ PWM controller System Voltage 12V/24V Max. Charging Current 5A/10A/15A/20A PIR Sensor Optional Protection Functions Short-circuit Protection, Reverse Discharging Protection, Polarity Protection, Lightning Protection, Low Voltage load cut-off protection, Over-charge Protection Physical Parameters Lamp Fixture High-Pressure Die-Casting Aluminum. Corrosion Resistant Lamp Arm Adaptor Diameter 55-65mm Dimension of Product 720*340*135mm Working Mode Working Hours per Night From Dusk to Dawn (adjustable) Continues Rainy Days Backup >3 days (adjustable) Environment Requirements Charge Temperature 0-55ºC Discharge Temperature -20-55ºC Storage Temperature 0-50ºC Installation Recommendations Installation Height 6-12Meters Spacing Distance 20-60 meters 12 Lighting hours/Night + Automatic Time Control.

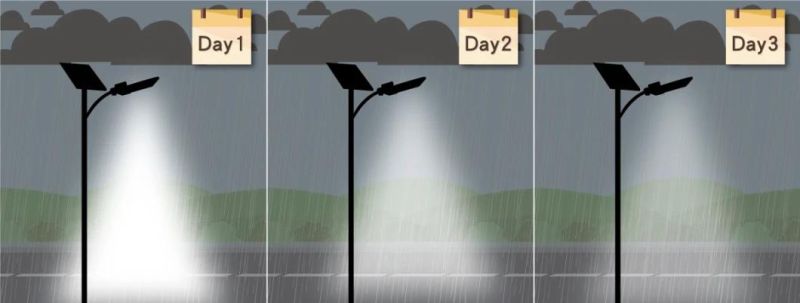

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

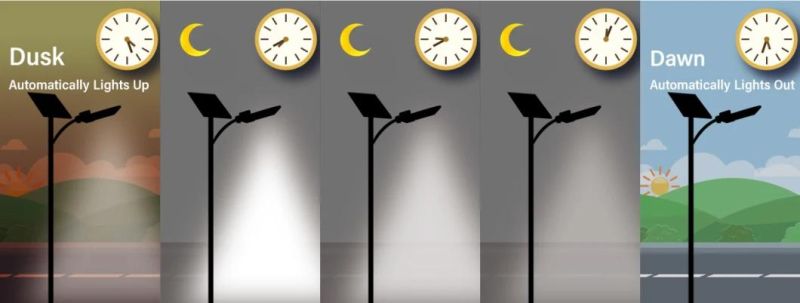

WORKING MODE
12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
