Basic Info.

Model NO. 6mm Pixel Density 27777 Dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 192X192 mm Module Resolution 32X32dots Cabinet Size 576X576X88mm Cabinet Resolution 96X96dots Screen Brightness 6000nits Refresh Rate 1920Hz Protection Grade IP65 Compliance Ce/CCC/RoHS Service Front/ Rear Life Span 100000hours Input Voltage AC 100~240V LED Type SMD3535 Maintenance Rear Service View Distance 6~60 M View Angle H:140/V:140 Transport Package Flight Case Specification 576*576*88 mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

RS SERIES FEATURES:

· IP65 design: good for any outdoor event environment.

· High screen brightness : 5500nits.

· Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

· Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

PRODUCT SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model	RS6
2	Pixel Pitch(mm)	6
3	LED encapsulation	SMD3535
4	Screen Resolution(dots/sqm)	27777
5	Scan Method	1/8
6	Module size(mm)	192*192
7	Cabinet size(L*W*H)	576X576X88mm
8	Cabinet(Kg)	9.8KG
9	Viewing angle	H:140° V:140°
10	Grey Scale	14 bits
11	Refresh rate(HZ)	≥1920
12	Brightness(nits)	≥5500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/sqm)	235
15	MAX. power consumption(W/sqm)	700
16	IP grade	Front:IP65/  Rear:IP54
17	Controller	Linsn/Nova
18	Working humidity	10~95%RH
19	Storage humidity	10~95%RH
20	Working temperature	-30ºC~60ºC
21	Storage temperature	-40ºC~70ºC

  Package:



Certificates:

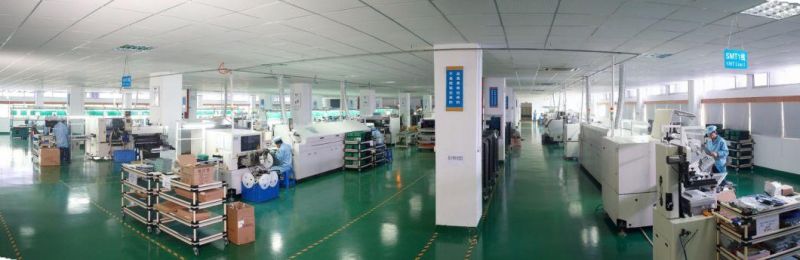

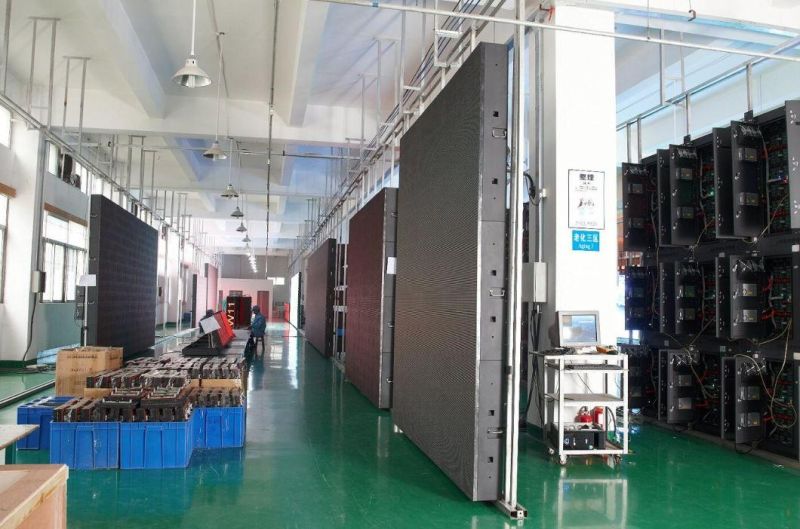

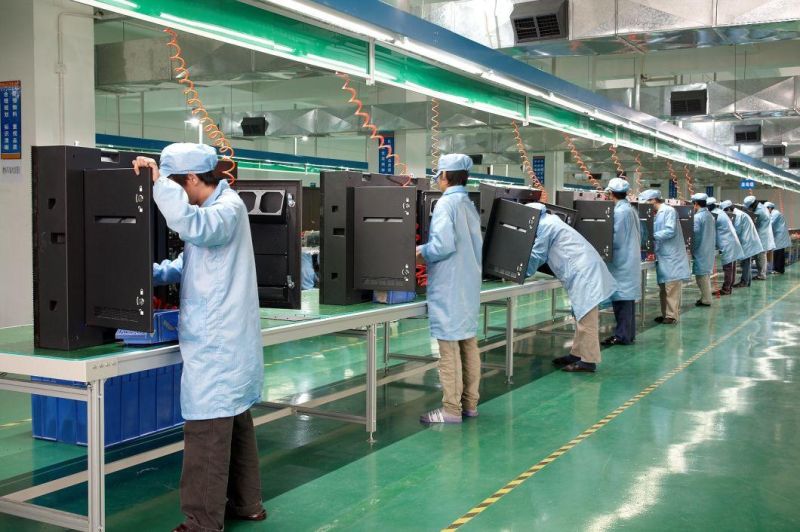

Factory:

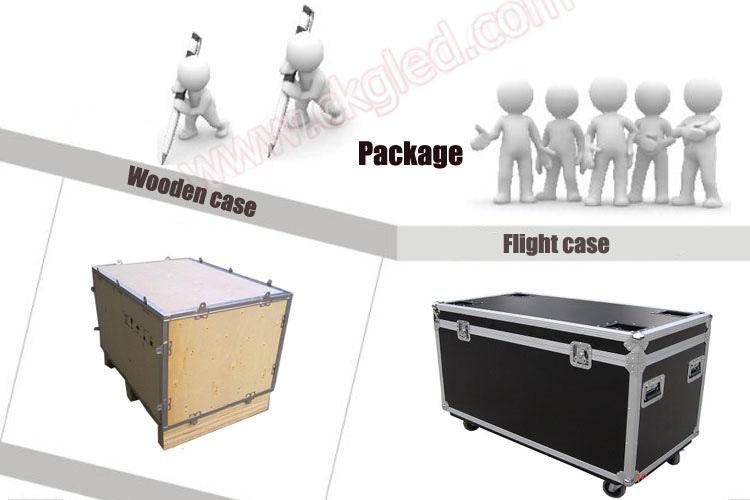

Packing

For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing

For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing

One wooden case including 2 cabinets, one flight case including 6 cabinets

Shippment

By air or sea, FOB shenzhen

UPS/DHL/FedEx/Express(door to door)and so on

Delivery time

Within 15 days counting from 30% prepayment arrived at CKGLED account.

Payment term

T/T(30% deposit, the remained 70% payment made before factory shipment )

Quality assurance

We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing,

waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure

transportation and quality products.


Pre-Sales  Service

--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service

--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service

--Two-year quality warranty with lifelong maintenance.

--Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

--Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.

--Spare parts: necessary spare parts are provided together with products to customers.

--Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

--Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

--Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
