• Model NO.：ISSL-BRZ-60W
• Technics：Electroplating
• Illumination Time：60 Hours
• Cell Type：LiFePO4 Lithium Battery
• Charging Time (H)：6 Hours
• Usage：Garden, Street, Highway
• IP Rating：IP66
• Certification：CE, RoHS, TUV-Sud
• Voltage：12,24V
• With Light Source：With Light Source
• Acutal Lumen Efficiency：180lm,W
• Batteries Capacity/Type：12.8V,30ah(384.0wh),LiFePO4 Lithium
• Discharge Time (Dim Mode)：More Than 60h
• Discharge Time (Bright Mode)：More Than 12h
• Lighting Time：5~7 Cloudy,Rainy Days Autonomy
• Full Charge Time by Solar：6 Hours at 1000W,Square Meter, 25 Celsius
• Monocrystalline Solar Panel：20% Conversion Efficiency
• Batteries Life-Span：8+ Years (2000 Circles)
• Charge Controller：MPPT(IP68)
• MPPT Tracking Efficiency：99.9%
• Sensor：Microwave Radar (PIR &Timing as Optional)
• Smart Function：Remote Control,Iot, Motion,Light Sensor,Timer
• Viewing Angle：140,Customized Angles,Ies Type Available
• Mounting Height：7~8 Meters
• Transport Package：Customary Carton, OEM Acceptable
• Specification：1090*355*55mm; 11.2 kgs(N. W)
• Trademark：ESAVIOR , OEM
• Origin：China (Mainland)
• HS Code：9405409000
• Production Capacity：50, 000 Sets,Month

LONG LIFE-LED-STEET light fixtures Extremely 10000+ hours long life reduces re-lamp frequency.

1. TECHNICAL SPECIFICATIONS



   TECHNICAL SPECIFICATIONS

   LED Light Source

   Rated Power

   12V/ 60W (36LEDsx3 modules)

   LED Brand

   3030 (LED Lumen: 195lm/W)

   Lumens(LM )

   5400-6000lm

   Life-span

   100,000 hours

   Color Temp. (CCT)

   5000K (2700~6500K Full range available)

   CRI

   >70

   Viewing A ngle

   140° (Customized Angles & IES Types Available)

   Solar Panel

   Power

   18V/70Wp (High Efficiency Mono PV)

   Life-span

   25 years

   Batteries

   Capacity/Type

   12.8V/30AH (384.0WH) / LiFePO4 Lithium

   Life-span

   8+ years (3000 circles @60% DoD)

   Controller

   Type

   MPPT / IP68/IoT Online Monitoring as Optional

   Sensor

   Microwave Radar (PIR & Timing as optional)

   Full Charge Time





   Discharge Time

   By Solar

   6 hours (STC: 1000W/Square meter, 25ºC )

   Dim Mode

   >60 hours

   Bright Mode

   >12 hours

   Working Temp.

   -30ºC~+80ºC

   Mounting Height/Brackets

   7~8 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps

   Space Between Lights

   30~35m

   Materials

   Aluminium Alloy

   Certificate

   CE / ROHS / IP66/ IK08/ TÜV-SUD ISO9001/ ISO14001

   Warranty

   5 years




   Applications

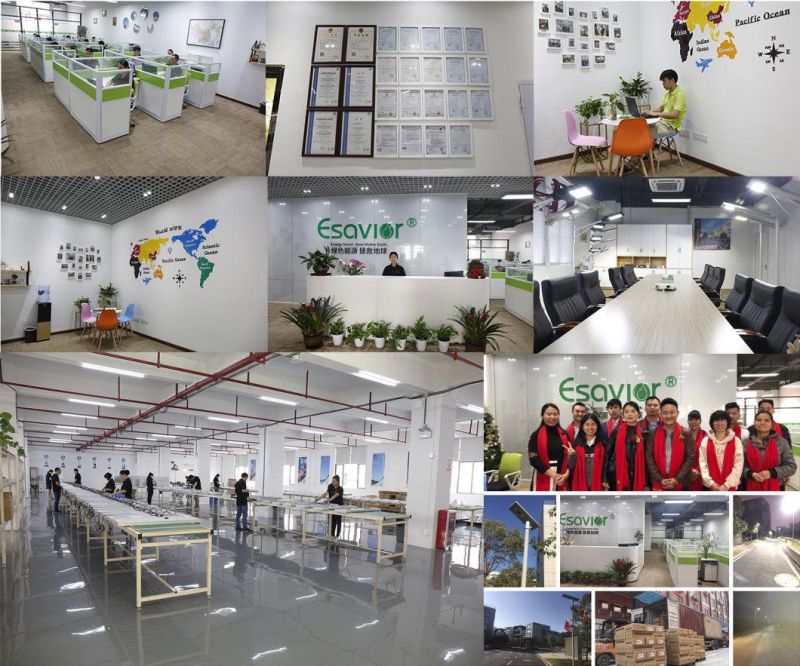

   • Company Profile




     Certificates Patents Awards

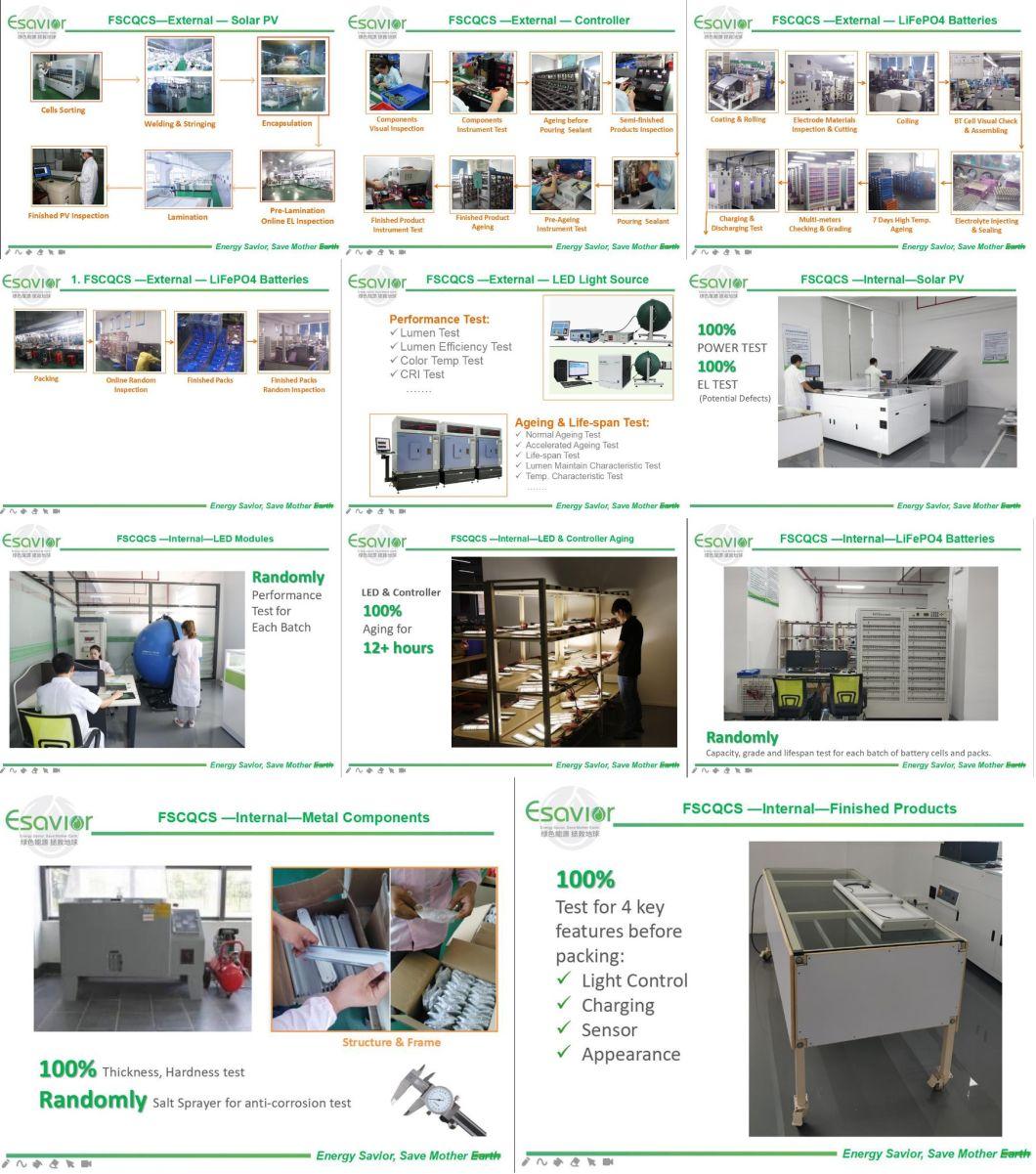

     Full Supplier Chain QA System



     Communications & Cooperations

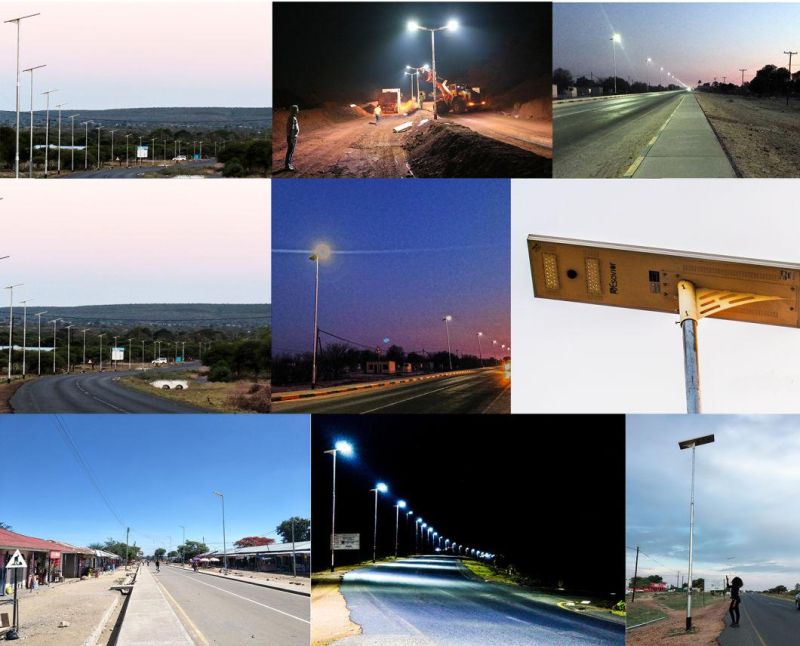

     ESAVIOR'S Projects



     Costomers' Visits





     RFQ:

     Q1: Does the lamp light on automatically?

     A: Yes, it will light on automatically at darkness no matter which mode except "OFF".

     Q2: Can I order a samples for solar street light?

     A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

     Q3: What about the lead time?

     A: 3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

     Q4: Do you offer guarantee for the products?

     A: Yes, we offer 3-5 years warranty to our products.

     Q5: Can the lamp be used in strong wind environment?

     A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

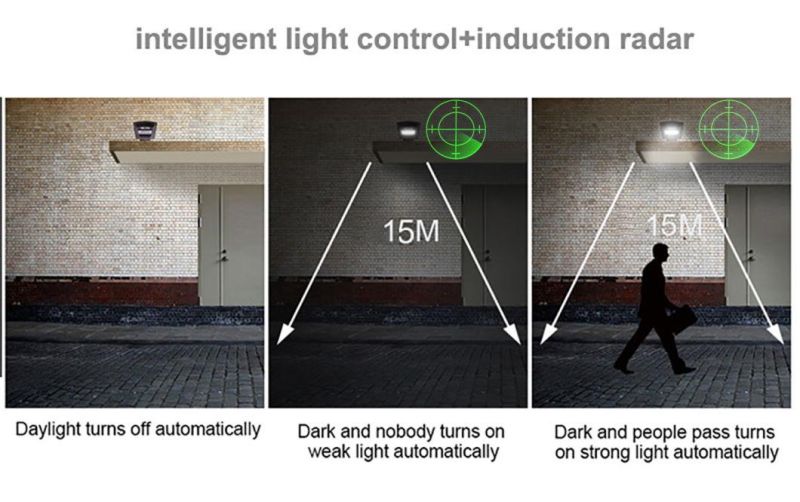

     Q6: What's the difference between Motion sensor and PIR sensor?

     A: Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

     Q7: How to deal with the faulty?

     A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.

     Thank you for your attention!  Welcome to send us inquiry for more information!
