NO.

Parameters

Specifications

1

Model

C1.25

2

Pixel Pitch(mm)

1.25

3

LED

SMD1010

4

Pixel density

640000dots/sqm

5

Scan Method

1/27

6

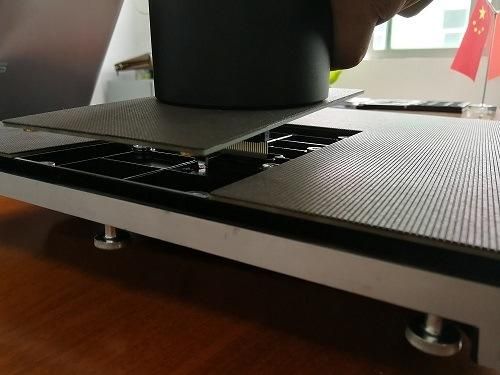

Module size(mm)

200*100

7

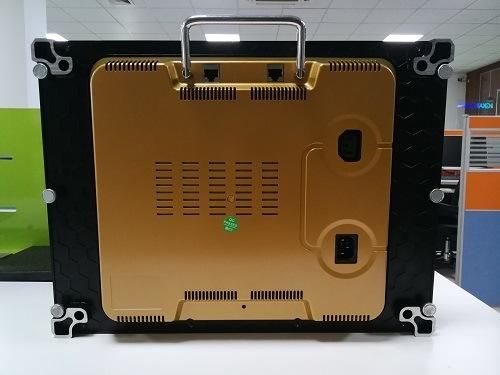

Cabinet size(L*H*W mm)

400x300x80

8

Cabinet material

Die-casting Aluminum

9

Cabinet(Kg)

4kg

10

Viewing angle

H:160°/  V:160°

11

Grey Scale

16bits

12

Refresh rate(Hz)

≥3840

13

Brightness(nits)

≥800

14

Working Voltage(V)

AC 110~220V±10%

15

AVE. power consumption (W/m²)

300

16

MAX. power consumption(W/m²)

600

17

IP grade

IP30

18

Controller

Novastar

19

Maintenance

Front service

20

Working humidity

10~90%RH

21

Operating temperature

-30ºC~70ºC
