Item
Full color advertising outdoor dip P10 led display
 Pixel
Pixel pitch: 3 mm
Pixel configuration:SMD  1R1G1B
Wave length:  Red: 625±2nm  Green: 525±2nm  Blue: 470±2nm
Module resolution: 64×64 pixels
 Module
Module size: 192mmx192mm
Cabinet size:  960mm×960mm×150mm
Cabinet material: fixed Iron or rental steel,aluminum
Gross weight: 25-35kg/sq.m
Module quantity: 25pcs= 5(w) x 5(h)
Power consumption : Max.:600W/m²    Average:400W/m²
Screen parameter
Drive method:  1/16 Constant Current
Brightness: 3500cd/m²
IC driver: MBI5024,From Taiwan
Density: 111111 pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 3M
Viewing angle:  Horizontal:   140°
Humidity(RH): ≤ 90~95%
Working temperature: from -30°C~ +60°C
Working voltage: AC220V/110V±20%
Refresh frequency:  ≥ 1500Hz(Linsn)
Protection grade: IP65
MTBF: More than 10000hrs
Life time: 100,000 hrs

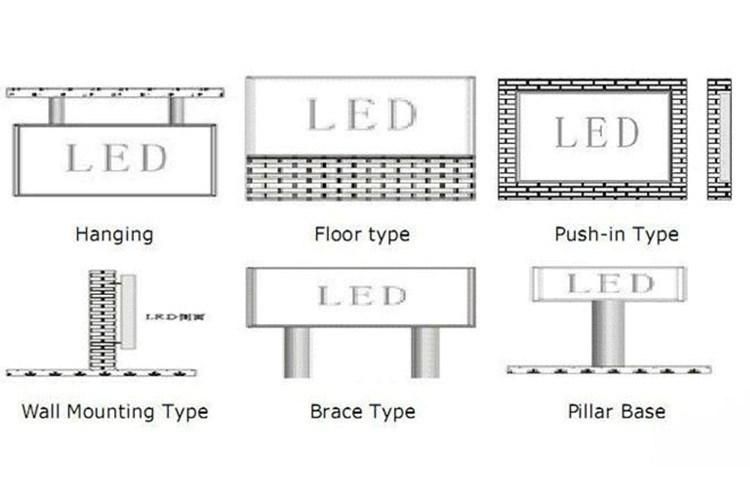

Different Installation



Control System

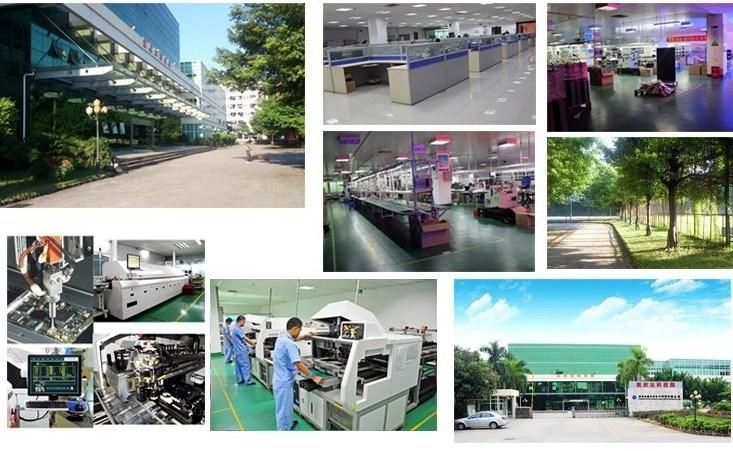

Company Information






Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004,
we have been dedicating to the aim that making high quality products, and have been well integrated with R&D,
production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
