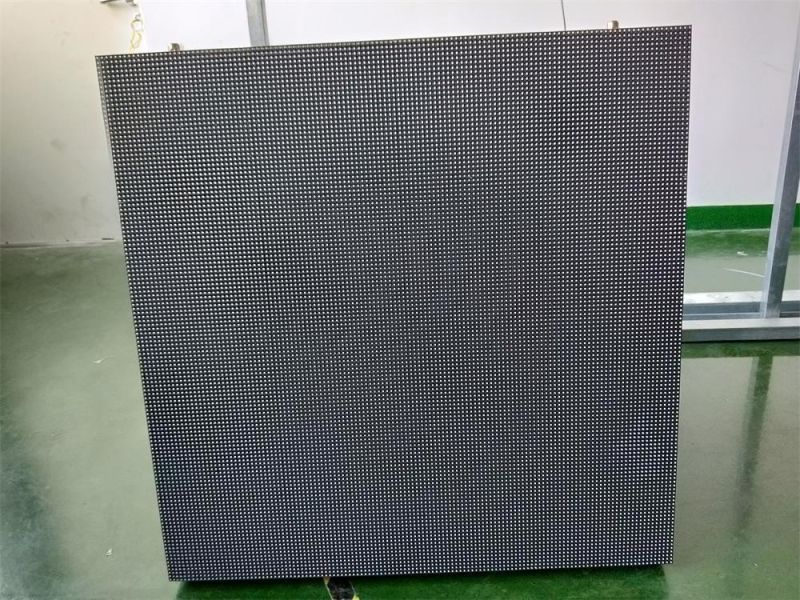

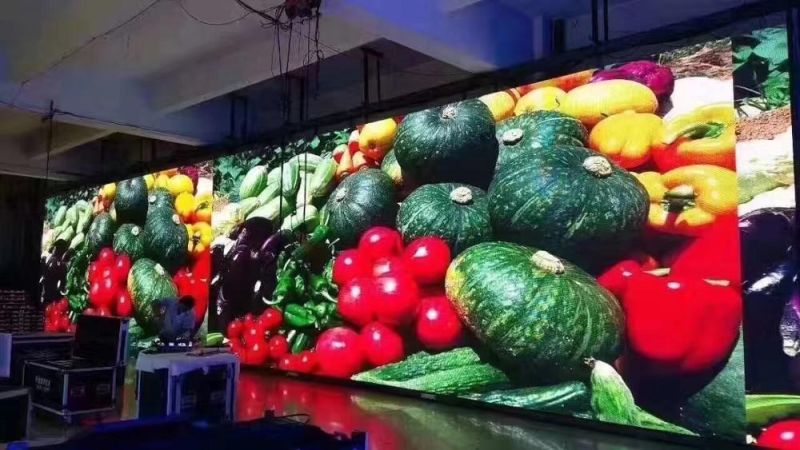

P4 Outdoor Full Color High Definition LED Video Wall
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
Parameters
Drive Mode:
1/8 Constant Current Drive
Horizontal Viewing Angle (Deg):
140
Vertical Viewing Angle (Deg):
140
Brightness (cd/m2):
6000
Grey Scale:
16bit
Refresh Rate (Hz):
1920
Cabinet Resolution (PX x PX):
128x128
Cabinet Max Power Consumption (W):
530
Cabinet Average Power Consumption (W):
177

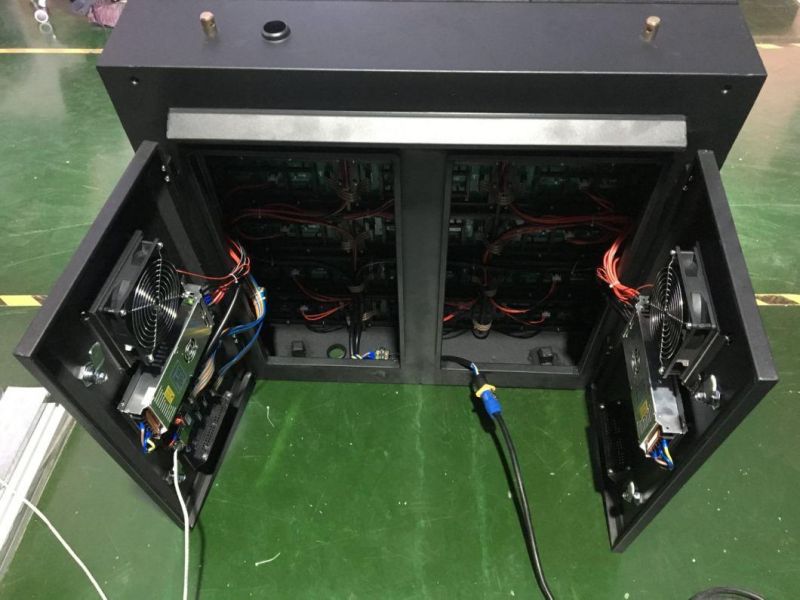

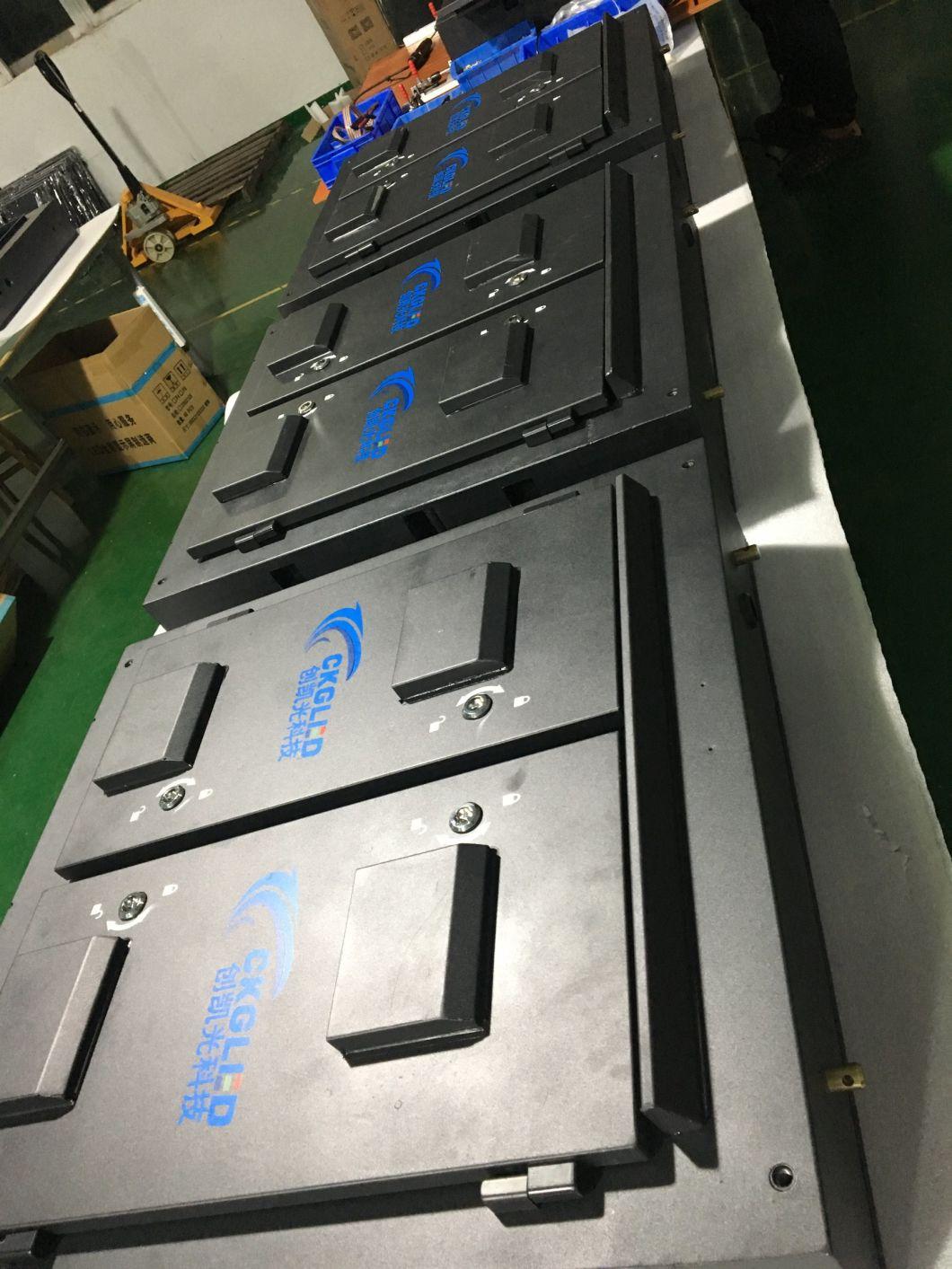

Cabinet Size (mm x mm):
768x768
Cabinet Weight (Kg):
35
Cabinet Thickness (mm):
150
Cabinet Material:
Steel Iron /Aluminum
Color (M):
>16.7
Input Voltage (V):
AC 110V~220V+/-10%
Refresh Frame Frequency (Hz):
60
Protection Level:
IP65
Working Environment:
Outdoor
Working Temperature (ºC):
"-30°- +60°
Operation humidity (RH):
10%-95%
Certificates:
CCC ,CE,RoHS

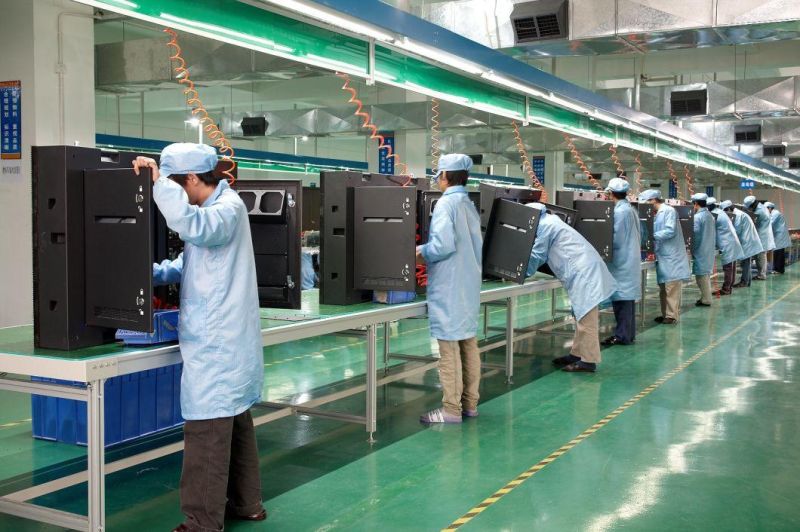

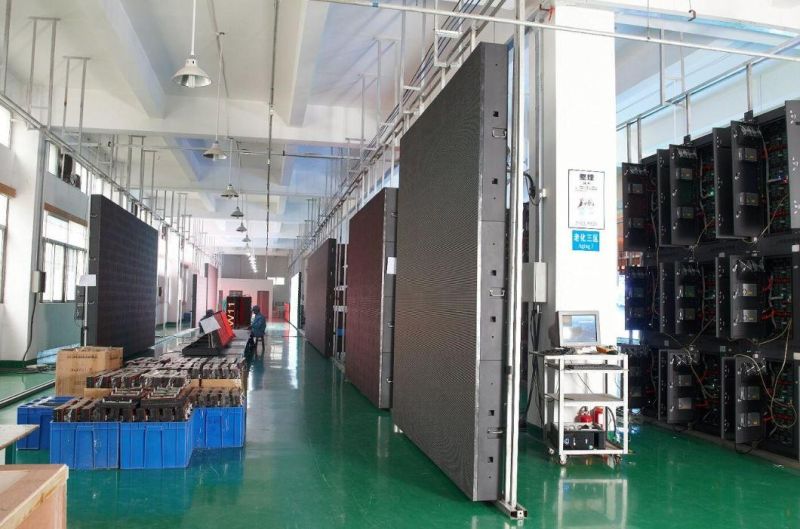

CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

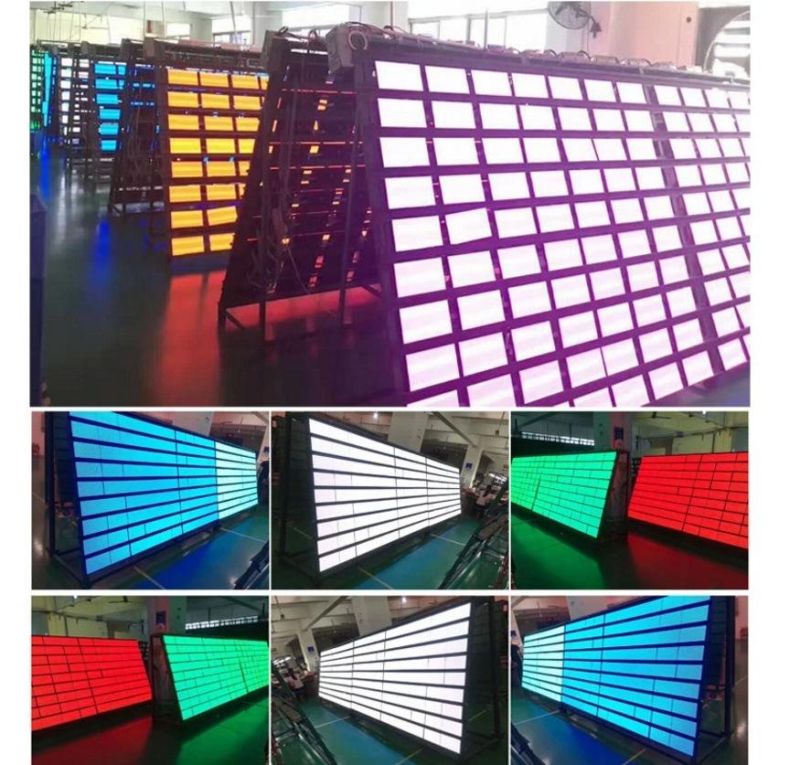

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms

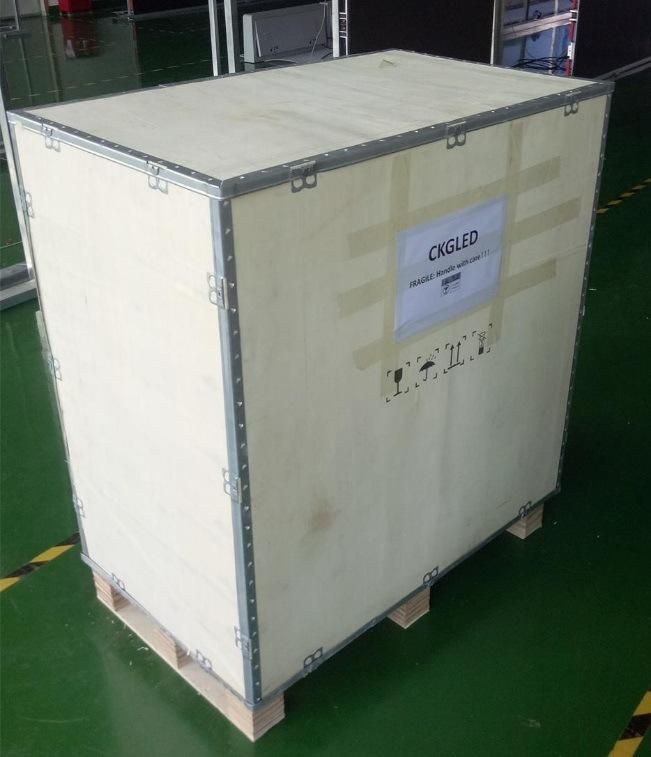

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
