Basic Info.

Model NO. HM24V-SMD2835240 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

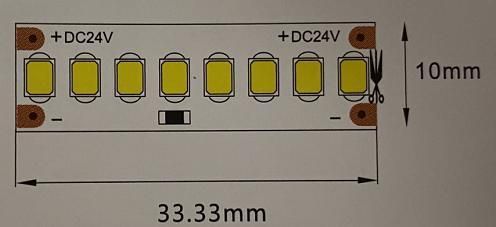

Product Dimension



Optical parameter

LED Type: SMD2835
Color Rendering Index: 80
CCT Range: 2700K, 3000K,4000K,6000K
Beam Angle: 120°
Light Efficiency: 160/165/170Lm/w
Lumen Output/meter: 3456Lm/m (1125Lm/ft)
                                   3564Lm/m (1188Lm/ft)
                                   3672Lm/m (1224Lm/ft)
                                   3780Lm/m (1260Lm/ft)


Electric parameter

Input Current/m: 0.9A/m
Input Voltage: DC24V
Power/M: 21.6W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 240LEDs/m
Size of Section:  33.33mm
LEDs of Section: 8 LEDs


Recommended Profiles

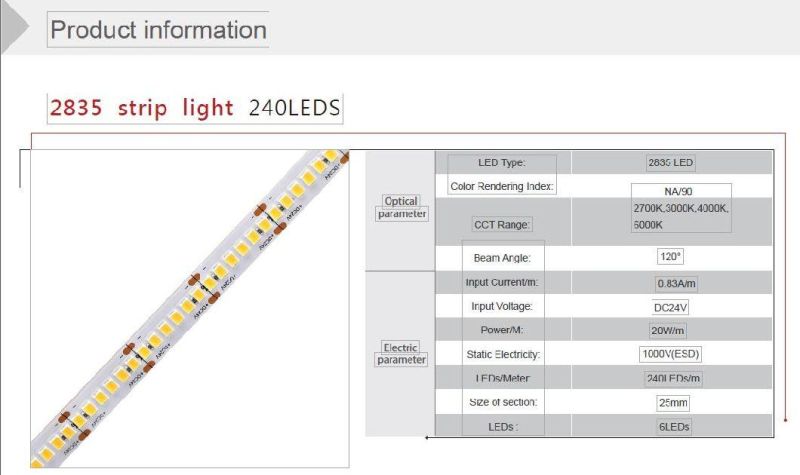

Product Information
