Basic Info.

Model NO. P4.81 indoor display screen System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating 31 Certification CE, RoHS, UL, CCC, ETL Product Name Indoor LED Display Screen Panel Size 250mm*250mm Cabinet Size 500mm*500mm Brightness 1800CD LED Specification 2121 LED Chip Nationstar/Kinglight Warranty 2 Years View Angle Horizontal120°/Vertical20 Humidity 10%~95% Life Span 100000 Hours Refresh Frequency 1920Hz/S LED Encapsulation Nationstar, Kinglight Drive IC Mbi5124, Icn2037 Working Temputure -25 -- +55 Power 110V-240V Transport Package Flight Case Packing Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8531200000 Production Capacity 10000spm/Month

Product Description

 P4.81 indoor led display screen for stage

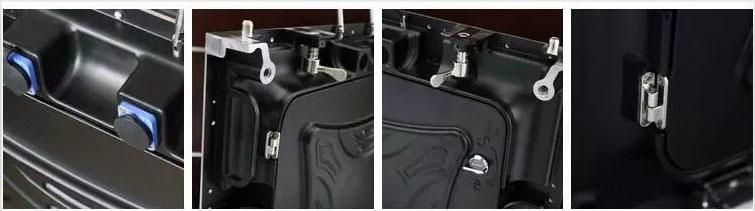

Cabinet detail:

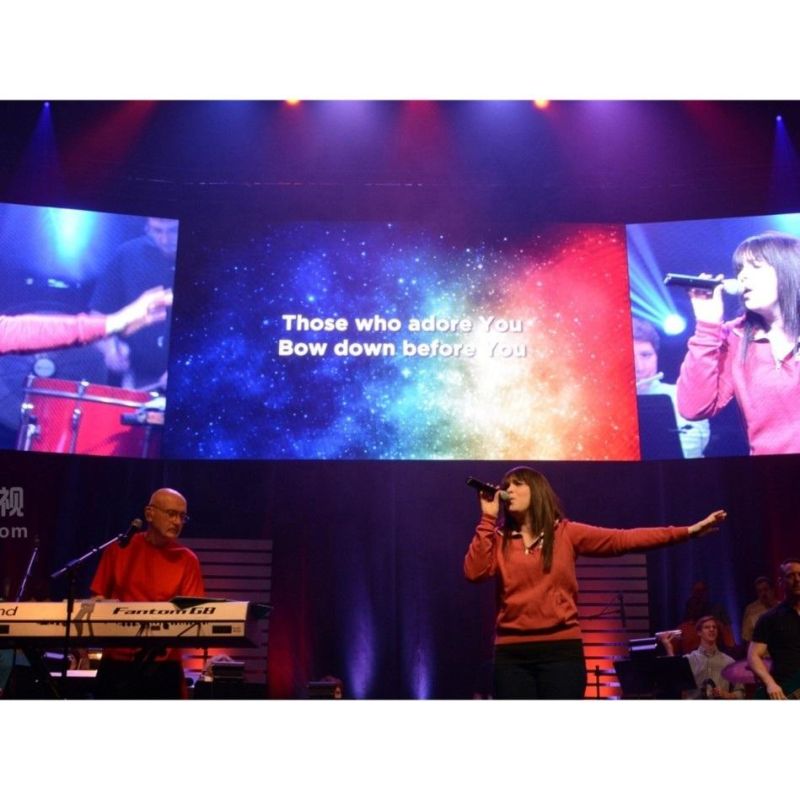

Application:






High Brightness P4.81 Indoor Video Display For Stage Rental



Video Display Specification



Item
Model NO.	P4.81
Pixel Pitch	4.81mm
Pixel Configuration	1R1G1B
Density	43200dots/m2
Brightness	1600CD
Color Temperature	6500-9500K
Scan Method	1/16
Cabinet Size	500x500mm
Module Resolution	52x52
Cabinet Resolution	104x104
Cabinet Weight	7.5Kg/cabinet
Max. Power Consumption	850W/m2
Ave. Power Consumption	600W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	320-1000Hz
Gray Scale	16bit
Best View Distance	>4m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-20-+50 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

Our service
 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms
 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2years6. Delivery time:15 working days
