Item
PH20 Outdoor LED display
Pixel Pitch(mm)20mmPixel density(/m2)2500LED TypeDIP546Viewing angle:H:120°,V:60°Brightness(nits)≥5500Drive MethodStaticColor Depth(nits)16384Refresh Rate(Hz)3000Module Size(mm)320×320×28.5Cabinet Size(mm)1280×960×148.5Cabinet MaterialIron Sheet MetalCabinet weight(kg)68Voltage110/240VAverage.power(W / m2)200Max.power(W / m2)600IP GradeIP65/IP54Operating temperature/humiditytemperature:-20oC~ 50oC humidity:10~90%RHStorage temperature/humiditytemperature:-40oC~ 60oC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC,CE,RoshPacking & delivery: Wooden/cartoon cases
Warranty:2 years
After sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30oC  and 60oC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

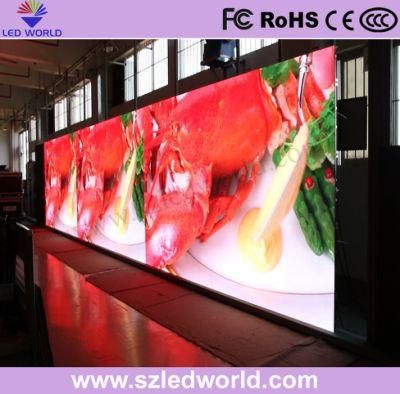

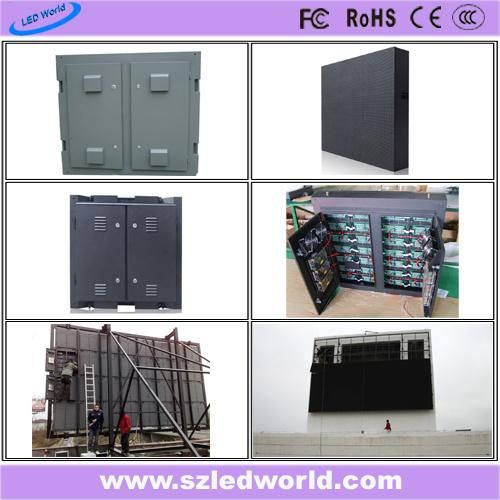

Product detail:

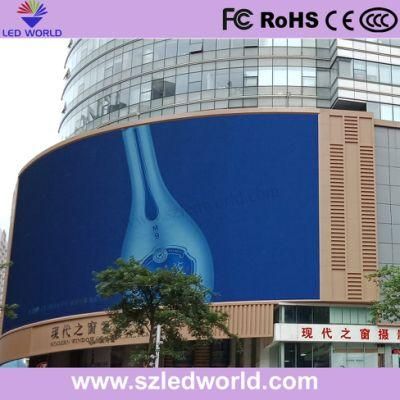

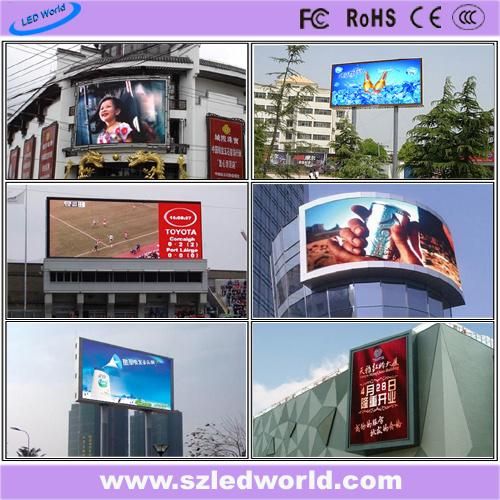

Project:

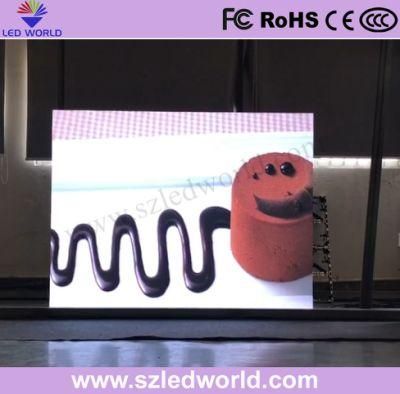

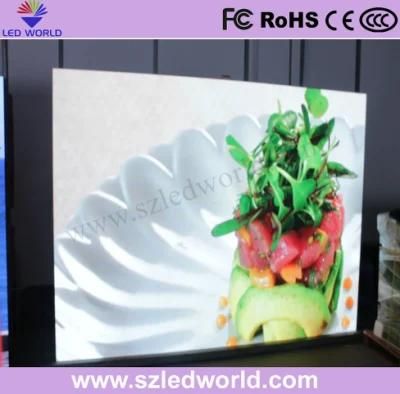

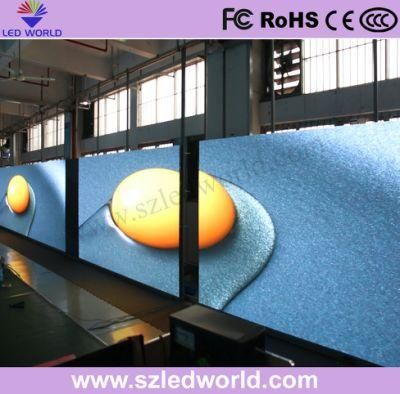

Workshop and package :
