NO.ItemParameter1ModelF162Pixel Pitch(mm)163LED Configuration1R1G1B4LED TypeDIP3465Screen Resolution3906dots/sqm6Module size(mm)256x2567Module resolution(dots)16x168Scan methodStatic constant current drive9Cabinet size(mm)1024x102410Cabinet resolution(dots)64x6411Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥750013Viewing angleH:120°/  V:50°14Grey Scale16bit15Refresh rate(Hz)≥350016Ave. power consumption (W/sqm)23017Max. power consumption(W/sqm)75018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

WORKSHOP:

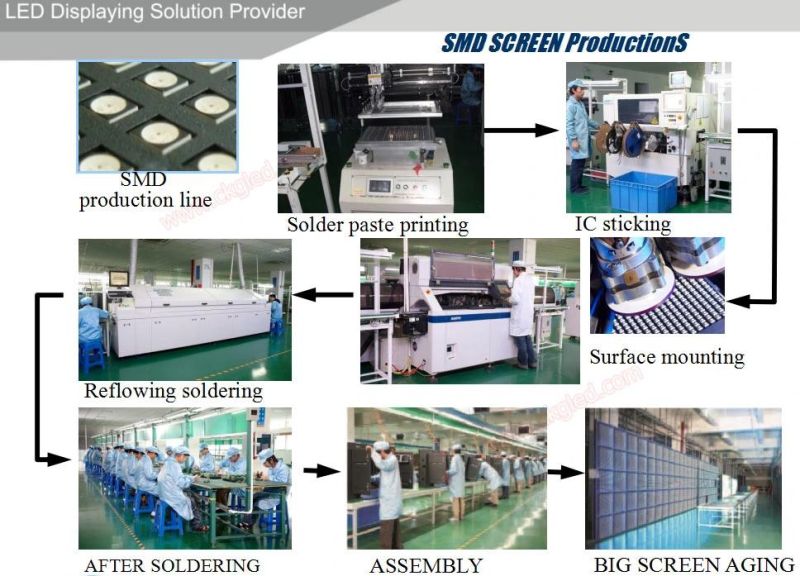

PROCESS:

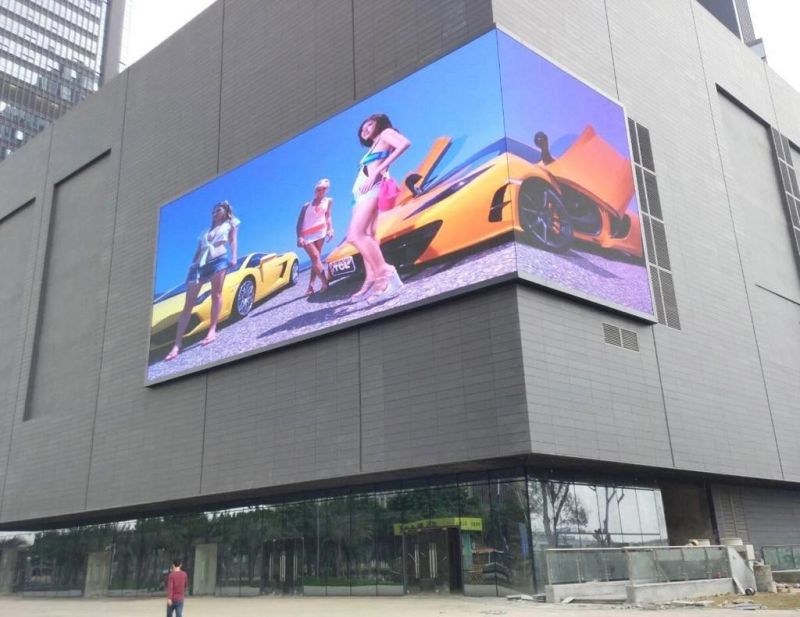

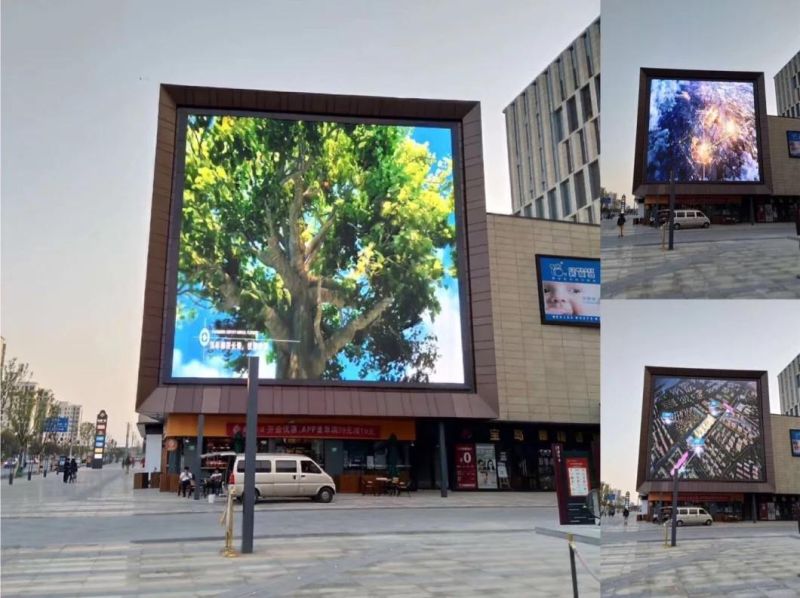

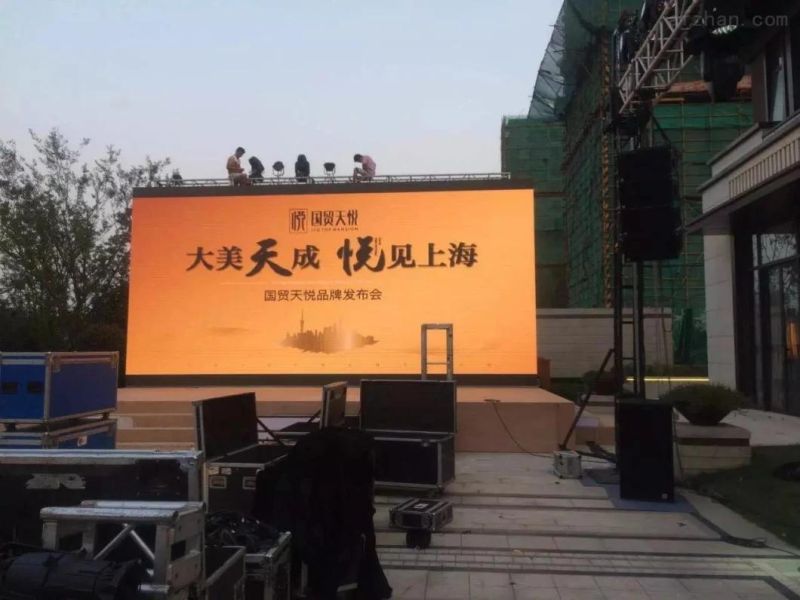

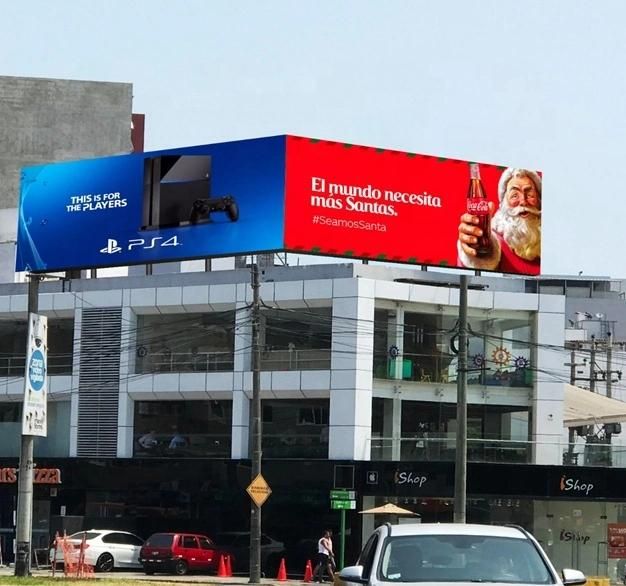

Product Pictures:

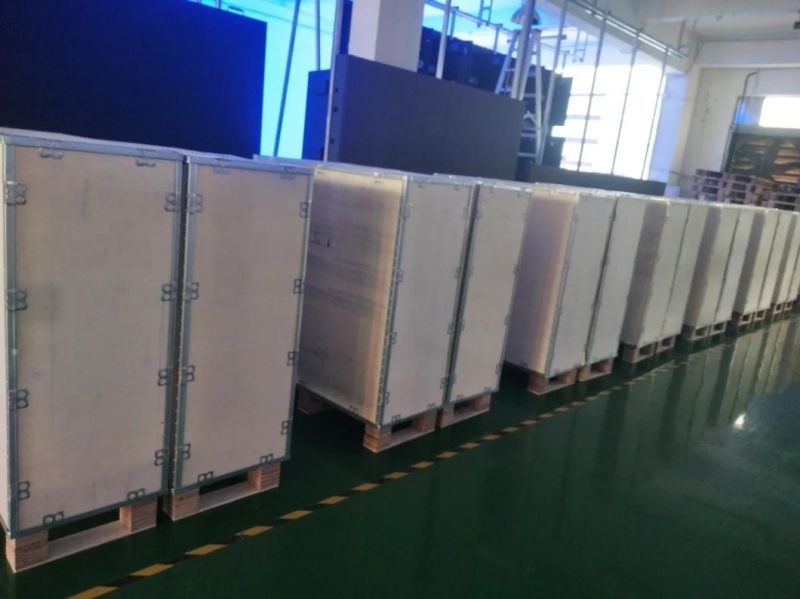

Package:




Certificates:




Other products:
Indoor fixed LED display:  P2.5,  P3,  P4,  P5,  P6,  P7.62,  P10

Indoor rental LED display: P3,  P4,  P5,  P6,  P10,  P3.91,  P4.81,  P6.25 ,

Outdoor fixed LED display:  P4,  P5,  P6,  P7.62,  P8,  P10

Outdoor rental LED display:  P4,  P5,  P6,  P8,  P10,  P6.667,  P3.91,  P4.81,  P5.95,  P6.25

Small pitch LED display:  P1.667,  P1.875,  P1.904,  P1.923,  P2.0, P2.5

Front service maintenance LED screen:  P10,   P16,  P20

Stadium perimeter LED screen:  P8,  P10,  P16
