Basic Info.

Model NO. fox-p3-Indoor System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS Module P3 Color 1r1g1b Module Size 192*192mm Brightness >2000CD Sqm Scanning 1/8 Cabinet Number 3*3 Best Viewing Distance 3-10m Average Consumption 600W/Sqm Mtbf 10000 Max Refresh Rate 2800 Transport Package Anti-Shaking Wooden Case; Flight Case Specification CE, RoHS Trademark FOXGOLDEN Origin Shenzhen, Guangdong HS Code 8528591090 Production Capacity 4000sqm/Sqm

Product Description

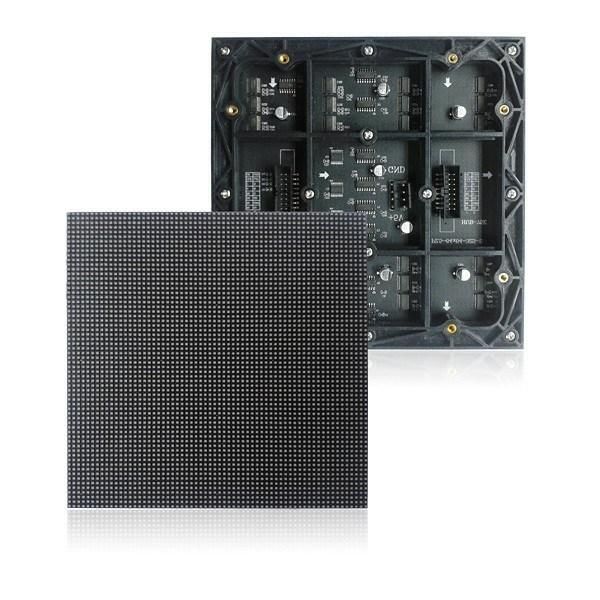

2018 new china full color video led vision display screen p3

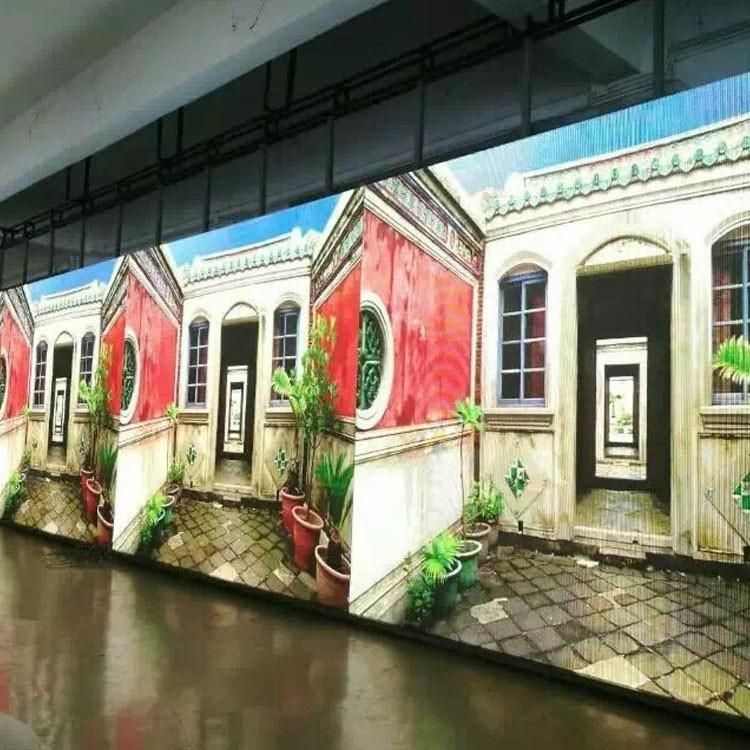

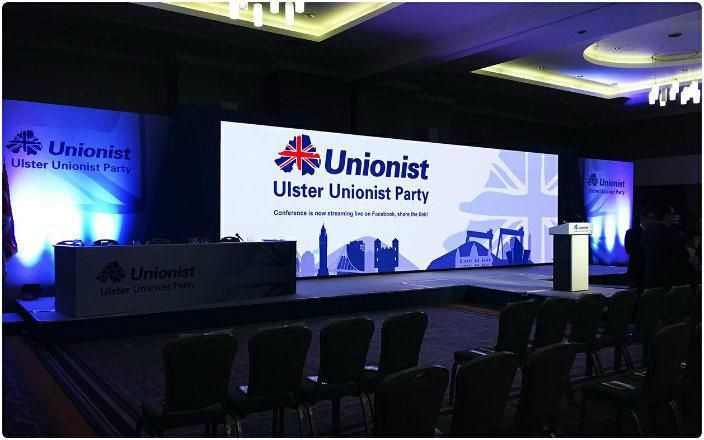

Application Picture











Numbers	Technical indexes	Specification
1	Pixel pitch	3mm
2	Module size	192mm×192mm
3	Module resolution	64×64
4	Module density	111111dots/sqm
5	Pixel configuration	RGB,3 in 1
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	16777216
10	Best viewing distance	3m---10m
11	Horizontal viewing angle	140°
12	Vertical viewing angle	120°
13	Maximum power consumption	1200W/sqm
14	Average power consumption	600W/sqm
15	Brightness	2000cd/sqm,adjustable
16	Gray scale	16bits of per color
18	Driving method	1/16scanning
19	Frame frequency	60Hz
20	Refresh frequency	300 Hz
21	Working voltage	AC220V/110V±10%
22	IP grade	IP20-45
23	Working temperature	-20°C~80°C
24	MTBF	More than 10,000 hours
25	Life span	More than 100,000hours

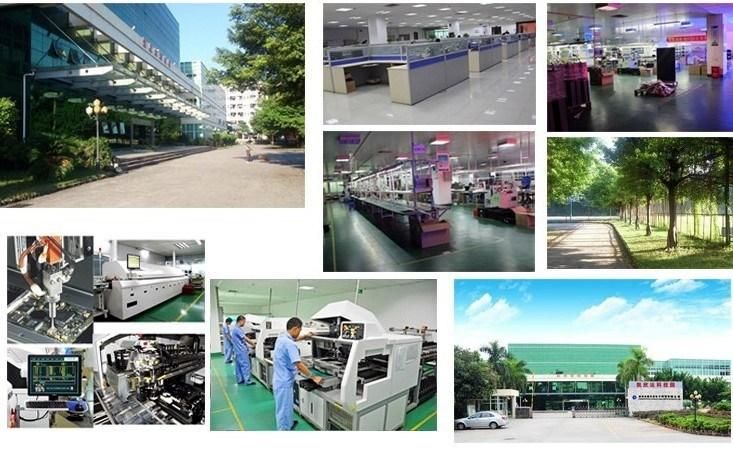

Factory picture











Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004,
we have been dedicating to the aim that making high quality products, and have been well integrated with R&D,
production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal
LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes
breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide
and earn excellent public reputation from both domestic and overseas market.
