Ce Certified 9m 70W LED Solar Lamps, Campus All in 1 Solar Power Street Light
Jiangsu Inlux Solar Lighting Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum
- Light Type：Solar
- Color Temperature：Cool White
- Power：≥30W
- Illumination Time：12h
Base Info
- Model NO.：INL-AIO2
- Cell Type：LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP67
- Certification：CE, ISO9001
- Voltage：12,24V
- With Light Source：With Light Source
- Application：Street, Road, Highway, Pathway, Sidewalk, Park
- Color：Grey
- Design：LiFePO4 Battery Is Built in Lamp Fixture
- Transport Package：720*340*135mm
- Specification：20W ~120W
- Trademark：INLUX SOLAR
- Origin：China
- HS Code：9405500000
- Production Capacity：200000 Sets, Year
Description
Lighting ParametersLamp Power30W40W60W80W100W120WLuminous Flux4625 lumens5400 lumens7200 lumens9250 lumens10800 lumens12250 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle140°CRI>70Physical ParametersLED Lighting SourceLed module designMono Solar Panel40W/18V60W/18V70W/18V80W/18V100W/18V120W/18VLiFePO4 Lithium Battery18AH/12.8V
(230WH)24AH/12.8V
(307WH)30AH/12.8V
(384WH)36AH/12.8V
(461WH)48AH/12.8V
(614WH)63AH/12.8V
(806WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 60-85mmDimension of Product343*780*60mm343*1020*60mm343*1250*60mm505*950*60mm505*1170*60mm505*1320*60mmNet Weight of Product11.3kg15.3kg 16.9kg19.2kg22kg24.8kgWorking ModeTime Control or PIR Motion Sensor ControlEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC
MODE B : 12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

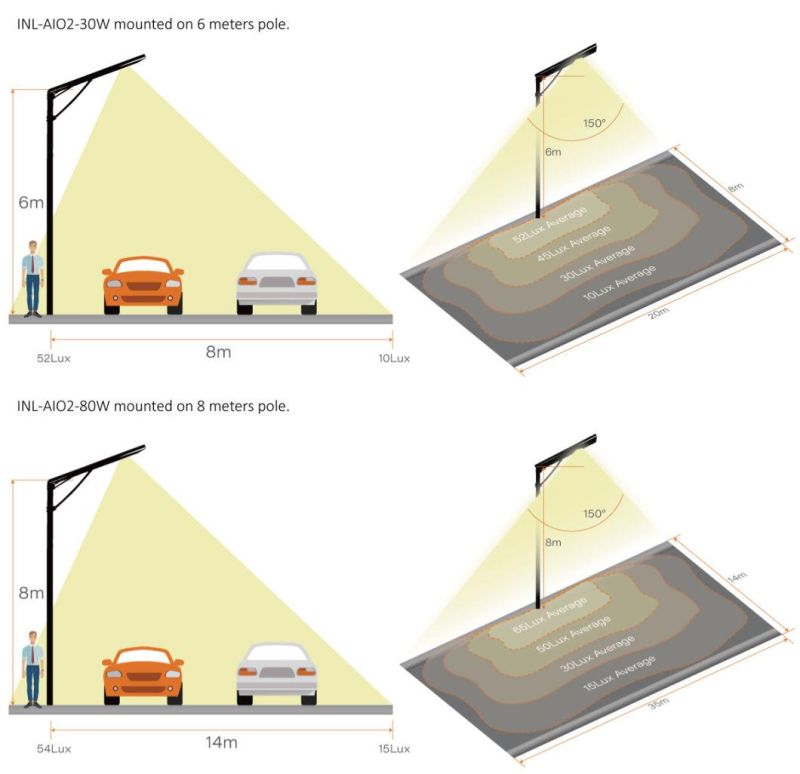

LIGHTING EFFECT
(230WH)24AH/12.8V
(307WH)30AH/12.8V
(384WH)36AH/12.8V
(461WH)48AH/12.8V
(614WH)63AH/12.8V
(806WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 60-85mmDimension of Product343*780*60mm343*1020*60mm343*1250*60mm505*950*60mm505*1170*60mm505*1320*60mmNet Weight of Product11.3kg15.3kg 16.9kg19.2kg22kg24.8kgWorking ModeTime Control or PIR Motion Sensor ControlEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC
WORKING MODE

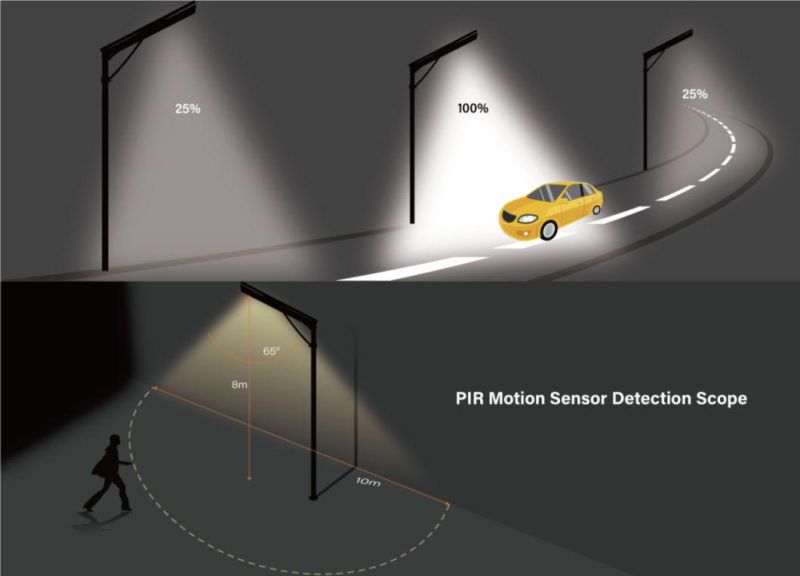

MODE A : 12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.

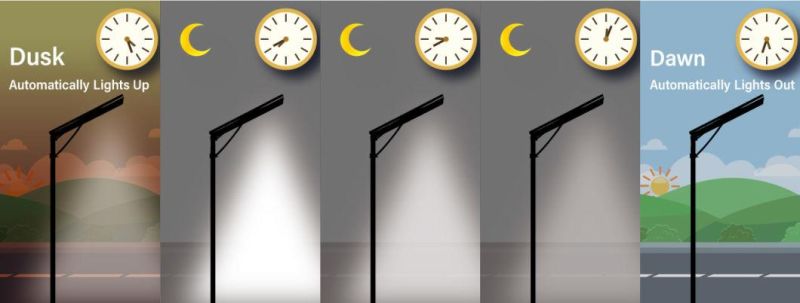

MODE B : 12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
LIGHTING EFFECT
