Basic Info.

Model NO. 2.5 mm System Operating Platform Win XP/2000/98/Vista Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL LED Type SMD2020 Module Size 240*240 mm Cabinet Size 480*480 mm Cabinet Material Die-Casting Aluminum Cabinet Weight 5.8 Kg Viewing Angle H: 140/ V: 140 Grey Scale 16 Bits Refresh Rate 3840 Hz Brightness 800 Nits Controller Nova Service Rear Input Voltage AC 100~240 V Viewing Distance 2.5~25 M Life Span 100000 Hours Ave. Power Consumption 240 W/Sqm Transport Package Flight Case Specification 480*480 mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Product features :

1.Durable fresh color by adopting high quality leds.

2. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.

3.Great uniformity , contract ratio and screen flatness.

4. No mosaic display due to excellent flatness and nice uniformity of light-emitting

5. The images display effect will not Change largely in the range.

6. LED Single-lamp maintenance with low cost.

7. Good heat dissipation capability because of the unique design of vent fan.


Product specifications:

Parameters	Specifications
Model	CA 2.5
Pixel Pitch(mm)	2.5
LED	SMD2020
Screen Resolution	160000dots/sqm
Scan Method	1/32
Module size(mm)	240*240
Cabinet size(L*H*W mm)	480x480x80
Cabinet material	Die-casting Aluminum
Cabinet(Kg)	5.8
Viewing angle	H:140°/  V:140°
Grey Scale	16bit
Refresh rate(Hz)	≥3840
Brightness(nits)	≥1000
Working Voltage(V)	AC 100~240V
AVE. power consumption (W/m²)	240
MAX. power consumption(W/m²)	560
IP grade	IP31
Controller	Novastar
Maintenance	Rear service
Working humidity	10~90%RH
Working temperature	-20ºC~50ºC

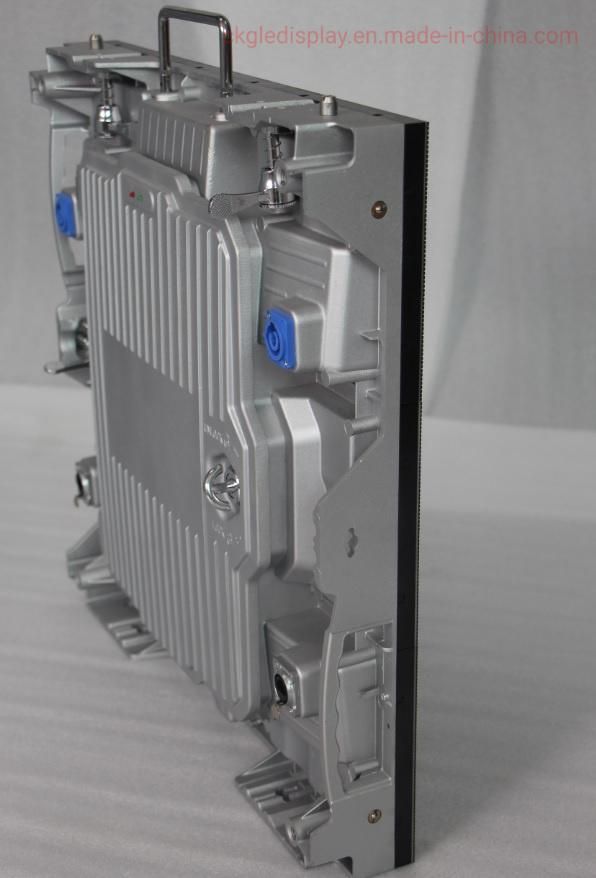

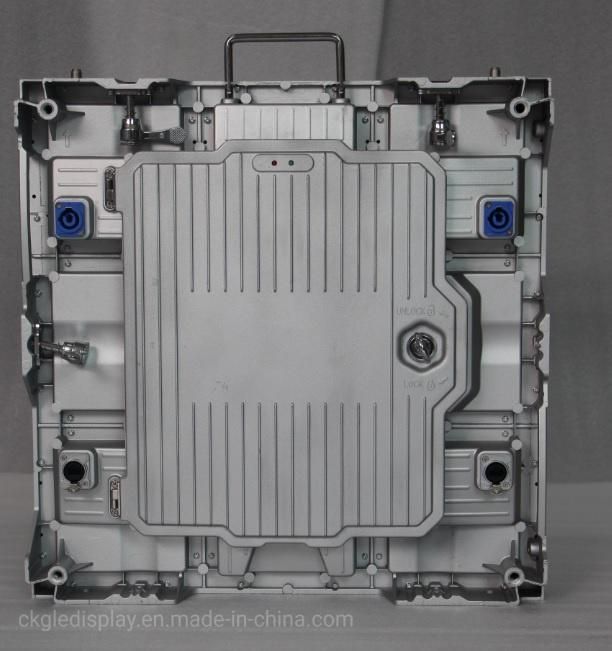

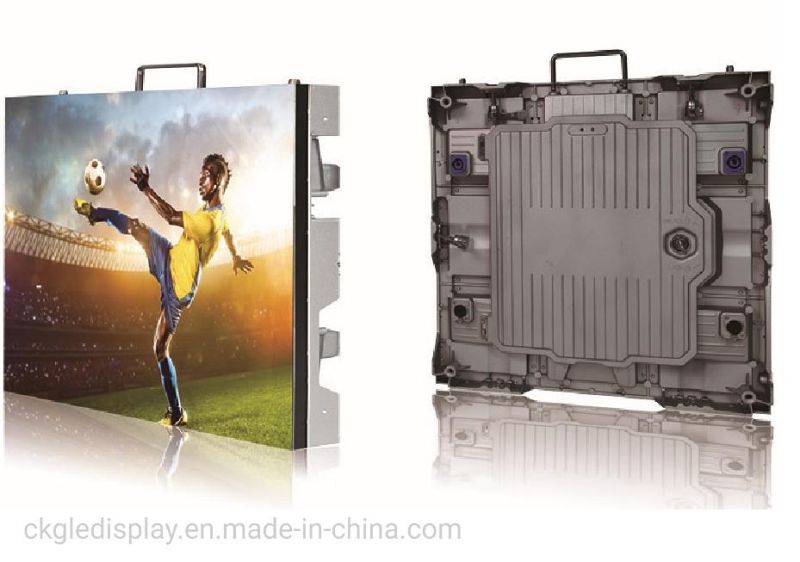

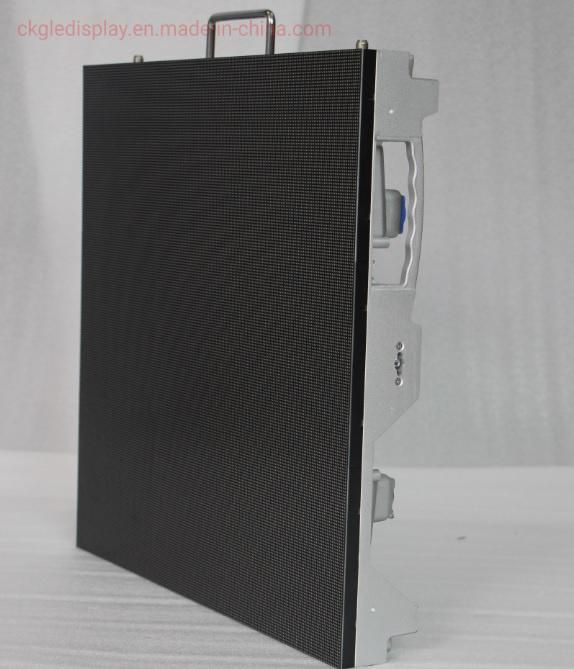

Product details:

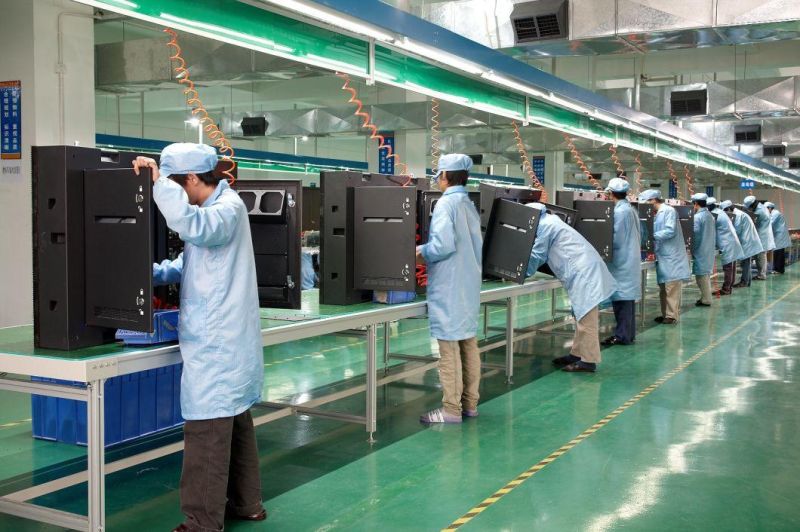

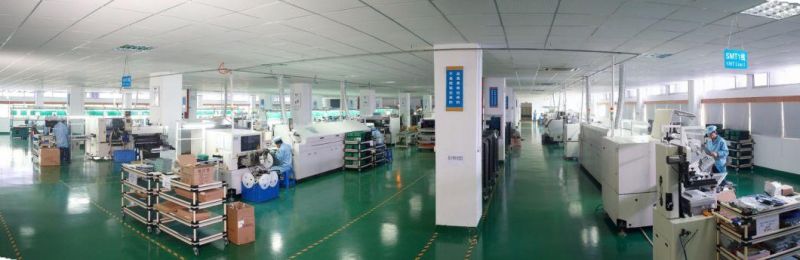

workshop:

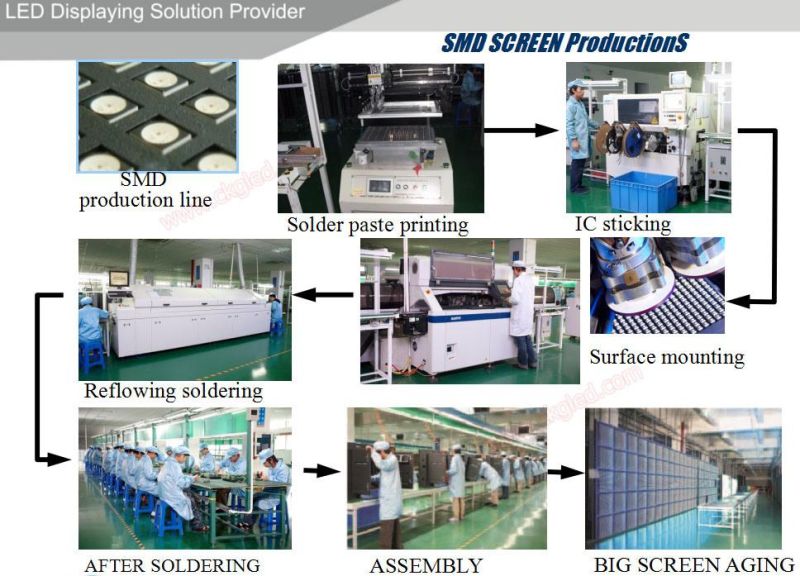

process:





certificate:

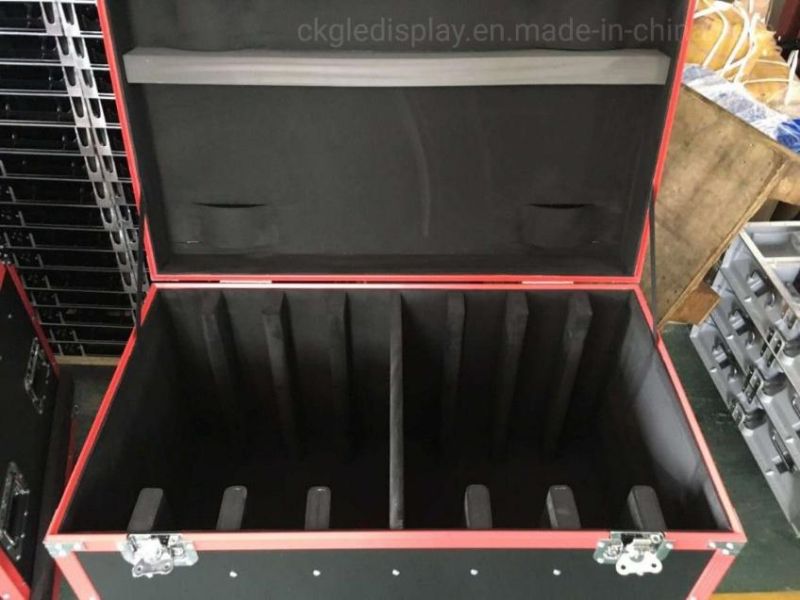

package:






Our Service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
