Basic Info.

Model NO. HM24V-SMD3014240 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.

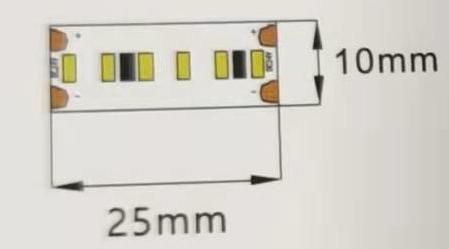

Product Dimension

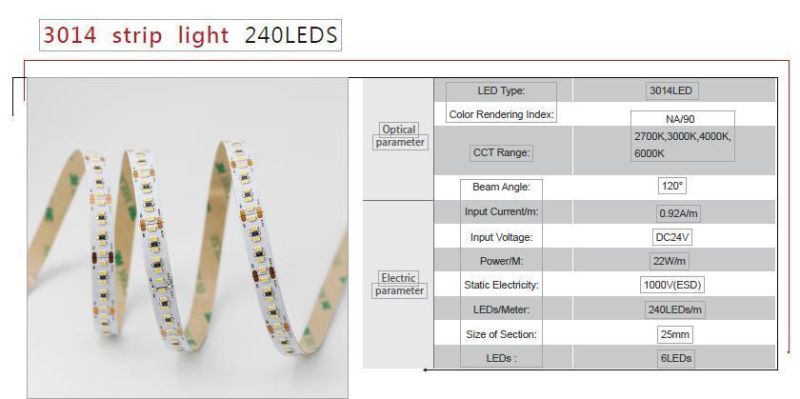

Optical parameter
LED Type: SMD3014
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 95.5/100.0/101.4/102.3Lm/w
Lumen Output/meter: 2100Lm/m (700Lm/ft)
                                   2200Lm/m (733Lm/ft)
                                   2230Lm/m (743Lm/ft)
                                   2250Lm/m (750Lm/ft)



Electric parameter

Input Current/m: 0.92A/m
Input Voltage: DC24V
Power/M: 22.0W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 240LEDs/m
Size of Section:  25mm
LEDs of Section: 6 LEDs

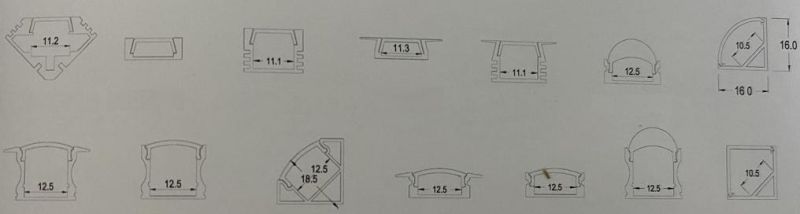

Recommended Profiles
