Basic Info.

Model NO. HM24V-SMD2216300 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.


Product Dimension

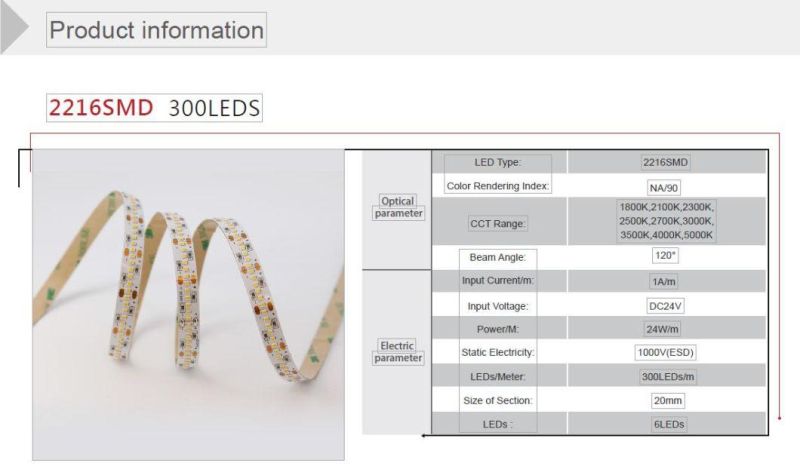

Optical parameter

LED Type: SMD2216
Color Rendering Index: 90
CCT Range: 1800K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K
Beam Angle: 120°
Light Efficiency: 64.6Lm/w
Lumen Output/meter: 1551Lm/m (517Lm/ft)



Electric parameter

Input Current/m: 1.00A/m
Input Voltage: DC24V
Power/M: 24W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 300LEDs/m

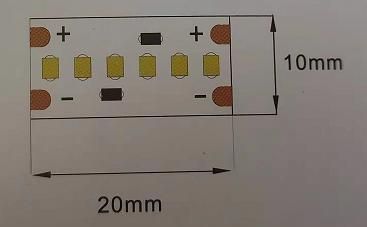

Size of Section:  20mm
LEDs of Section: 6 LEDs

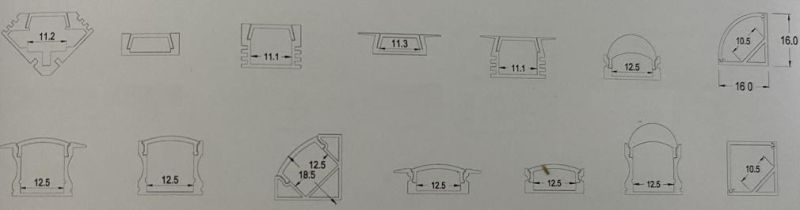

Recommended Profiles
