Basic Info.

Model NO. HM12V-SMD283560-S Specification 6mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.

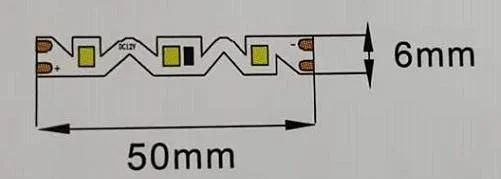

Product Dimension




Optical parameter
LED Type: SMD2835
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 96.7/100.0/103.3/106.7Lm/w
Lumen Output/meter: 580Lm/m (193Lm/ft)
                                   600Lm/m (200Lm/ft)
                                   620Lm/m (207Lm/ft)
                                   640Lm/m (213Lm/ft)



Electric parameter

Input Current/m: 0.50A/m
Input Voltage: DC12V
Power/M: 6.0W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 60LEDs/m
Size of Section:  50mm
LEDs of Section: 3 LEDs

Application:
1. For luminous characrter using
2. Back lighting using
3. Bent to 90 degrees
