Basic Info.

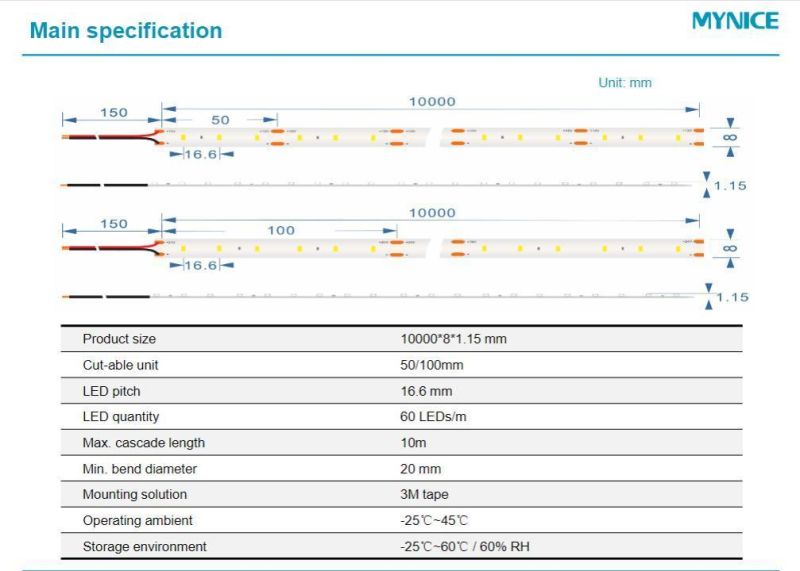

Model NO. RM060GX08A Color Rendering Index 80 Color Temperature 3000K Lumen 715 Lm Luminous Efficiency 99 Lm/W Outer Carton Size 52*37*26cm Packing Quantity 50bags Gross Weight 14kg Transport Package DHL Specification 10000*8*1.15mm Origin Shenzhen HS Code 9405409000 Production Capacity 5000000

Product Description

Areas of application:


-Suitable for hotels, shopping malls, homes, cabinets, display racks, etc., used in main lighting, indirect lighting, dark groove lighting, Outline lighting, decorative lighting, etc.



Product main benefits:

-Using 2835 SMD LEDs, the color consistency is good.

-It adopts a new type of rolled copper process, which has good heat dissipation and strong conductivity.

-Long cascade connection, no welding, high efficiency.

-The single-ended power supply can be cascaded up to 10 meters, the voltage drop is small, and the brightness consistency from the beginning to the end is high.

- Low temperature treatment, more environmentally friendly.

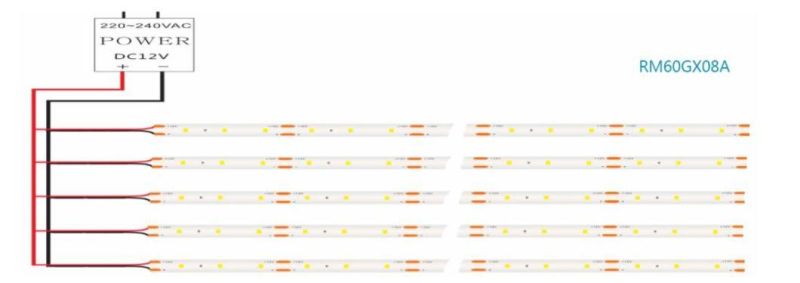

Product wiring diagram:
