Basic Info.

Model NO. LM3528-WN240-24V-10mm LEDs Suppliers Honglitronic/Osram/Samsung LED BINs 3-Step/5-Step, same BIN for each order LEDs material packaged by 99.99% pure gold wire LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll Specification CE, RoHs, FCC Trademark Leomay Origin China HS Code 940540900 Production Capacity 50000meter/Month

Product Description

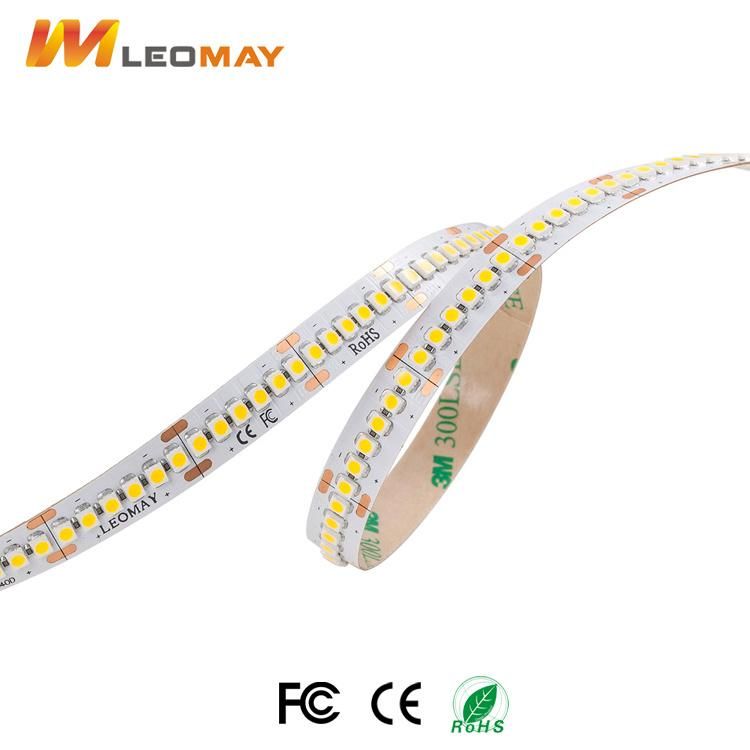

Pure white SMD3528-WU240 LED Bar
SMD3528 240leds, DC12V/24V,environmental conservation LED strip.


Product Parameter

Model No.	LM3528-WN240-WW-24V
LED Qty	240 leds/m 3528
Rated Power(W)	19.2W/M, 96W/5M
Voltage(V)	24V DC
PCB Width	10 MM
PCB materials	2Oz Double-sided coated pure copper
Luminous(lm/m)	1500 lm/m
LED Chip Brand	Sanan(Epistar optional)
LED's material	Packaged by 99.99% pure gold wire
LED Bins	3-Step/5-Step, same BIN for each order
LED Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Temperature	2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/roll)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	6 LEDs

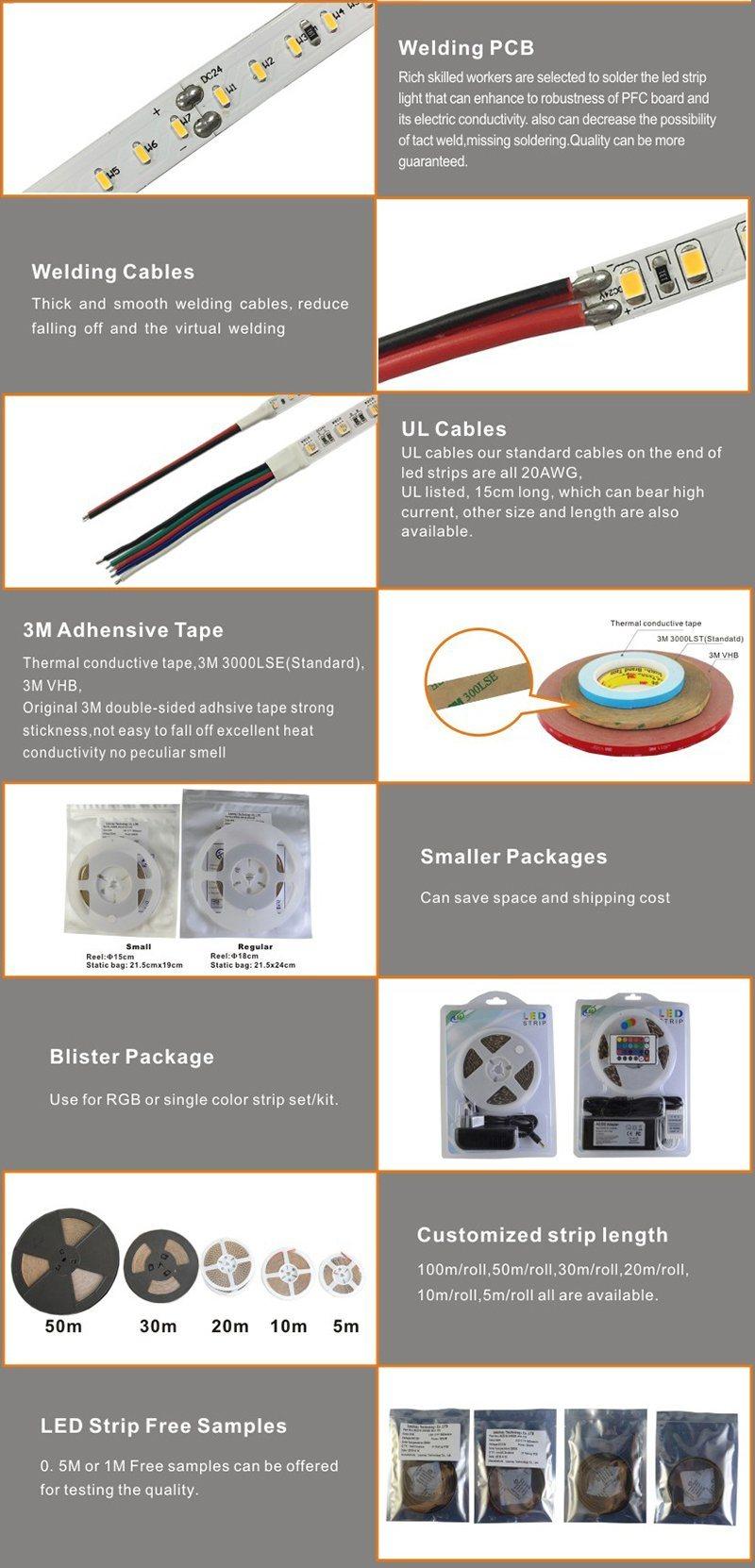

Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHs, FCC
Warranty	3 Years
