Basic Info.

Model NO. 5mm Pixel Density 40000dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 64X32dots Cabinet Size 640X640mm Cabinet Resolution 128X128dots Screen Brightness 5000nits Refresh Rate 1920Hz-3840Hz Protection Grade IP65 Controller Nova / Lins Service Rear Maintenance Transport Package Flight Case Specification 640x640x80mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

RO SERIES PRODUCT FEATURES:

.  IP65 design: good for any outdoor event environment.

·  high screen brightness : 5500nits.

.   Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

.    Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

.  High polymer flexible mask, no mosaic phenomenon, better contract ratio.



PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	RO5
2	Pixel Pitch(mm)	5
3	Pixel Density	40000dots/sqm
4	LED Type	SMD2727
5	Viewing Angle	horizontal 140°,Vertical 140°
6	Brightness	≥5000cd/sqm
7	Drive Method	1/8 scan
8	Color Depth	14bit
9	Refresh Rate(Hz)	≥1920
10	Frame Frequency (Hz)	≥60
11	Brightness Adjustment	Manuel/Auto/Remote control
12	Module Size(mm)	320×160×17
13	Module Resolution(dots)	64×32
14	Cabinet Size(mm)	640×640×80
15	Cabinet Resolution(dots)	128*128
16	Cabinet Type and Material	Die-casting Aluminum
17	Cabinet Weight(Kg)	≤12
18	Voltage(V)	AC 100~240V
19	Avg. Power Consumption	230W/sqm
20	Max. Power Consumption	560W/sqm
21	Service Access	Rear Access
22	IP Grade	Front: IP65  /  Rear: IP54
23	Operating Temp/Humidity	-30ºC~60ºC, 10~95%RH
24	Storage Temp/Humidity	-40ºC~60ºC, 10~95%RH
25	Lifetime(Normal Temp)	≥50000H
26	System Controlle	Linsn/Novastar
27	Compliant Standard	CCC/CE/RoHS

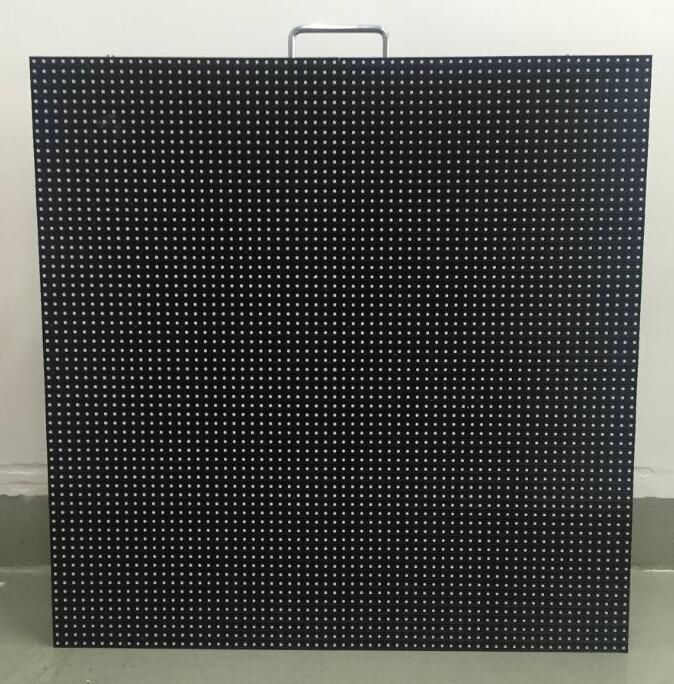

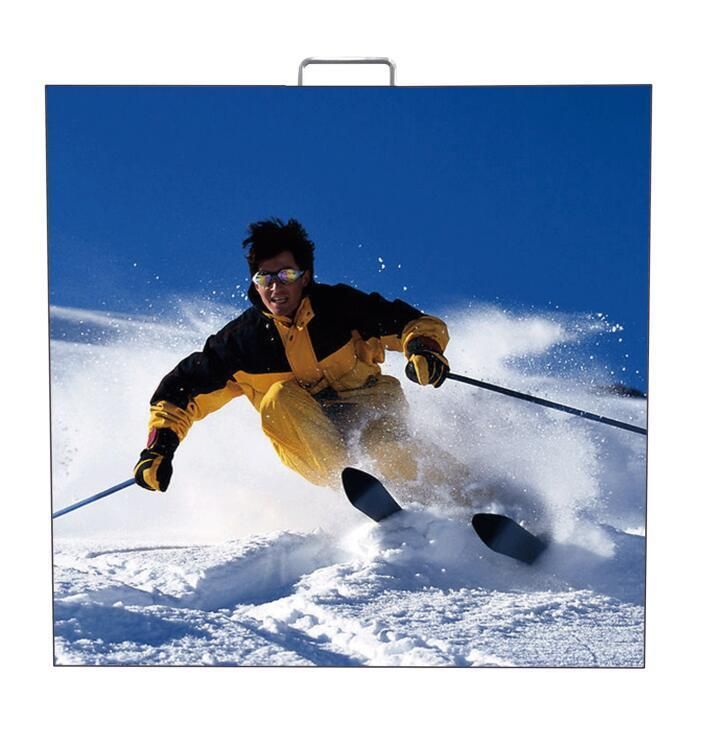

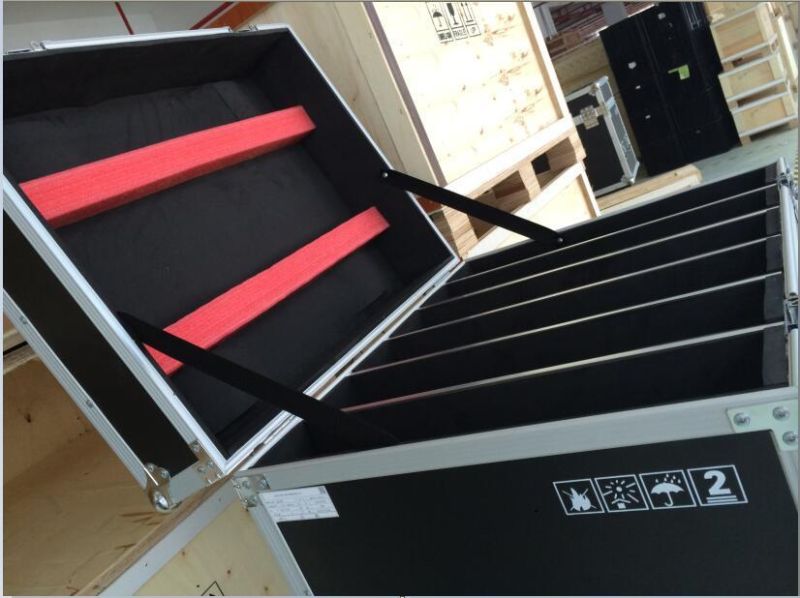

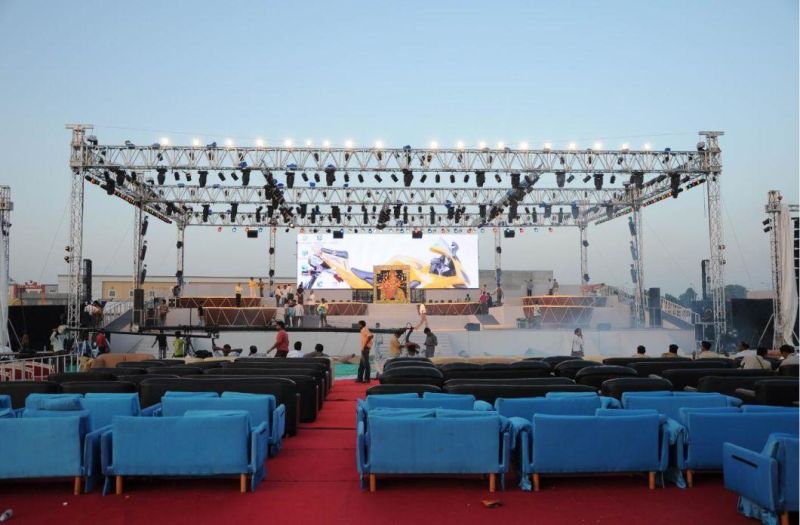

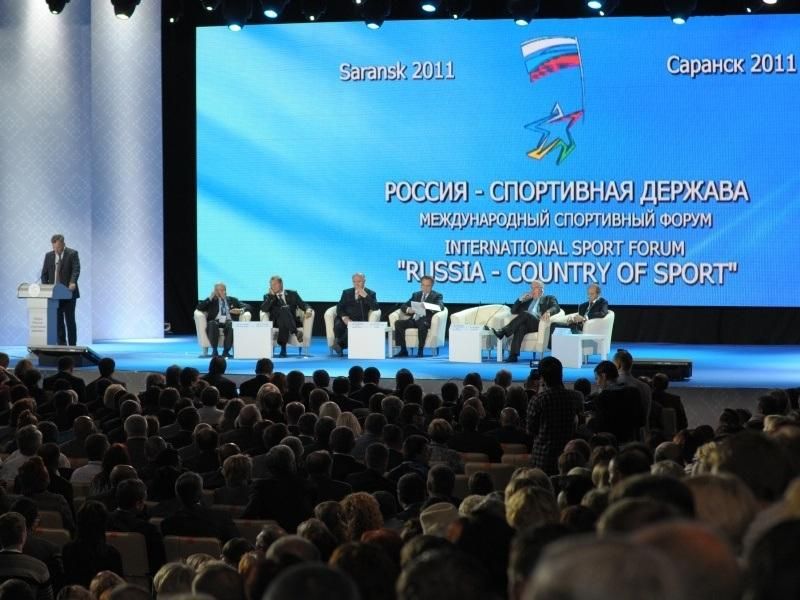

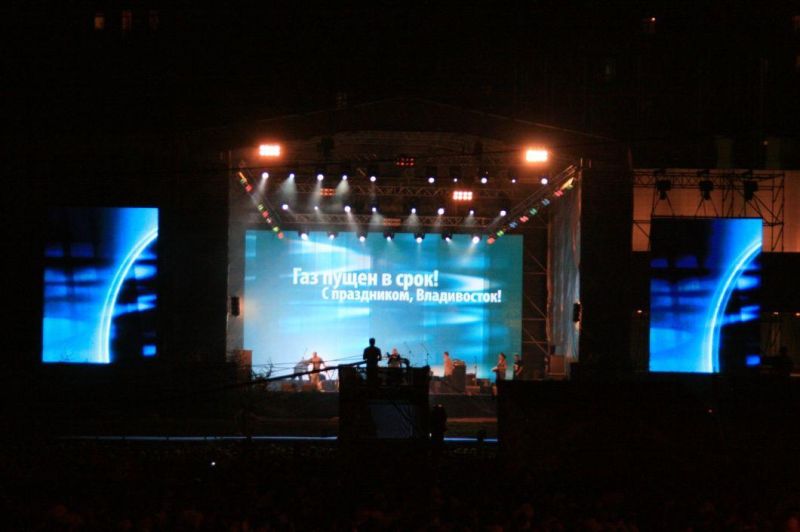

PRODUCT PHOTOS:
