Basic Info.

Model NO. HM24V-SMD2835120 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

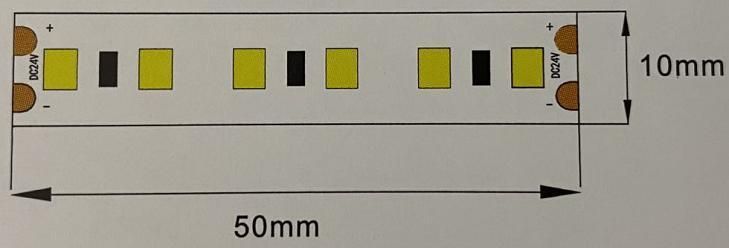

Product Dimension

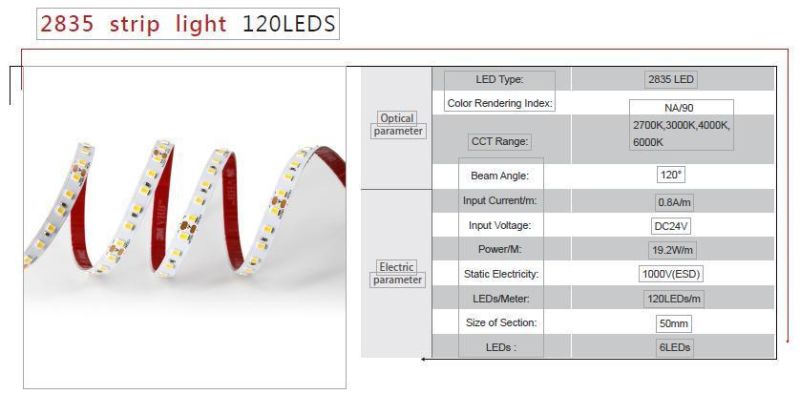

Optical parameter

LED Type: SMD2835
Color Rendering Index: 80
CCT Range: 2700K, 3000K,4000K,6000K
Beam Angle: 120°
Light Efficiency: 88.5/91.1/93.8/101.6Lm/w
Lumen Output/meter: 1700Lm/m (567Lm/ft)
                                   1750Lm/m (583Lm/ft)
                                   1800Lm/m (600Lm/ft)
                                   1950Lm/m (650Lm/ft)


Electric parameter

Input Current/m: 0.8A/m
Input Voltage: DC24V
Power/M: 19.2W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 120LEDs/m
Size of Section:  50mm
LEDs of Section: 6 LEDs


Recommended Profiles
