Basic Info.

Model NO. BS Series Pixel Density Optional Scanning Mode 1/40 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, UL, CCC, ETL, FCC,RoHS,ETL,EMC Contrast Ratio 2000:1 Weight 3kg/Panel Servicing Front Service Viewing Angle(H/V) 160/140 Life Span 100,000hrs Warranty 2-5 Years Transport Package Wooden Case/Flight Case Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 20, 000 M2/Month

Product Description

Flexible LED Screen P4 Rubber Soft LED Module 256*128mm Small Pixel Pitch 3mm Thickness Lightweight

Description:

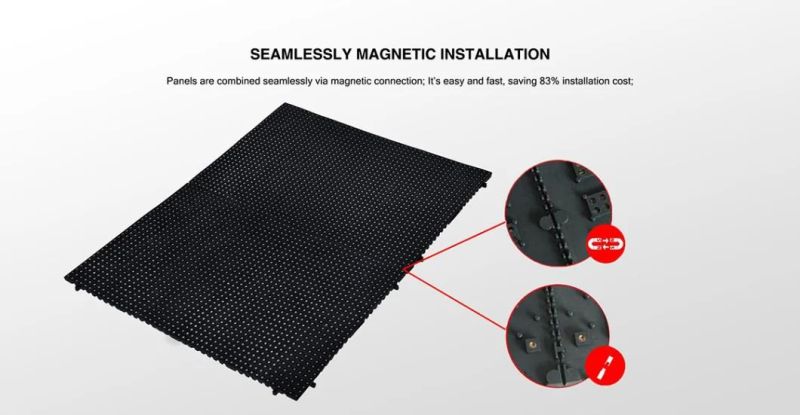

Seamless panel connection: Panels are stitched together via magnetic connection. This magnetic buckle design also ensures fast installation and replacement.

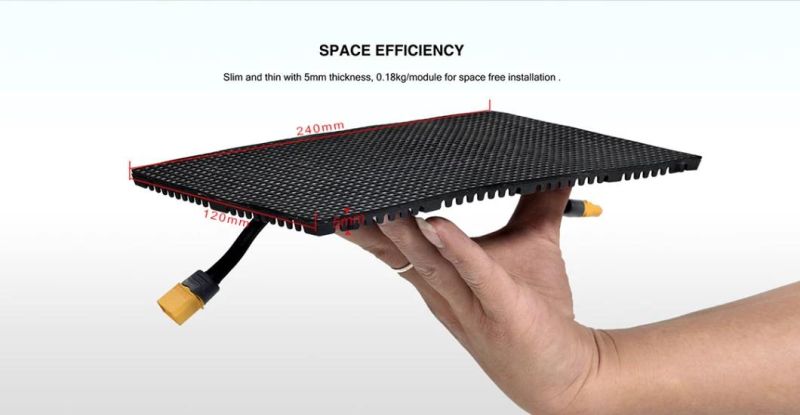

Space-efficient: Since these soft and flexible LED displays are not enclosed inside a cabinet, they only take up 5mm space in thickness. So, you can install freely without worrying about space limitations.

Cost savings: Thanks to their light-weight design, up to 20 sq mts of soft LEDs can be packed inside one flight case. So, you get to save on both shipping and labor costs.

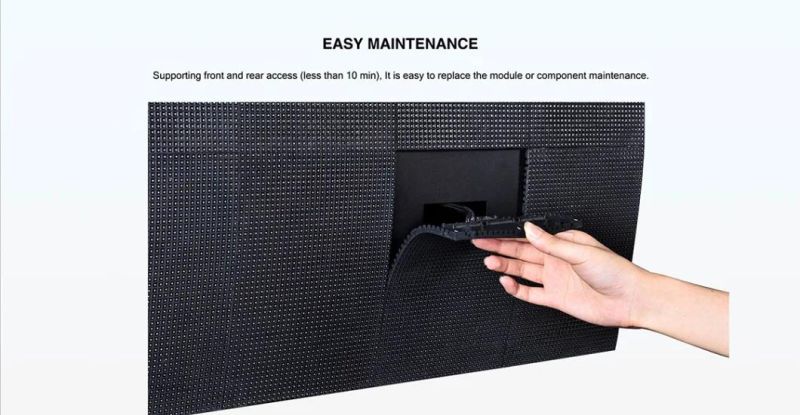

Easy servicing: With top and front access for service, maintenance becomes astonishingly quick and easy.

Highly customizable:  You decide the shape, size, color, and pixel pitch, and we will take care of the rest. With these soft and flexible LEDs, you don't have to shy away from irregular shapes like circles, columns, ellipses, triangles, spheres, etc.



Features:

Flexible Rubber Module, Creative Solutions
Convex, Concave or Twisted Available Module For Any Creative Shape and Size, For Unique Installations
Ultra Thin and Lightweight
Magnetic Connection for Easy Maintenance

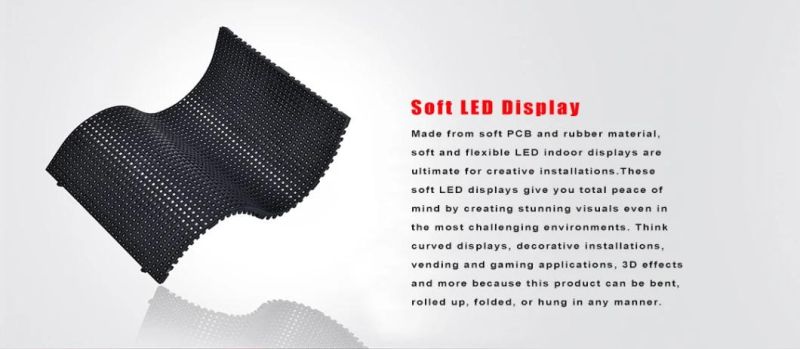

Soft Ribbon Rubber
Durable soft rubber module, anti-static electricity Soft PCB and rubber material
Integrated SMD, IC, Circuit for easy maintenance and heat dissipation
Magnetic connection for easy maintenance


Creative and Customized Forms
For any convex, concave or twisted installations
Customized pixel pitches available for variable installations


Slim and Lightweight and Quiet
5mm thickness, space efficiency
0.18kg per module, shipping cost and installation cost saving Fanless design



Specifications:

	BS-2	BS-3	BS-4	BS-6
Physical Pitch	2.5mm	3mm	4mm	6.66mm
Pixel Configuration	SMD2121	SMD2121	SMD2121	SMD3528
Pixel Density	160,000 pixels/m²	111,111 pixels/m²	62,500 pixels/m²	22,545 pixels/m²
Module Dimensions(W*H)(mm)	240*120	240*120	240*120	320*160
Panel Dimensions(mm)	Customized	Customized	Customized	Customized
Physical Resolution of Module(W*H)	96*48	80*40	60*30	48*24
Weight	8.2kg/m²	8.2kg/m²	8.2kg/m²	8.2kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1
Average Power Consumption	9W/m²	10W/m²	10W/m²	10W/m²
Max. Power Consumption	12W/m²	13W/m²	13W/m²	13W/m²
Operating Temp/Humidity	-20ºC-60ºC/10%-60%	-20ºC-60ºC/10%-60%	-20ºC-60ºC/10%-60%	-20ºC-60ºC/10%-60%
Storage Temp/Humidity	-40ºC-80ºC/10%-90%	-40ºC-80ºC/10%-90%	-40ºC-80ºC/10%-90%	-40ºC-80ºC/10%-90%
Refresh Rate	>1920Hz	>1920Hz	>1920Hz	>1920Hz
Brightness	>1000 nits	>1000 nits	>1500 nits	>1500 nits
Driving Method	1/40	1/40	1/40	1/40
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP40	IP40	IP40	IP40
Servicing	Front	Front	Front	Front
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

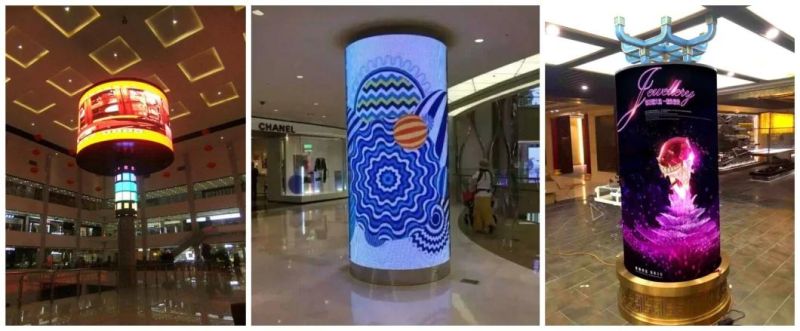

NEW Case Study:



OUR SERVICE:

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service


About Bako Vision:

Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
