Full Color P8mm Outdoor Waterproof IP65 LED Advertising Display Screen
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
Pixel pitch8mmModule size256mm*128mmModule pixel32dots*16dotsDriving method1/4 scan method Pixel configurationSMD3535Pixel density15625dots/sqmModule resolution512dots
Cabinet specifications:
Cabinet size1024mm*768mm*150mmCabinet resolution128dots*96dotsCabinet weight40kgModule Qty24pcsCabinet pixel12288dotspower consumption(w/sqm)AVE.200 / MAX.600
Screen parameters:
No.ParameterSpecification1Pixel Pitch8mm2Pixel Density15625pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)120°5Brightness≥6000cd/sqm6Drive Method1/8 scan method7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

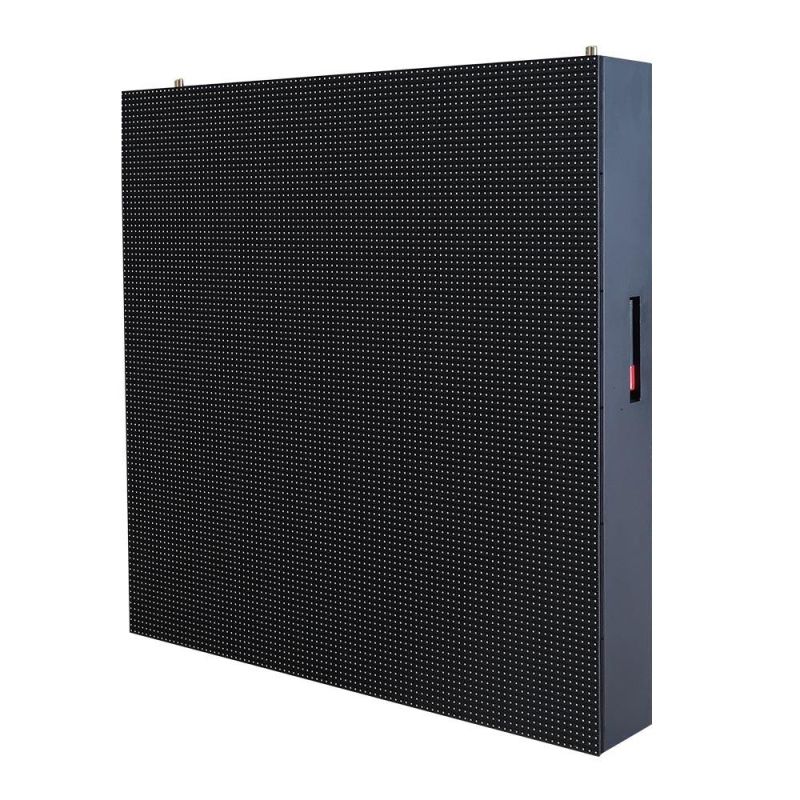

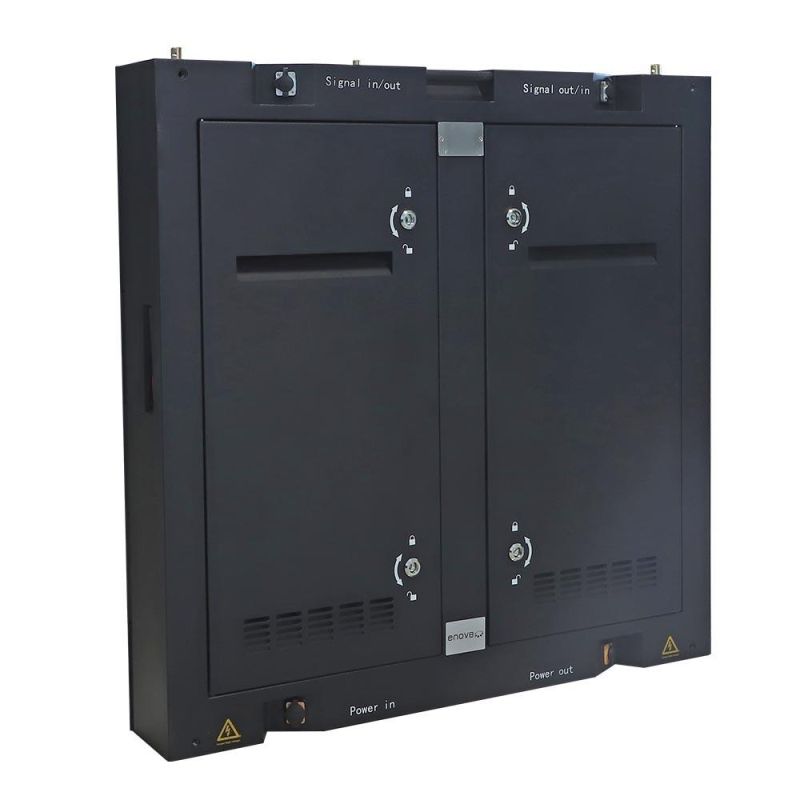

LED Display Panel photos:

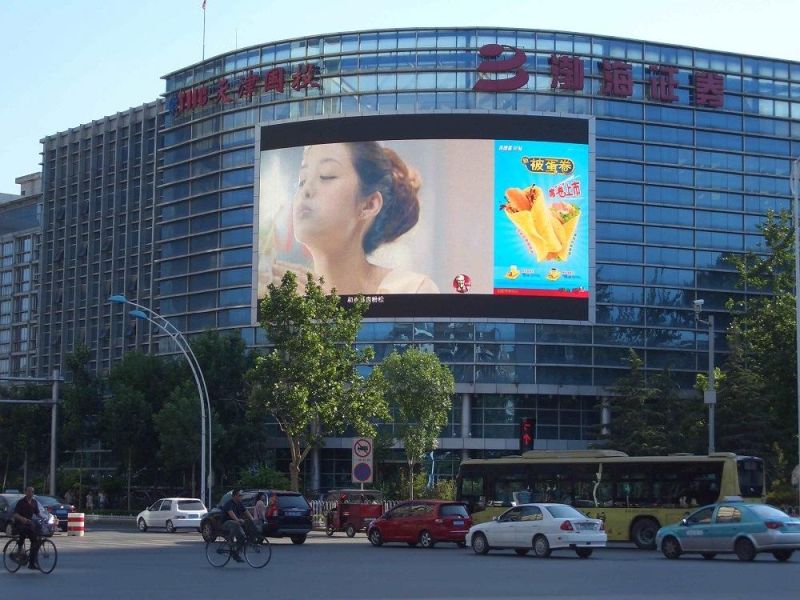

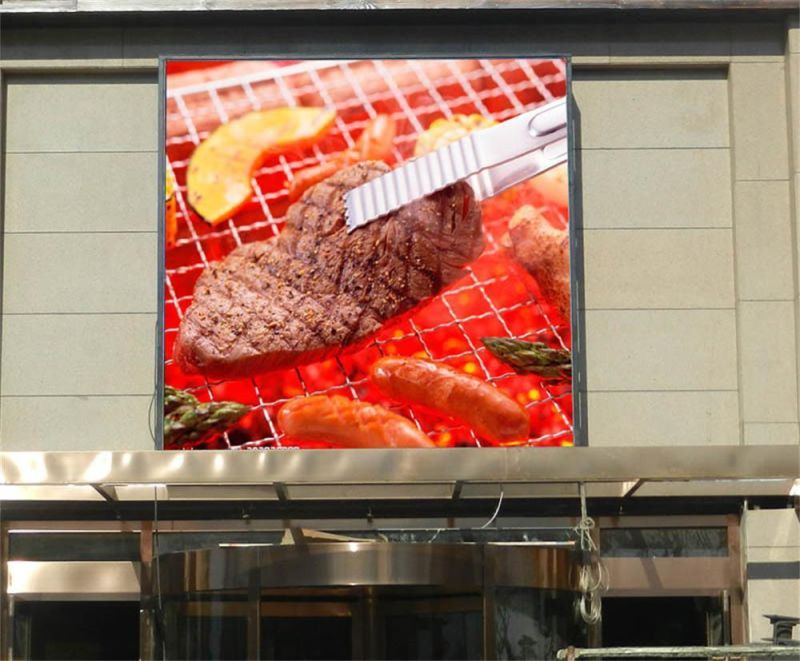

Wall-mounted on the building:
Totem LED display :

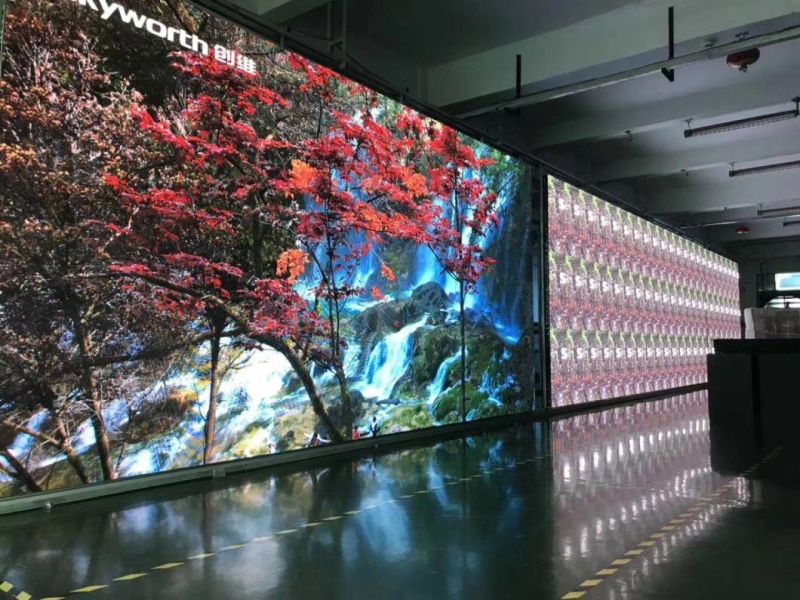

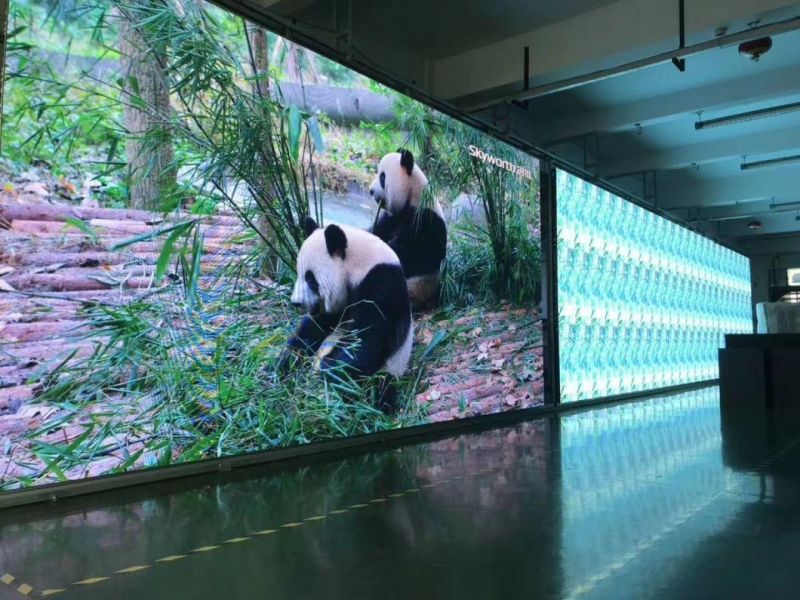

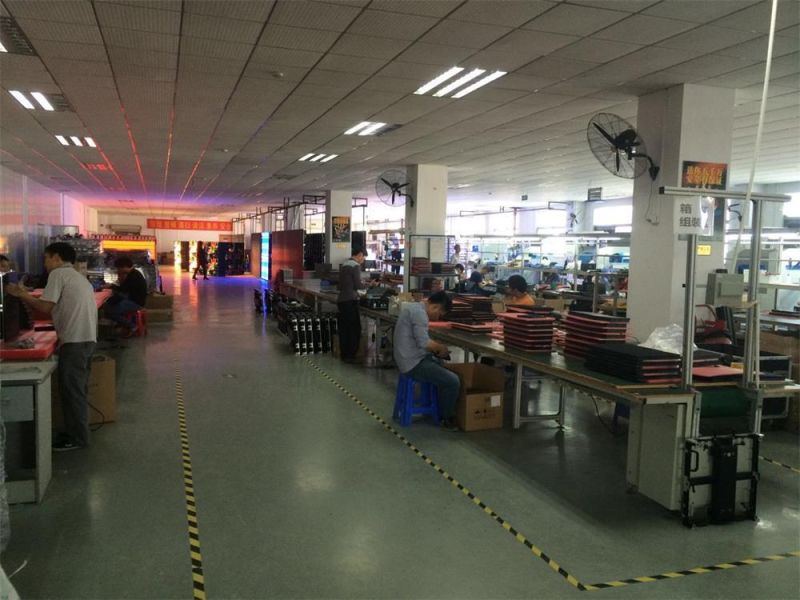

Factory photos:

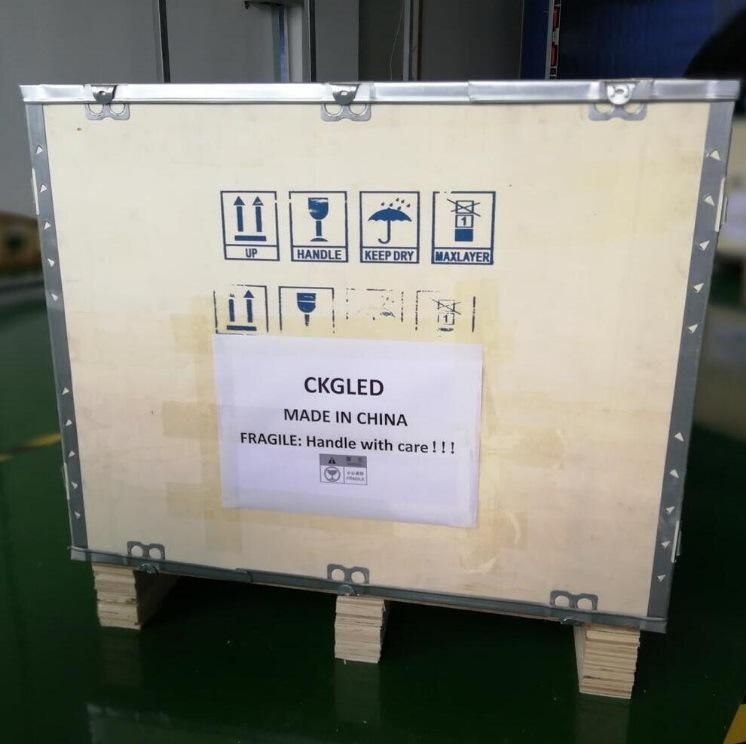

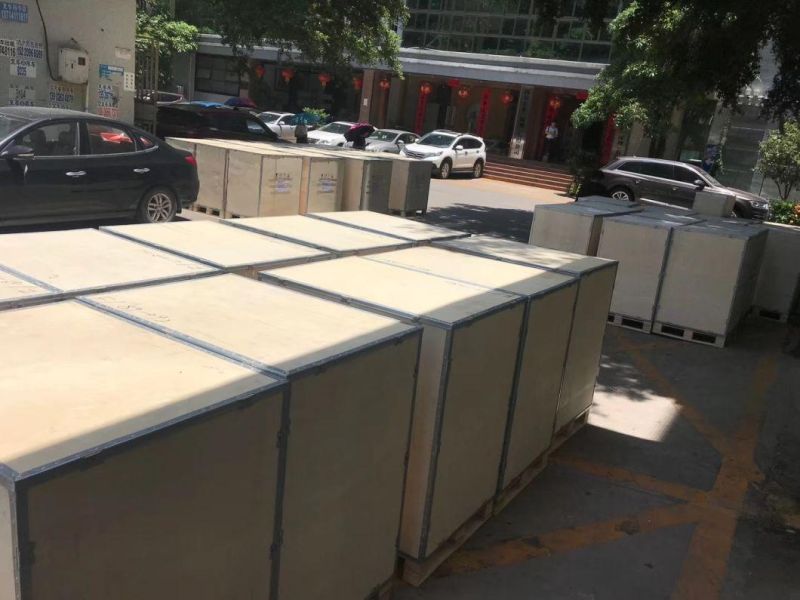

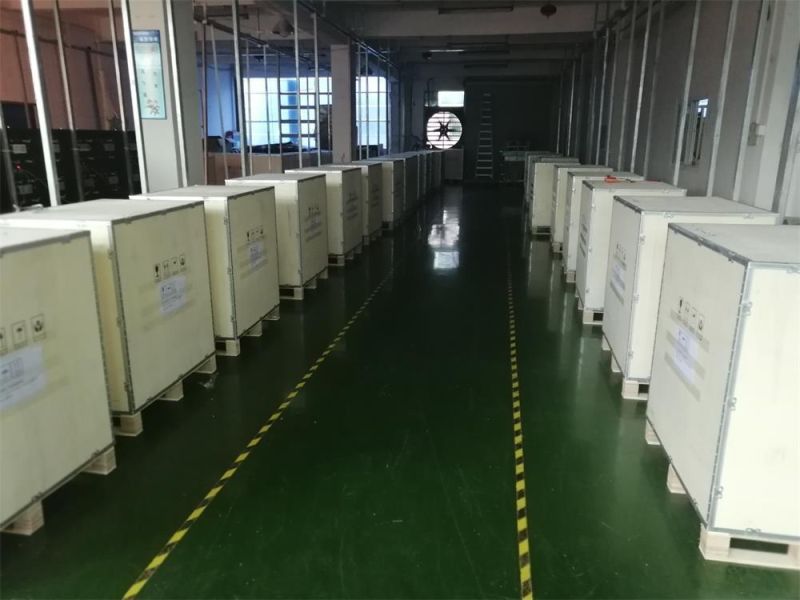

Package:
SERVICE:
Pre-producing:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
In Producing:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After-service:
1. 2 years warranty
2. 1% spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
