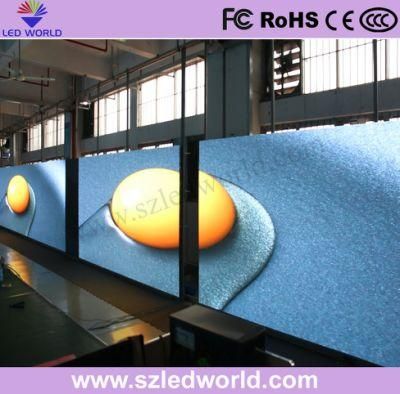

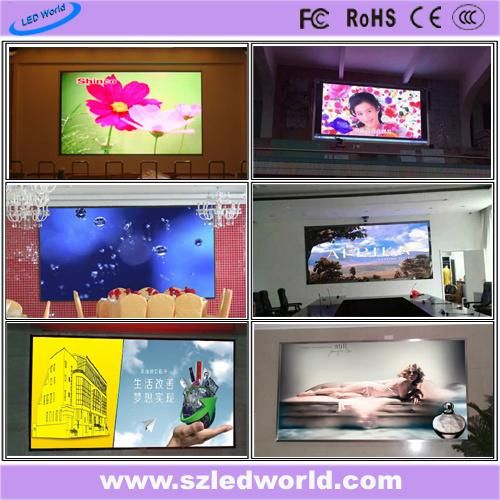

Pixel Pitch (mm)1.56mm1.6671.92mm2.5mmPixel density(pix/m2)409600360000270400160000LED TypeSMD1010SMD1010 SMD1010 SMD2020Viewing AngleH 160°,V 160°Drive Method1/321/301/261/32Color Depth(nits)≤800≤1000≤1000≤1000Color Depth16bitRefresh Rate(Hz)≥2800≥1200≥2800≥2800Module Size(mm)200×150×3Cabinet Size(mm)400×300×75Cabinet Materialdie casting aluminumCabinet weight(kg)5.0kgVoltage110/240VAverage.power(W / m2)400330370330Max.power(W / m2)1200100011001000IP GradeIP31Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000P2.5 led display Project case:

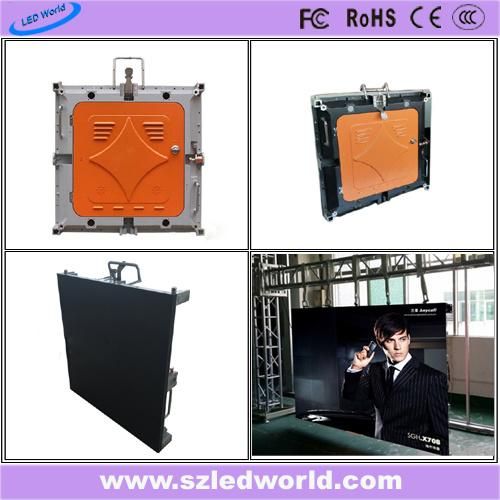

product detail:

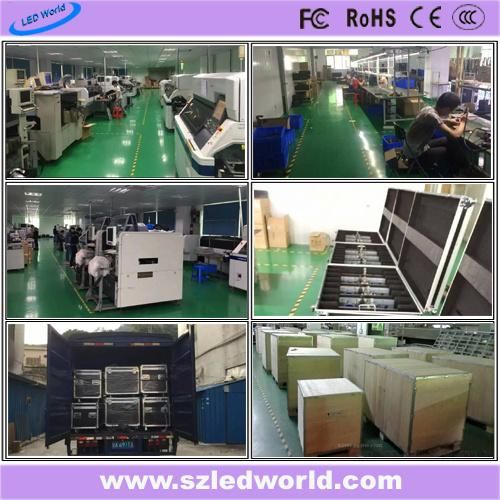

Workshop and Packing:


After sales maintenance
 1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC  and 60ºC when you receive the goods from the customs

2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.


3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.
Maintenance:
LEDWORLD provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts.

You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance.

Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.
