Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving methodStatic constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.202 / MAX.599


Screen parameters:

 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥7500cd/sqm6Drive MethodStatic scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours
Product photos:

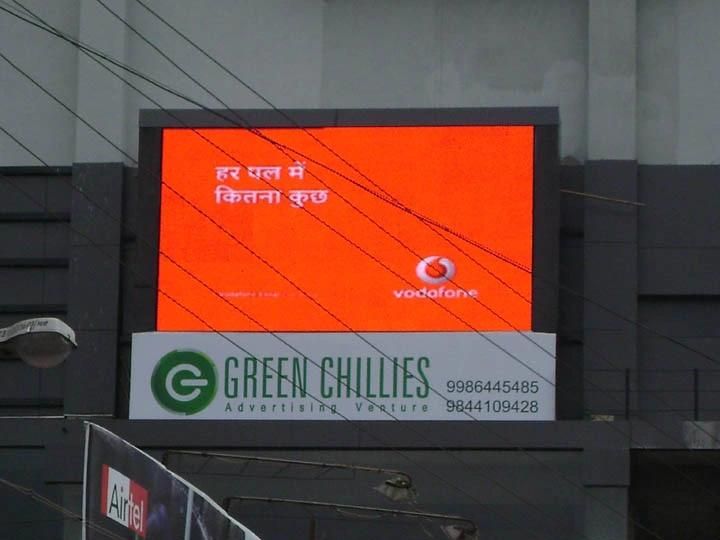

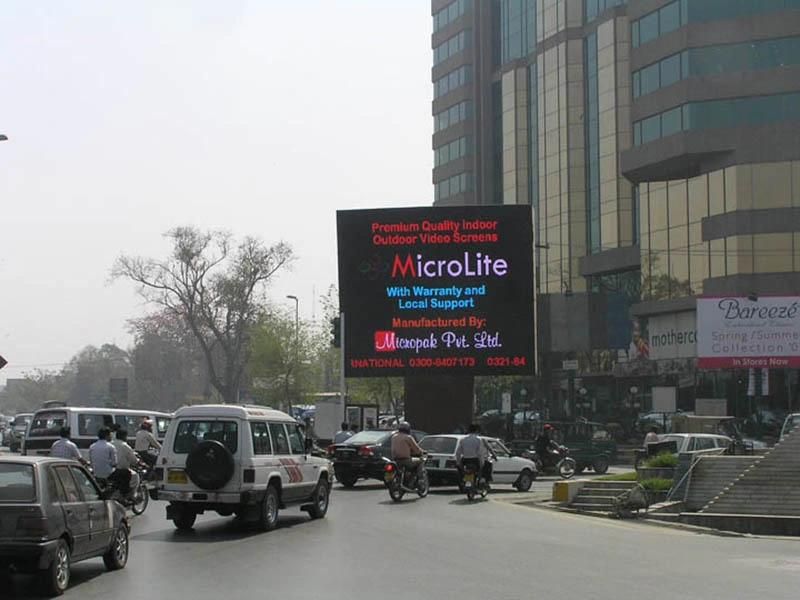

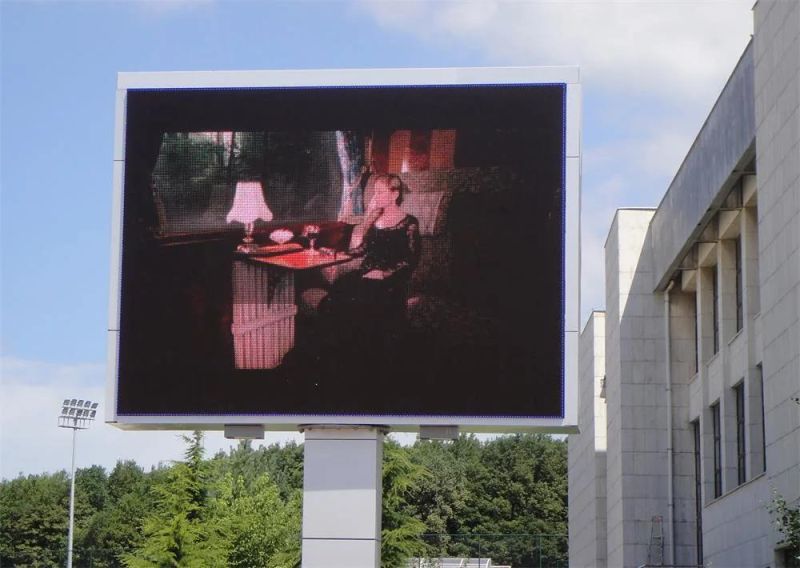

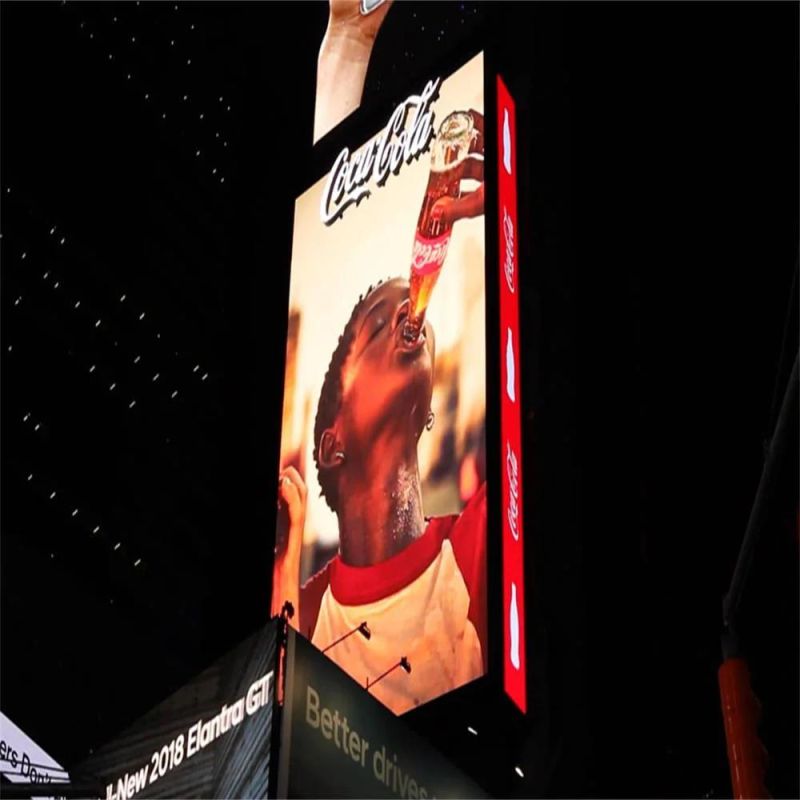

LED display Project With CKGLED Brand:

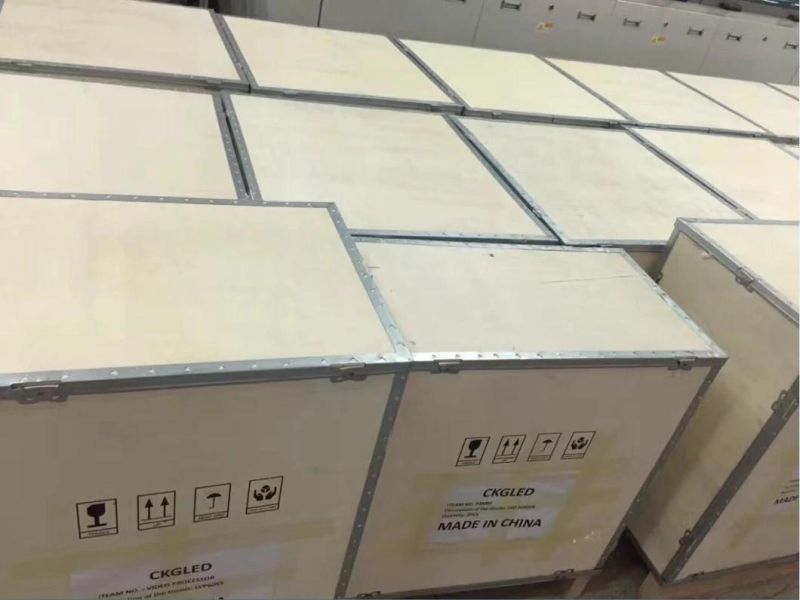

Wooden case Package:



Certificates:
