Factory Price P16 Waterproof Full Color DIP LED Outdoor Display
Shenzhen Foxgolden Technology LimitedBase Info
Description
Technical parameterUnit module Module size 256*128mm Pixel pitch 16mm Pixel density 3906dots/m2 Pixel configuration 1R1G1B Led specification Φ 5ellipse Pixel resolution W: 16dots*H: 8dots Mask material Soft mask Cabinet Dimension 1024mm*1024mm*170mm Quantities of module 32pcs Power supply 2-6pcs Thermal discharge Fan*2pcs Total weight 55kg Best viewing angle 16-300m Temperature Storage: -35° C~+85° C Working: -35° C~+85° C Thickness 17cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 250-500W Max. Power consumption ≤ 560W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device Static scanning Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 8000cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player

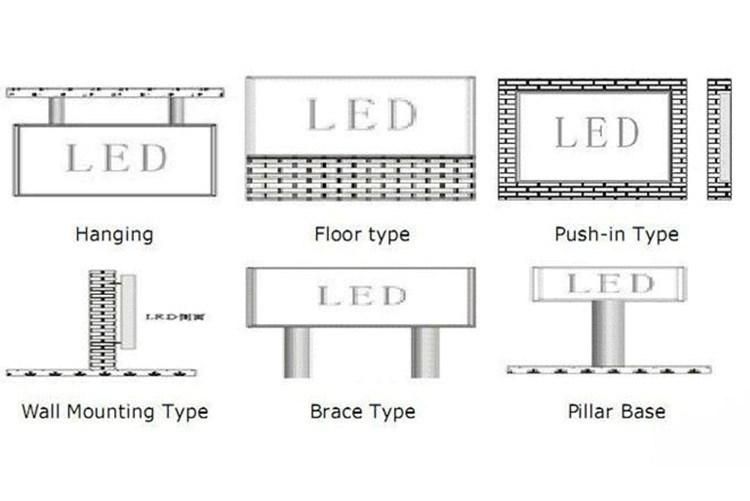

Different Installation
Company Information
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Miss. Vita Fang
Sales Engineer
Foxgolden Tech Co., Ltd
Tel: +86 0755 8425 3359
Fax: +86 0755 8425 3360
Mob: +86 182 7143 9309
Website: foxgolden.en.made-in-china.com
