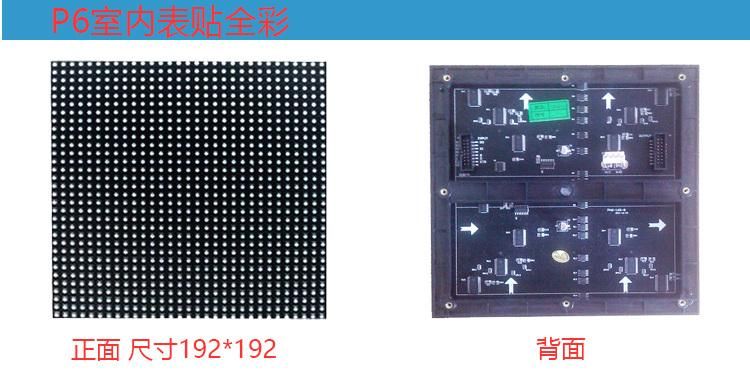

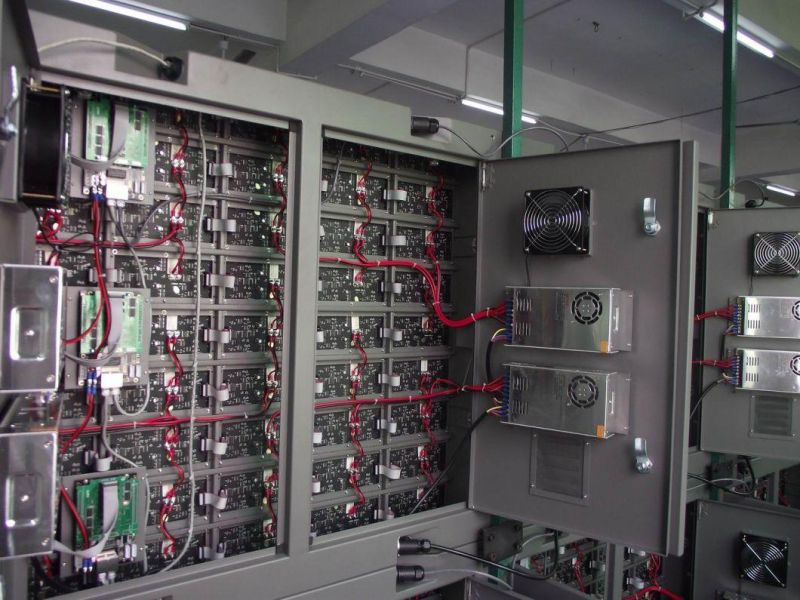

Technical parameterUnit moduleModule size384*192mmPixel pitch6mmPixel density27777dots/m2Pixel configuration1R1G1BLed specification3528 SMD 3 in 1Pixel resolutionW: 192dots*H: 96dotsCabinetDimension768mm*768mm*120mmQuantities of module32pcsPower supply4pcsThermal dischargeFan*2pcsTotal weight40kgBest viewing angle140°TemperatureStorage: -35degree~+85degreeWorking: -35degree~+85degreeThickness12cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption900W/m2Max. Power consumption≤ 1100W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving device1/8scanningDrive typeConstant Current driver ICRefresh frequency1800HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 2200cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode768*768Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player







Website:http://foxgolden.en.made-in-china.com

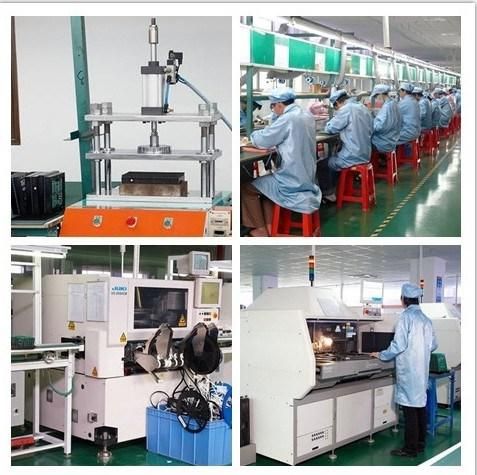

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA .
The best quality products and excellent service will be provided to you by our professional team.
