Basic Info.

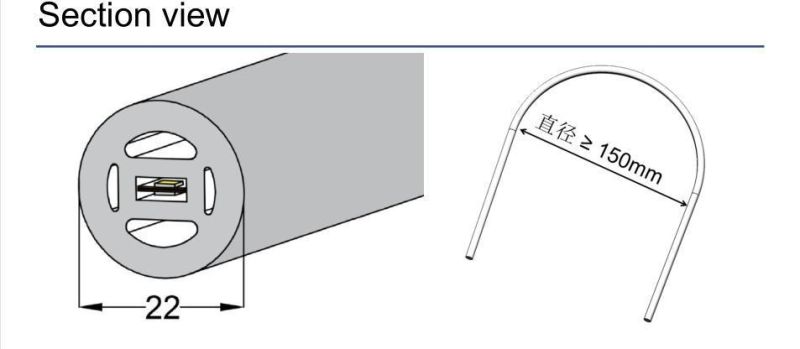

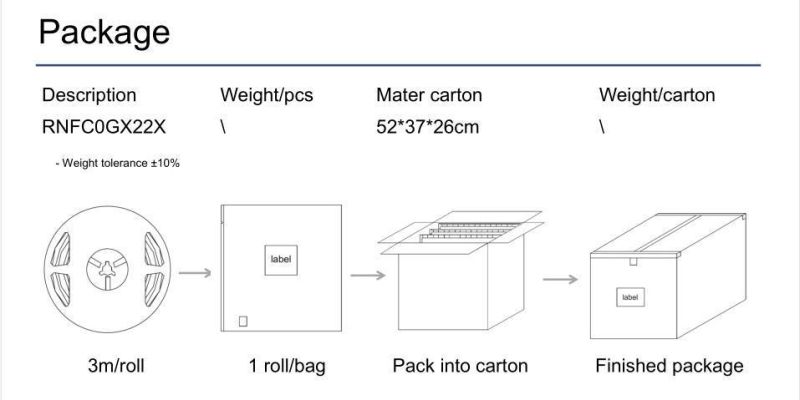

Model NO. RNFC0GX22X Size Diameter 22mm Lumens Red 175lm/M, Green 100lm/M, Blue 55lm/M Transport Package Carton Packing Specification 3M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Beam angle 360 degrees DC12V/DC24V 2835 flex neon LED strip
Application
Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Main features
- Excellent performance 2835 package SMD LED
- High quality FPC, more stable performance
- 360° view angle emitting, wide range lighting
- Excellent weather and corrosion resistance
- CCT:2700K-6500K, other color available
- Warranty:3years

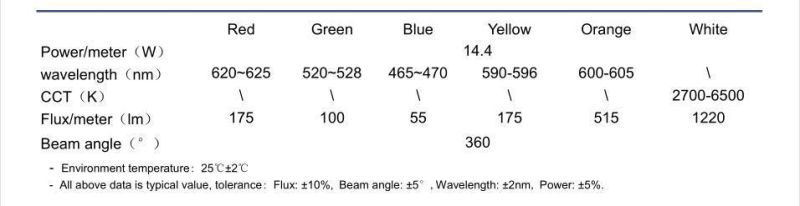

Main Parameters





Instructions
- The diameter of extension wires should be considered based on possible maximum current, load power
and wire loss.
- The LED neon strips itself and all its components may not be mechanical stressed.
- To avoid mechanical damage to the connecting cables, the LED neon strips should be attached securely
to the fixture.
- Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec-
trical and safety standards. Only qualified personnel should be allowed to perform installations.
- Please ensure that the power supply/controller is of adequate power to operate the total load.
- Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips.
- Pay attention to standard ESD precautions when installing the strips.

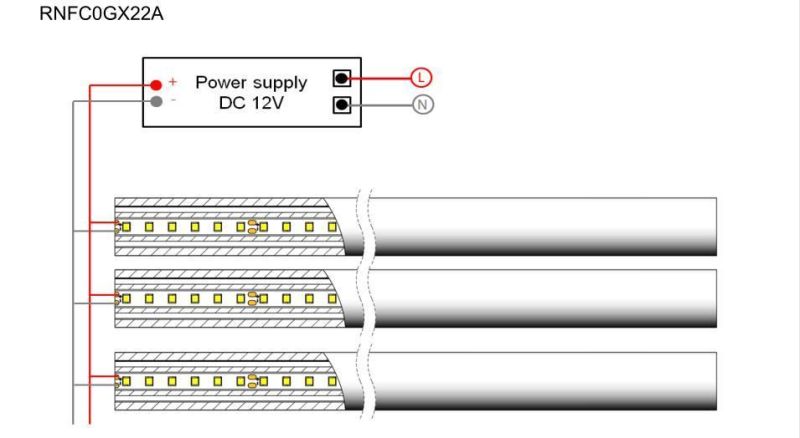

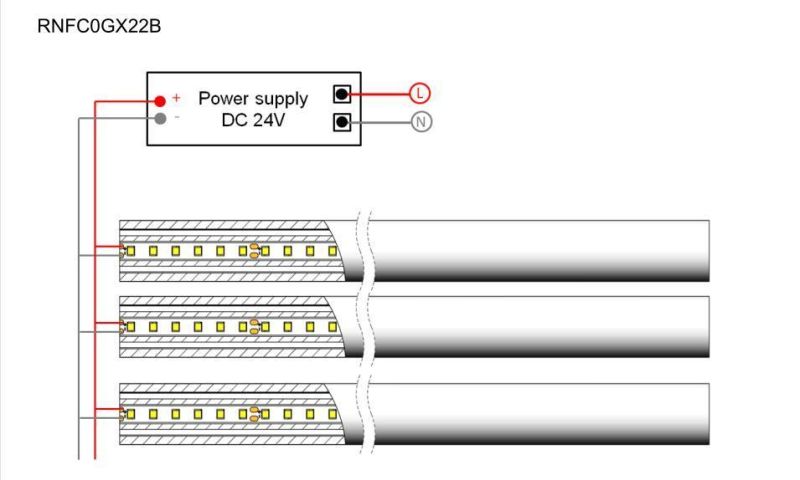

- The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over
voltage and over loading protection function etc.
- Must have extra power supply if the working length exceeds the maximum run length.
- Can not be cut for 360° view angle neon product.
