Basic Info.

Model NO. 3.91mm System Operating Platform Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP65 Certification CE, RoHS, UL, CCC, ETL Cabinet Size 500X500X88 LED Type SMD2020 Grey Scale 16bit Module Size 250X250 Brightness ≥1500 Refresh Rate ≥3840 Transport Package Flight Case Specification 500X500X88mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:


  Angle adjustment: adjustable within -15°- +15°with meter.


  Seamless inside curve / outside curve.


  Automatical calibration: avoid complicated and time-consuming work,no need debugging after changing led modules.


  Fast connection: strong stainless steel locking system.


  Standard cabinet and light weight: customized die-casting aluminum cabinet 6.8kg only per cabinet.







SPECIFICATIONS:

NO.	Parameter	Specifications
1	Model	XII3
2	Pixel Pitch(mm)	3.91
3	LED	SMD2020
4	Screen Resolution	65536dots/sqm
5	Scan Method	1/16
6	Cabinet size(L*H*W)	500x500x88mm
7	Cabinet(Kg)	6.8KG
8	Viewing angle	H:140° V:140°
9	Grey Scale	16bit
10	Refresh rate(HZ)	≥3840
11	Module size(mm)	250X250
12	Brightness(nits)	≥1500
13	Working Voltage(V)	AC 100~240V / 50~60Hz
14	AVE. power consumption	230
15	MAX. power consumption	560
16	IP grade	IP65
17	controller	Nova
18	Working humidity	10~95%RH
19	Storage humidity	10~90%RH
20	Working temperature	-30ºC~65ºC
21	Storage temperature	-40ºC~70ºC
22	Compliance	CE / RoHS / FCC

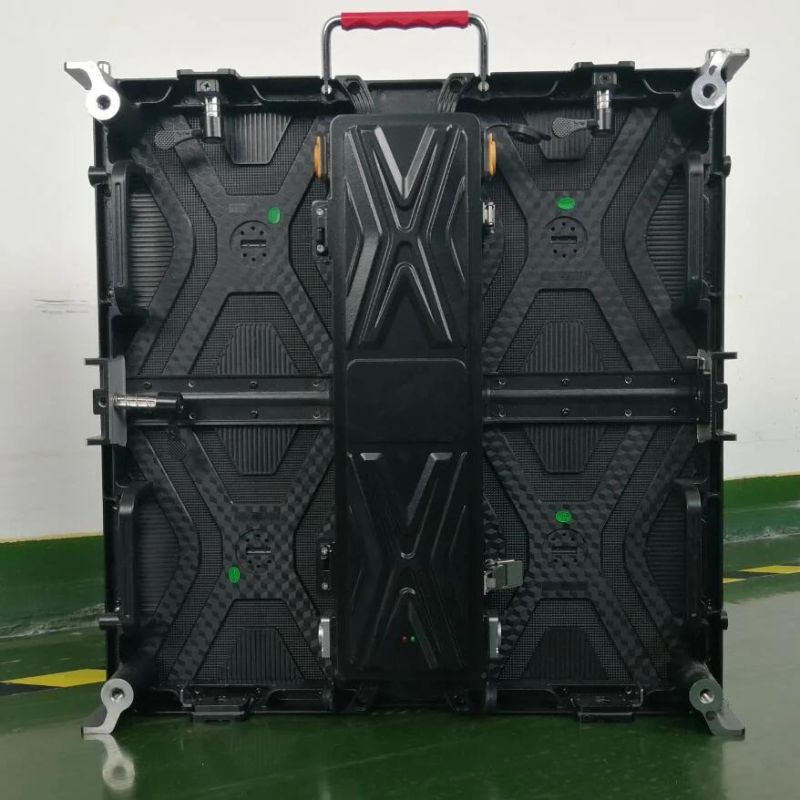

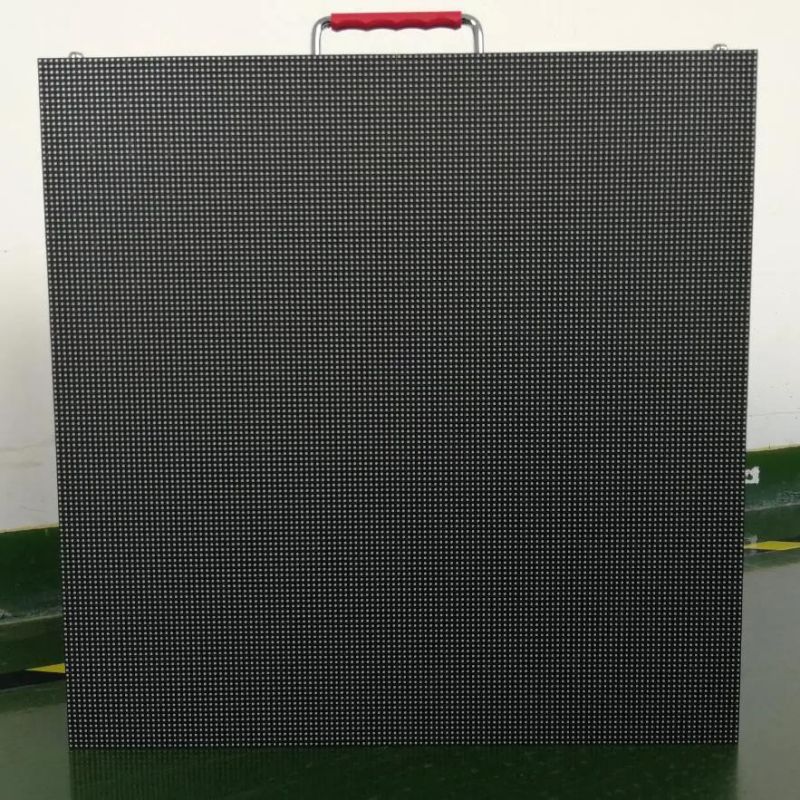

PRODUCTS PICTURES

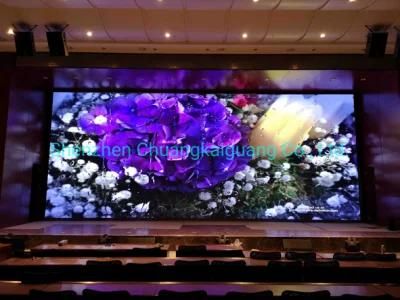

WORKING ENVIRONMENT

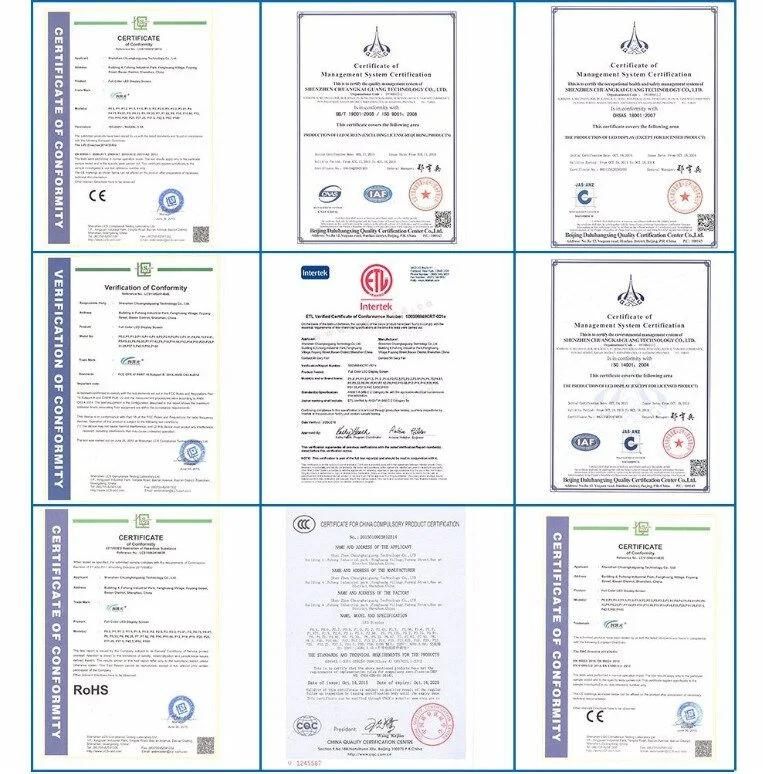

CERTIFICATE


Exihibition



PACKING



Our Service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
