Basic Info.

Model NO. QCP5 Pixel Density 40000 Pixels/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO9001, CB View Angle(H/V) 140/140 Degree Brightness 1500CD/Square Meter Warranty 2 Years View Distance 5m-100mm Life Time 100, 000hours Module Size 320*160mm Module Pixel(Dots) 64*32 Dots SMD Type SMD2121 Transport Package Wooden Case or Flight Case Specification Customized Size Trademark Qichuang Origin Guangdong, China HS Code 8528591090 Production Capacity 10000 Square Meter/Square Meters / Month

Product Description

Product Description




LED is the abbreviation for light emitting diode. LEDs are arrayed breadthwise and lengthways with stable pitch that form LED matric-LED Display Screen. Each LED of the LED Display has a corresponding luminance control circuit. A computer controls the circuit, the circuit influence the brightness of each LED, then form the picture or letters we desire in the led display screen.



 Technical Parameters:

Pitch Size	5mm
Module Size	320*160mm
Module Pixel(dots)	64dots*32dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1
LED chip	Silan
Color scale	65536degree/16777216colors
Pixel density	40000pixels/square meter
View angle(H/V)	≥140/120degree
Brightness	≥1500cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	3--100m
Power consumption	100-1600W/square meter
Net weight	35kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	600Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz
Operating system	Windows98/Me/2000/Xp
Drive mode	constant current driving, 1/8 scan
Display mode	VGA640X480-VGA1600X1024
Protections for indoor display	IP31
Maintenance way	Rear access
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
Drive mode	1/16 scan, constant current

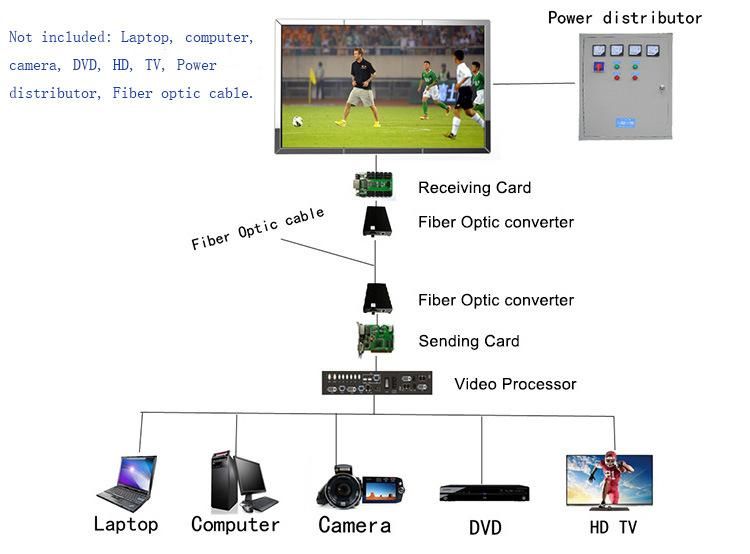

 Connection System Diagram:



Advantages of LED Display:1) High Definition and can be adjusted, can showing DVD, TV, Dynamic images, VCRS, graphs, letters and animations for 24 hours. Sharp, colorful, synchronized with computer monitor. Waterproof, Sun-screen, antistatic, damp proof, anti-freeze, anti-thundering etc.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect of led sign.
4) Big viewing angle to horizontal line and vertical line, can see at every angle at this range, no picture change, no   color excursion.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair for led sign!


 Company Information

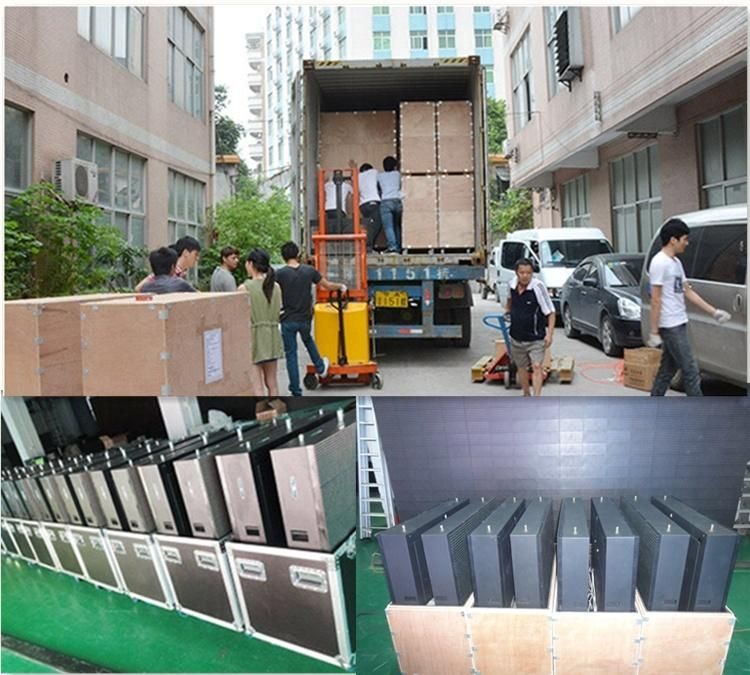

Packaging & Shipping




Our ServicesOUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protection.

 FAQWhy choose Guangzhou Qichuang Electronic & Technology Co., Ltd.
1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.
2),High brightness and support brightness automatically adjustment.
3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.
6),Well before, in,after-service.all for our customer reassurance.
