Basic Info.

Model NO. P8 Outdoor LED display Pixel Density 15625dots/M2 Scanning Mode 1/5 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO9001 Product Name Outdoor LED Display P8-5s Driver IC Mbi5124 or Icn2153IC Bightness CD/Sqm 5000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Refresh Rate 1920Hz Color Temperature 6500-9500K Warranty 3 Years Cabinet Size 960mmx960mm Transport Package The Factory Packaging Specification p8-320mmx160mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

P3 P4 P5 P6 P8 P10 Outdoor 3D Advertising Screen LED display


1. UL, CE&RoHS&EMC
2. Easy operation, installation
3. High brightness and clear Video
4. Warranty 3 years
5. Good waterproof
6.LED display manufacture
7.Pixel Density: 15625


HOW DOES AN LED DISPLAY WORK?

An LED display consists of many closely-spaced LEDs. By varying the brightness of each LED, the diodes jointly form an image on the display.

To create a bright colour image, the principles of additive colour mixing are used, whereby new colours are created by mixing light in different colours. An LED display consists of red, green and blue LEDs mounted in a fixed pattern. These three colours combine to form a pixel. By adjusting the intensity of the diodes, billions of colours can be formed. When you look at the LED screen from a certain distance, the array of coloured pixels are seen as an image.














Product descripition:

Product Model	Outdoor Fixed F10-2S	Outdoor Fixed F8-5S	Outdoor Fixed F6-8S	Outdoor Fixed F5-8S
Pixel Pitch	10 mm	8 mm	6 mm	5 mm
Module Size	320x160 mm	320x160 mm	192x192 mm	160x160 mm
Module Resolution	32x16 pixels	40x20 pixels	32x32 pixels	32x32 pixels
LED	SMD3535	SMD2525	SMD3535 or SMD2727	SMD2727

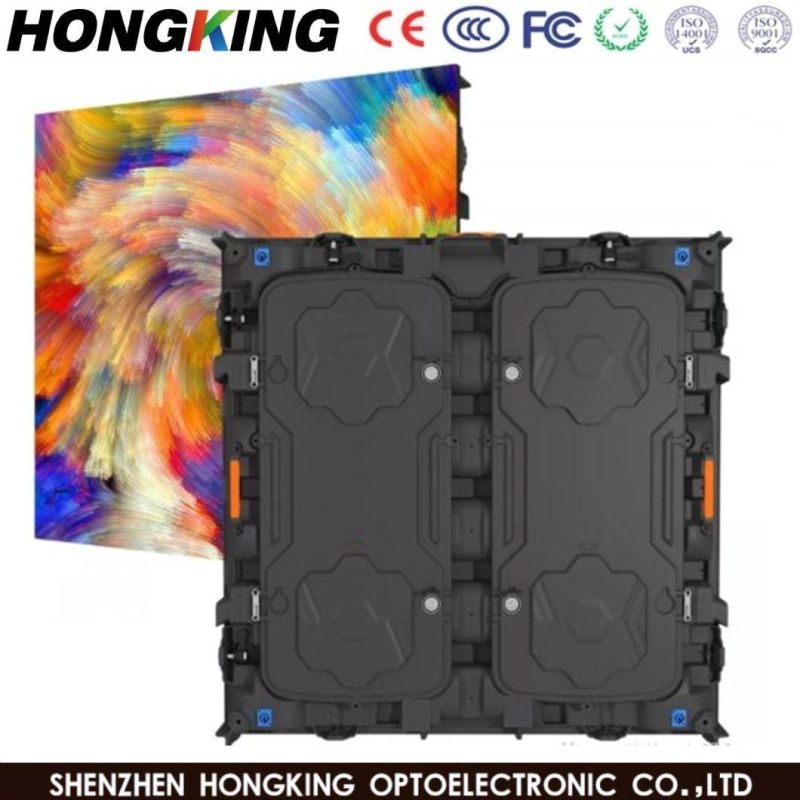

Standard Cabinet Size	960x960 mm	960x960 mm	768x768 mm	960x960 mm
Standard Cabinet Resolution	96x96 pixels	120x120 pixels	128x128 pixels	192x192 pixels
Standard Cabinet	Iron	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	15625 Pixels/m2	27777 Pixels/m2	40000 Pixels/m2
White Balance Luminance	≥7000 nits	≥5000 nits	≥6500 nits	≥6000 nits
Gray Scale per Color	65536 grades gray(16 bit)	65536 grades gray (16 bit)	65536 grades gray (16 bit)	65536 grades gray(16 bit)
Contrast	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Refresh Frequency	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Visual Angle (Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	650 W/m2	900 W/m2	1000 W/m2
Average Power	200 W/m2	250 W/m2	300 W/m2	350 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI, HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI, SDI,DP	AV,Video,VGA,DVI,HDMI, SDI,DP	AV,Video,VGA,DVI,HDMI, SDI,DP












Request for LED Display Quote

Please provide the following information so we can offer best service for you . After this we will provide details quote to you as soon as possible.

1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
()Indoor  ()Semi-Outdoor  ()Outdoor  ()Mobile  ()Trailer

2,What is the Length of your LED Display requirement  (required)
(  )Metres

3,What is the Height of your LED display  requirement? (required)
(  )Metres

4,What is the Optimal distance viewing to the LED Display? (required)
(  )Metres

5,What will be displayed on the LED display? (required)
()Text  ()Pictures  ()Videos  ()TV/Camera

6,I will usually program the LED display with the following frequency:
()Daily/Weekly & Disconnect  ()Stream Content Continually Online

7,I would like to connect to the LED display using: (required)
()Computer Connection control
()WiFi Connection control
()3G Connection control

Please upload any images that may assist with an understanding of your led display requirement:
Upload Images()

Yours Details
Full Name (required)

Email Address (required)

Contact No (required)

---------------------------------------------------------------------
Thanks and best regards

Tom xie

Shenzhen hongking optoelectronic co.,ltd
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen




What are the benefits of Custom LED Signs?
Unlike traditional methods of marketing, Custom LED Signs, and Digital signs in general have a unique combination of being incredibly cost effective over the duration of their very generous lifespan, while also being very robust, easy to use, and relatively inexpensive. In fact perhaps the only drawback would be the initial cost for large Custom LED Signs, but that is quickly mitigated in just a year or two by increased revenue.

In fact, according to the Small Business Administration, Custom LED Signs can increase a business's ROI (return on investment) anywhere from 15 to 150%!

The cost per impression on Google Ads can range anywhere from ten cents - for not very searched keywords, to 54.91$ for the keyword "Insurance". As a comparison, your new Custom LED Signs can cost you only 0.01$ to 0.74$ per impression depending on the size, scale, and pitch of your sign!


What is the difference between Custom LED Signs and other form of signs?
Custom LED Signs differ from other types of signage such as: print signs, backlit stationary signs, and billboards in two unique ways. Customizability, and flexibility!

You see, Custom LED Signs can be programmed to display a unique message for any event, sale, promotion, BOGO, or call to action! Not only that, but these messages can vary from morning, afternoon, and evening! You can have a different message or promotion for every hour of every day!
