P5 Full Color LED Display Indoor Outdoor LED Display Screen (P2.5 P3 P4 P6 P10)
Shenzhen Oscarled Co., Ltd.Base Info
Description
Overview
Product Description
Chapter 1 Specification and main technical index(1)Construction Description 1,Screen consists of cabinets ,cabinet consist of modules
2,modules consist of pixels and each pixel contains 1R1PG1PB total of 1 LED lamps (2)Professional analysis No. Professional analysis content Analysis item 1 Color matching analysis To make color matching reach the best white balance effect,the color matching rate of different color brightness is R:G:B/3:6:1(SMD2121) (3)Pixel Parameter No. Item Parameter 1 Pixel pitch PH5mm 2 Pixel configuration 1R 1PG 1PB (4)Tube Chip Parameter No. Item Wavelength Brightness 1 Red tube chip 620-625nm 800-1000mcd 2 Pure green tube chip 520-525nm 2200-3000mcd 3 Pure blue tube chip 465-470nm 300-600mcd (5) Electricity parameter 1 Pixel density(dots/M2) 40000dots/ m² 2 White Balance Brightness ≥800 (cd/m²) 3 Brightness Adjusted 256 grade automatically, 8 grade manually 4 Color temperature(K) 5000-9500 5 View Angle Horizontal:140°; Vertical: 110° 6 Best viewing distance(m) 5-30m 7 Communication distance 120 meters by LAN cable(without relay)(optical fiber transmission 500M-10000M) 8 Drive Method 1/16scan constant current 9 Gray Grades 16384 levels for each color 10 Display Color 16,777,216 11 Refresh Frequency (Hz) ≥3840 12 Control Mode Synchronous controller 13 Signal interface DVI 14 Input signal Video: PAL/NTSC etc 15 Display format 800 * 600,1024 * 768, 1280*1024 16 Software Support windows series system 17 Waterproof No 18 Protection IP43 19 Working temperature(ºC) (-20ºC~+60ºC ) 20 Humidity(RH) 10%-90%RH 21 LED Lifetime(hours) ≥100,000 22 Whole Display Flatness Less than 1mm Juncture 23 Power Consumption Average:≤150w/m²;Maximum: ≤700w/m² 24 Operating Voltage AC100V±220V 50~60HZ 25 Operating Platform WINDOWS(WIN10,WIN8, WIN XP)
Application CasesInstallation Instructions
Packaging & Shipping
After Sales Service
Product Parameters
Chapter 1 Specification and main technical index
2,modules consist of pixels and each pixel contains 1R1PG1PB total of 1 LED lamps

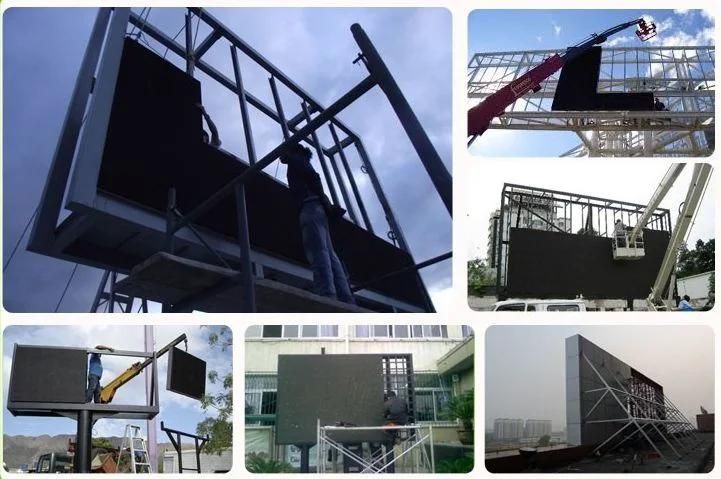

Application CasesInstallation Instructions

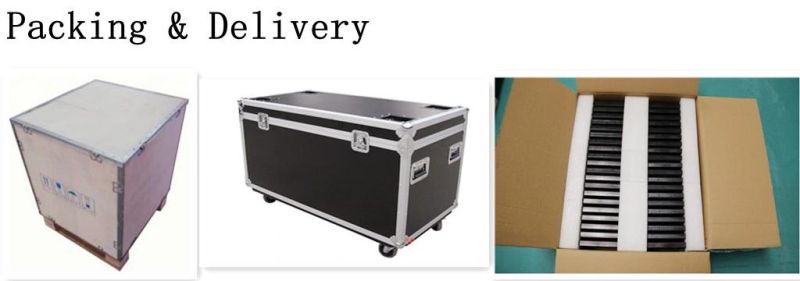

Packaging & Shipping
After Sales Service
Certifications
