P5 SMD triple technical parametersUnit ModuleItemParameterModel NumberLW-MI5Module size160mm*160mmPixel pitch5mmPixels Density40000point/m2Pixel configuration1R1G1BPackage modeSMD3528Pixel resolution32dots(W)*32 dots(H)Max Power consumpion30WWeight0.3kgDrive typeConstant driveScan mode1/16scanPort typeHUB75-ABrightness of white balance≥1500cd/m2Package of Carton467*387*360mmQuantity80pcsG.weight Unit ModuleDimension640mm*640mmQuanty of Module16Power supply5V/40A*2 pcsThermal dischargefan 2pcsPixel per cabinet128*128Best viewing distance5M~20MBest viewing distance160°(W) 120°(H)Temperaturestorage:-35ºC~+85ºCworking:-20ºC~+50ºCOpration humidity10%-95%Thickness85mmPowerWorking voltageAC220V±10%Average Power consumption915W/S
Our Company:
Shenzhen LED WORLD is professional R&D,production and wholesale LED display business,The company's single-minded focus on the LED display products,professional production technology,production quality.Wholesale LED display will be pushed to a new level.We adhering to the "customer first,quality of integrity ,innovation,band" business philosophy ,won the majority of customers and the industry alike.

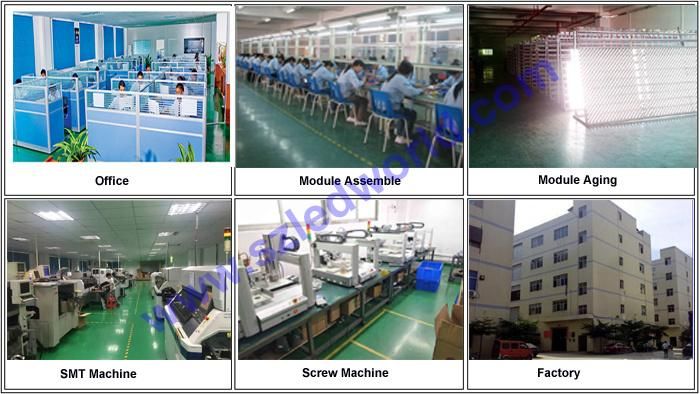

Our Factory:




Why Choose Us:
1. Perfect lighting Mixture effect :Because of the 3 in 1 special design,the distance is very close between the 3pcs led chips,suitable for viewing at very close distance;
2. Price Advantage: We have the best competitive price at the market, also have the same even better quality;
3. Quality advantage: From material to finished product, from design to produce, we control all steps;
Respond within 24 hours;
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001;


Certification:
