Basic Info.

Model NO. HM24V-SMD5050120 Specification 20mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.

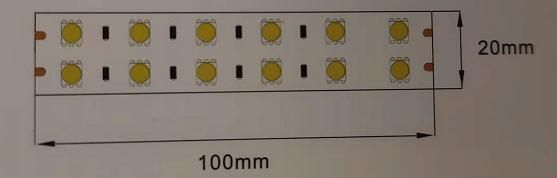

Product Dimension




Optical parameter
LED Type: SMD5050
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 79.9/81.6/83.3/85.1Lm/w
Lumen Output/meter: 2300Lm/m (767Lm/ft)
                                   2350Lm/m (783Lm/ft)
                                   2400Lm/m (800Lm/ft)
                                   2450Lm/m (817Lm/ft)



Electric parameter

Input Current/m: 1.20A/m
Input Voltage: DC24V
Power/M: 28.8W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 120LEDs/m
Size of Section:  100mm
LEDs of Section: 6 LEDs

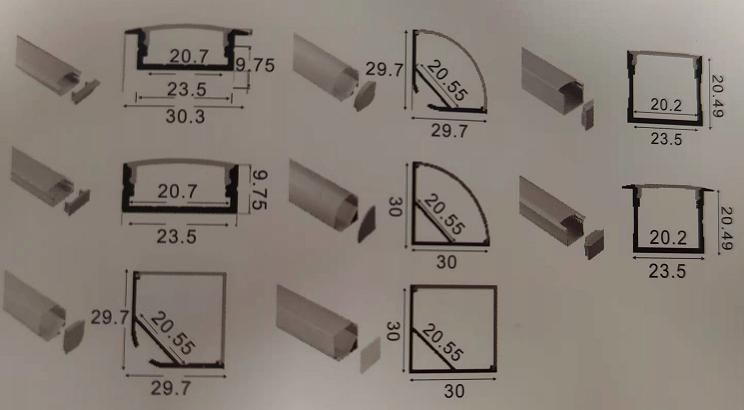

Recommended Profiles
