Basic Info.

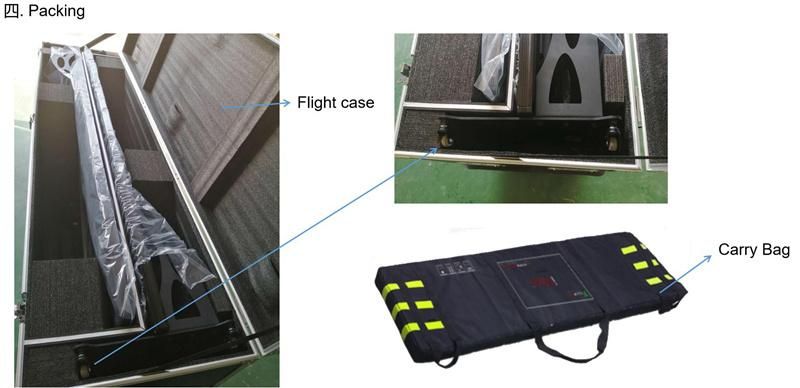

Model NO. P2.5 System Operating Platform WIN XP Application Stage Performance, Advertising, Shopping Guide, Exhibiation, Airport IP Rating IP40 Certification CE, RoHS, CCC, ETL Weight 28kg Warranty 2 Years Panel Material Aluminum LED Light Nationstar Power Supply Meanwell Refresh Rate >2880Hz Contrast Ratio 4000:1 Pixel Configuration SMD2121 Expected Lifetime 100000 Hours MOQ 1piece Transport Package Flight Case or Plywood Case Specification 560x1890mm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 10, 000sqm/Month

Product Description

Movable light weight P2.5 Poster Display with Nationstar Leds

P2.5 Poster Display Features
Ultra Slim and Lightweight                                                                      Simple and Easy Maintenance

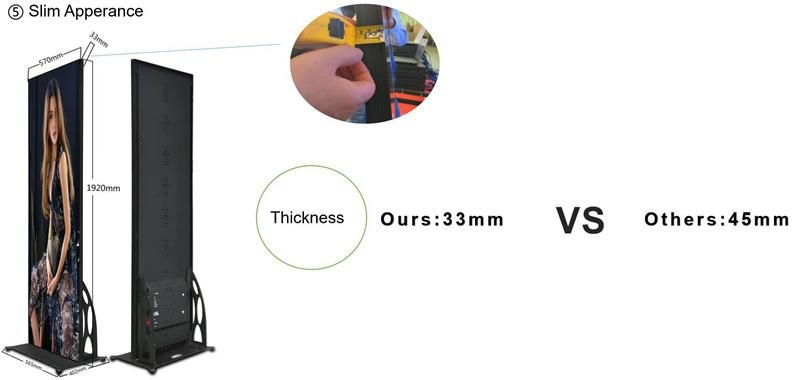

Ultra slim edge 6mm, display thickness 33mm                                           Simply assembled

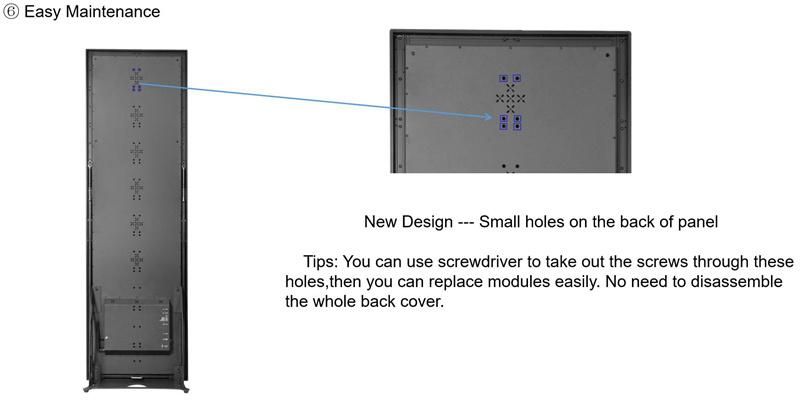

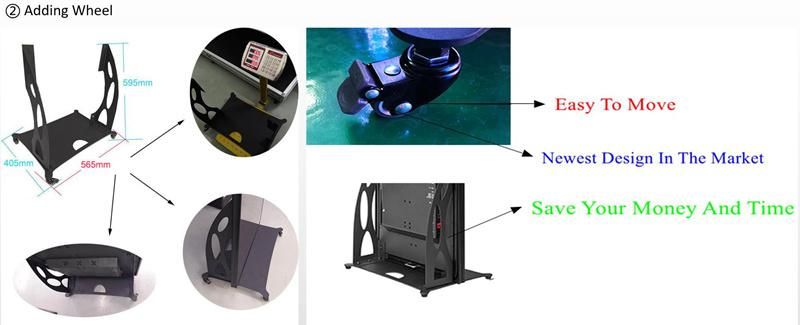

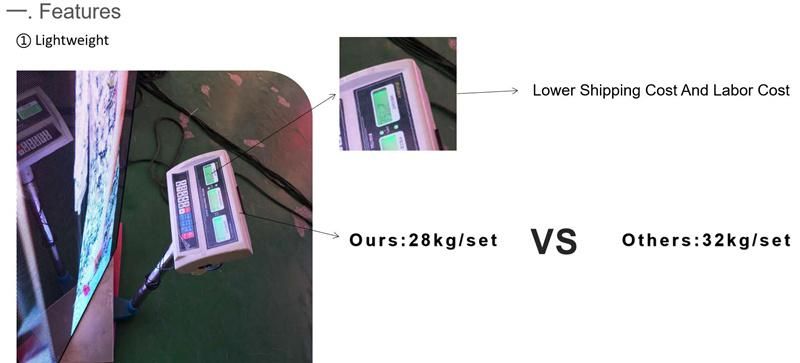

Net weight 28kg per set    can add Wheel                                                 Magnetic modules for front access


Multiple and Fast Installation                                                                     Superior Electrical Features

Variable installations, hanging, wall mounted,                                               Refresh rate 2880Hz
 ground standing, bracket standing                                                               contrast ratio 4000:1

Available for horizontal assembling as a whole screen                                160-degree viewing angle

P2.5 Poster Display Specs


	BS-2X
Physicla Pitch	2.5 mm
Pixel Configuration	SMD 2121
Pixel Density	160,000 pixels/m²
Module Dimensions (W*H)(mm)	240*120
Panel Dimensions (mm)	customized
Physical Resoulution of Modules (W*H)	96*48
Weight	8.2 kg/m²
Gray Scale	16 bit
Colours	281 trillion
Contrast Ratio	4,000:1
Average Power Consumption	9 W
Max Power Consumption	12 W
Brightness	>1,000 nits
Refresh Rate	>1,920 Hz
Scan Method	1/40
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,000Hrs
Srevicing	Front
IP Rating (Front/Rear)	IP 40
Operating Temp/Humidity	-20ºC-60ºC/10%-90%
Storage Temp/Humidity	-40ºC-80ºC/10%-90%

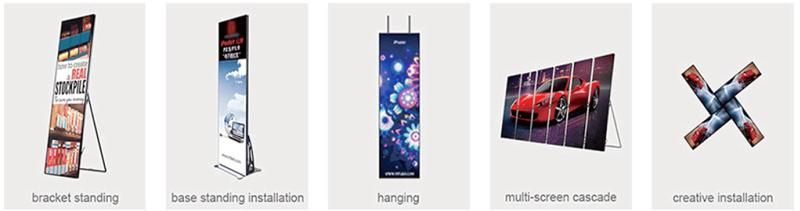

Variable Installations as below

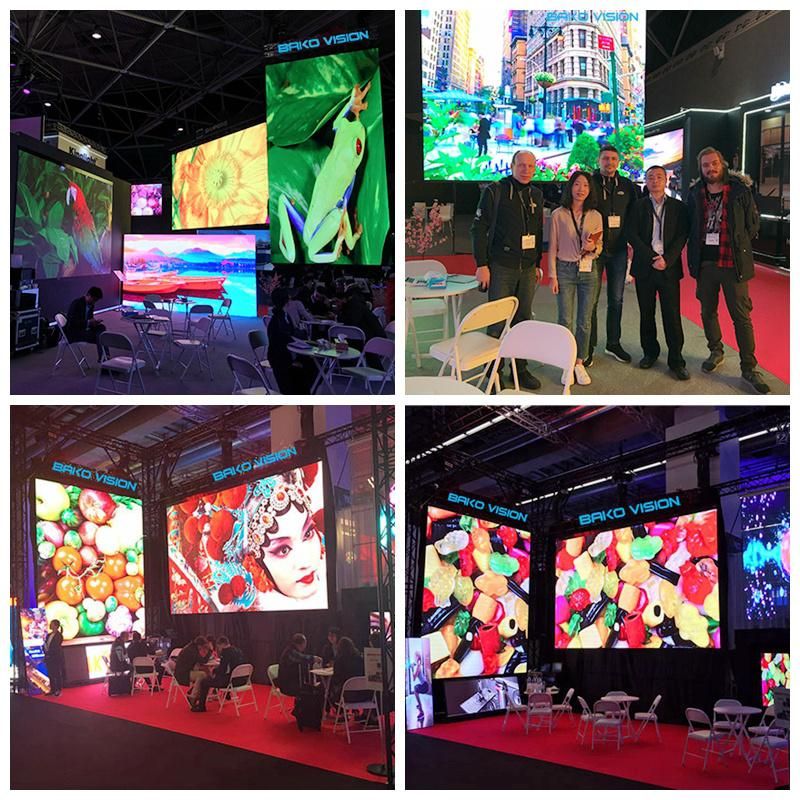

Part of Exhibitions during this year





FAQ:
Q1. Are you trading company or manufacturer?

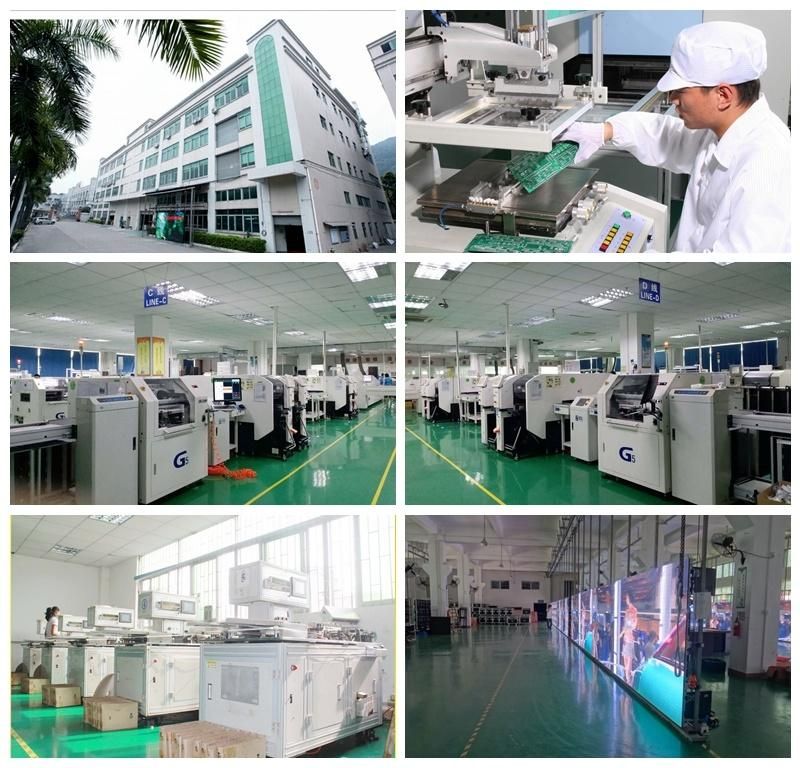

A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?
A: T/T, Western Union, L/C, or other

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year,
so we can visit you if you need at that time.
