10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

Parameter1ModelF162Pixel Pitch(mm)163LED Configuration1R1G1B4LED TypeDIP3465Screen Resolution3906dots/sqm6Module size(mm)256x2567Module resolution(dots)16x168Scan methodStatic constant current drive9Cabinet size(mm)1024x102410Cabinet resolution(dots)64x6411Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥750013Viewing angleH:120°/  V:50°14Grey Scale16bit15Refresh rate(Hz)≥350016Ave. power consumption (W/sqm)23017Max. power consumption(W/sqm)75018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

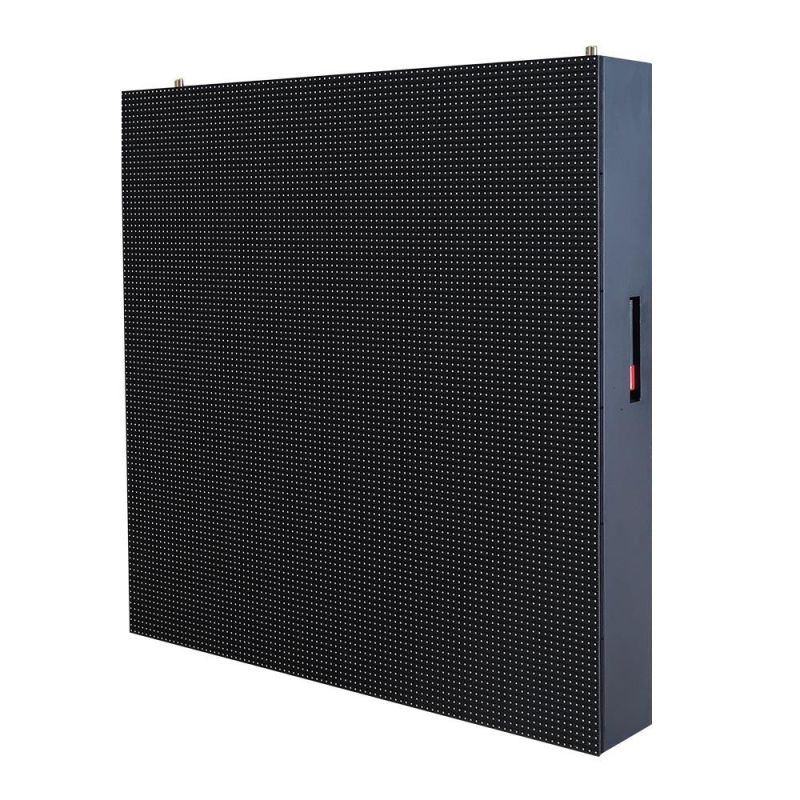

LED panels: can be customized
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

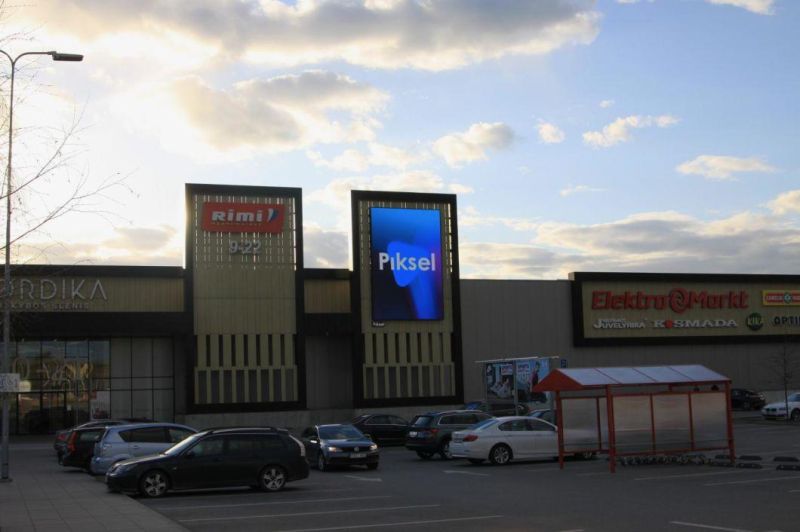

Wall -mounted on the building :

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

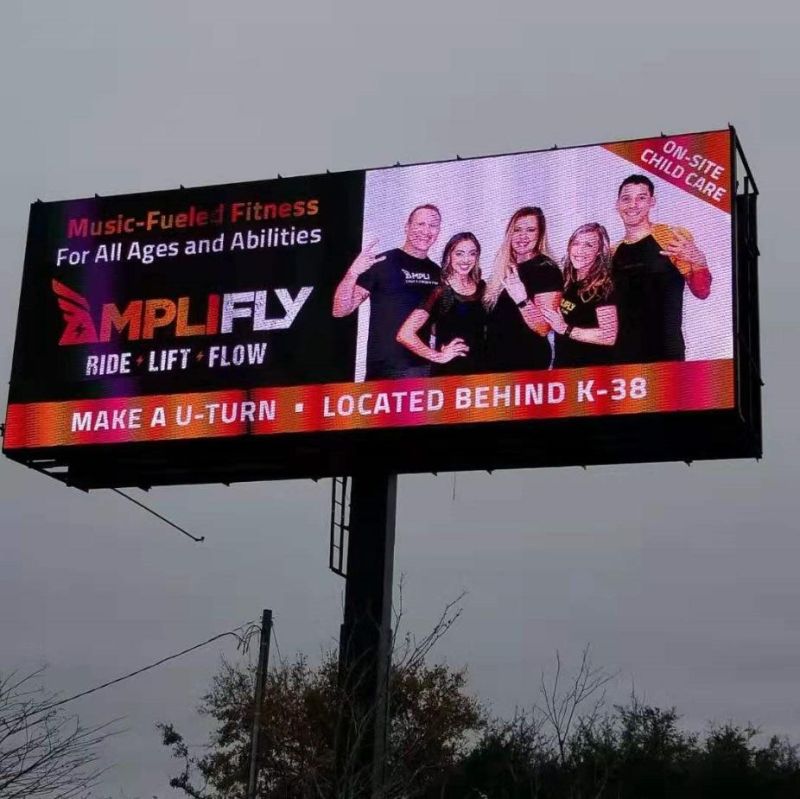

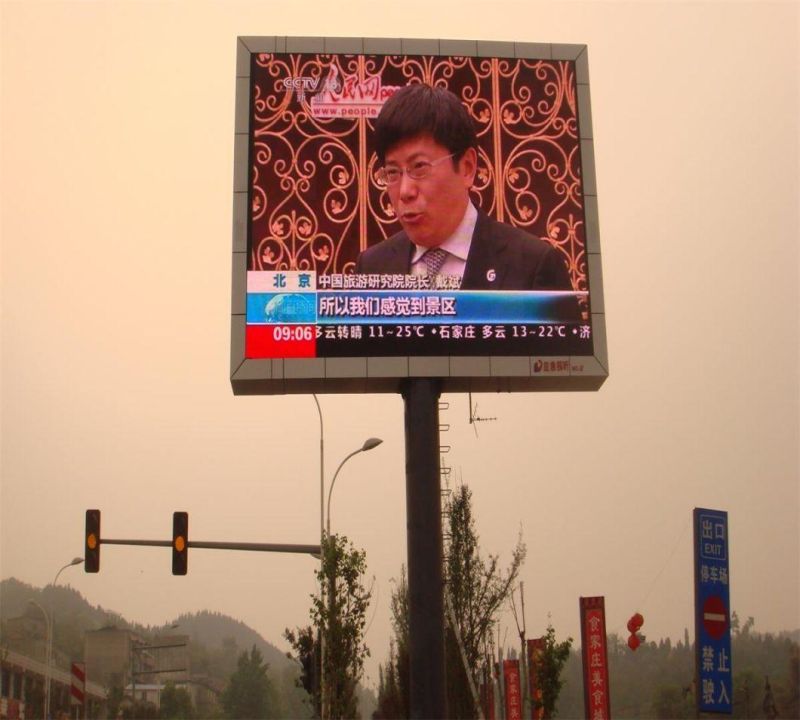

Unipole standing on the roadside:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

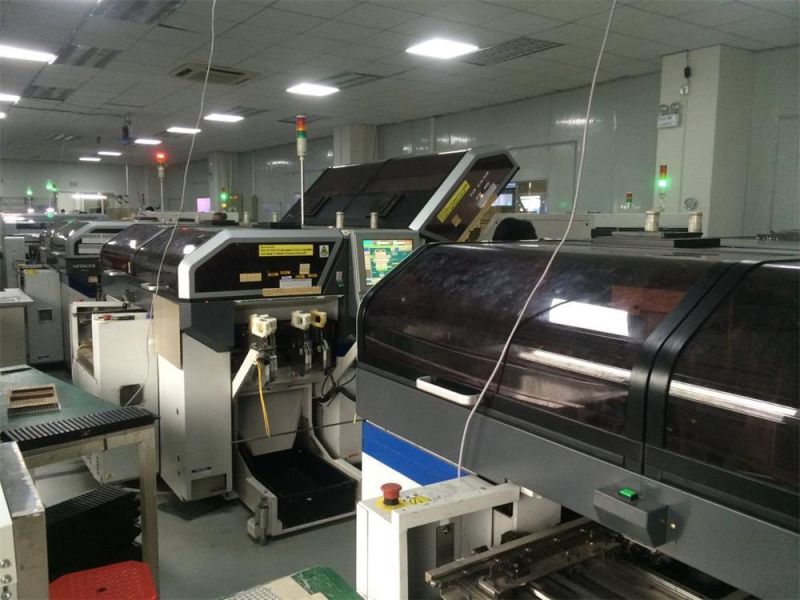

Factory photos :


10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

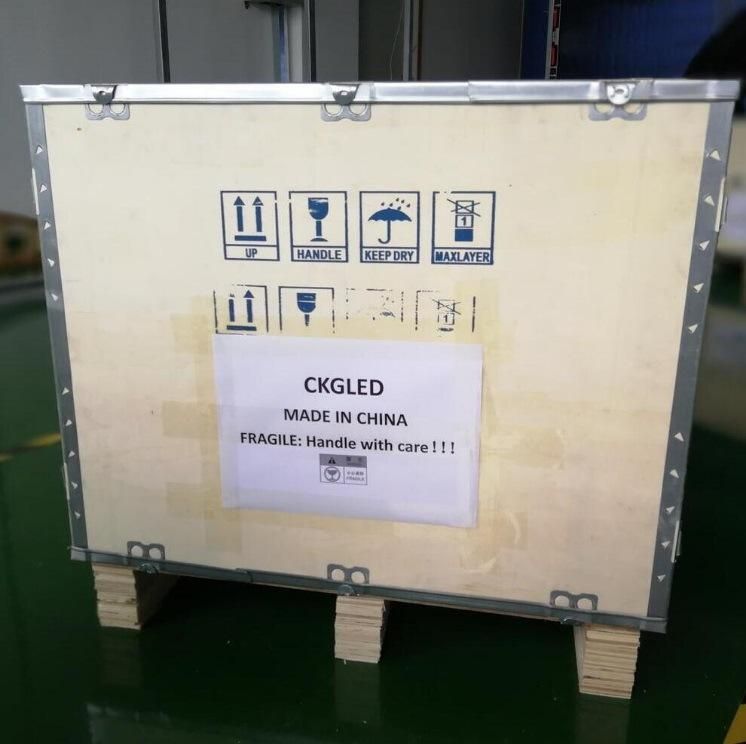

Wooden Case Package:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen


Certificates:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen


SERVICE:

Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design


In Producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

After-service:

1. 2 years warranty
2. 1%  spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
