Basic Info.

Model NO. P4 Pixel Configuration 1R,1G,1B Pixel Density 62500dots/Sqm Scanning Mode 1/8 Scan System Operating Platform Windows Series Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP54 Certification CE, RoHS, CCC, ISO9001, FCC, CB LED Arrangement SMD1921 3in1 Cabinet Size 576mm, 786mm, 960mm Are Avaliable Cabinet Material Steel or Aluminum View Angle 140 Degree ( Horizontal) 140degree(Vertical) Operation Power AC100-240V 50-60Hz Switch-Able Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI Brightness 6500CD Waterproof Level IP65 Refresh Rate 1920Hz/3840Hz Life Time 100,000hours Warranty 2 Years Transport Package Wooden Case & Flight Case Specification P4 LED display board Trademark QC Origin China Guangdong HS Code 8528591090 Production Capacity 3000 Square meter/month

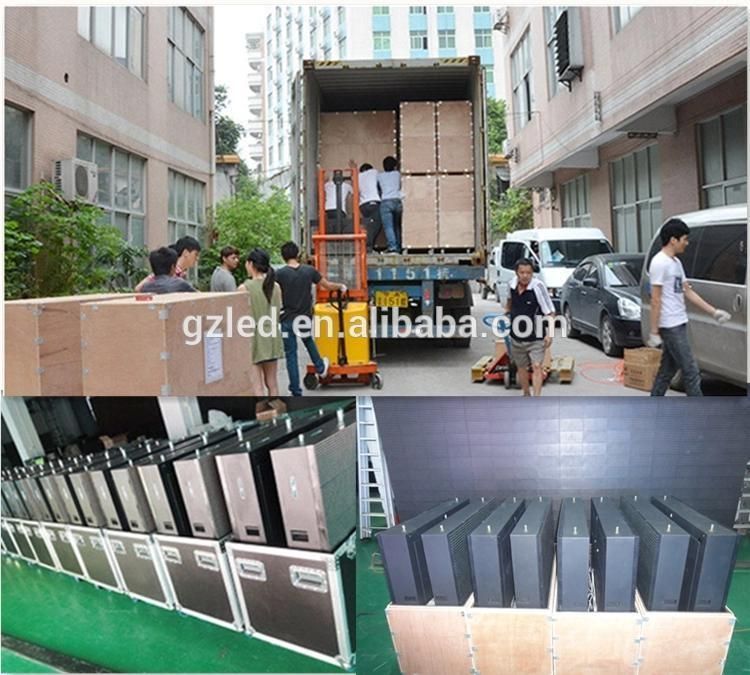

Packaging & Delivery

Package size per unit product 110.00cm * 116.00cm * 30.00cm Gross weight per unit product 55.000kg

Product Description

Technical parameters

Pitch Size	4mm
Module Size	320*160mm
Module Pixel(dots)	80dots*40dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1
LED chip	Sanan
Color scale	65536degree/16777216colors
Pixel density	62500pixels/square meter
View angle(H/V)	≥140/140degree
Brightness	≥6500cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	3--200m
Power consumption	100-1200W/square meter
Net weight	45kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	1920Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz
Operating system	Windows series
Drive mode	constant current driving, 1/8 scan
Display mode	VGA640X480-VGA1600X1024
Protection Level	IP65
Maintenance way	Rear access
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI















RFQ

1. Diversified products :

Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.



 2. Experienced&Professional:

10 years manufacturing experience on LED displays, professional workmanship & design.



 3. Best raw materials:

 High quality,high brightness and long life span.



 4. Competitive price:

 100% factory price,competitive and reasonable price.



 5. Strict quality control:

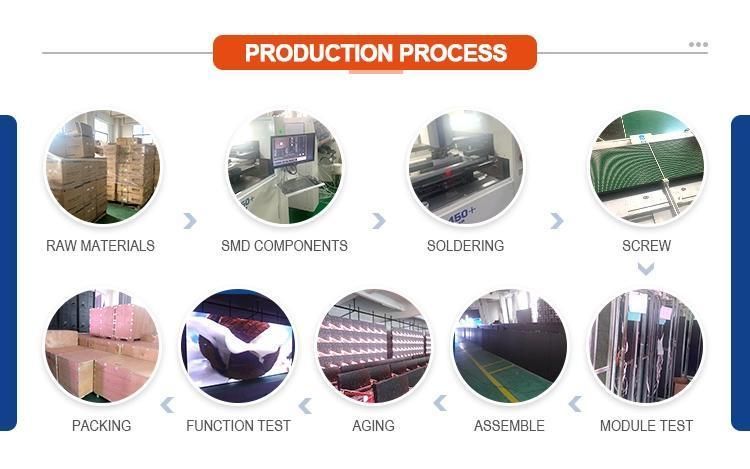

 100% testing before packing , make sure our quality before delivery.



 6. Quality gurantee:

 Life span of LED display screens is more than 100,000 hours

 All our LED displays have CE,FCC,RoHS certificates.



7. Prompt &Professional service :

Any inquires will be replied within 24 hours in working days and you'll get helpful suggestions from us.

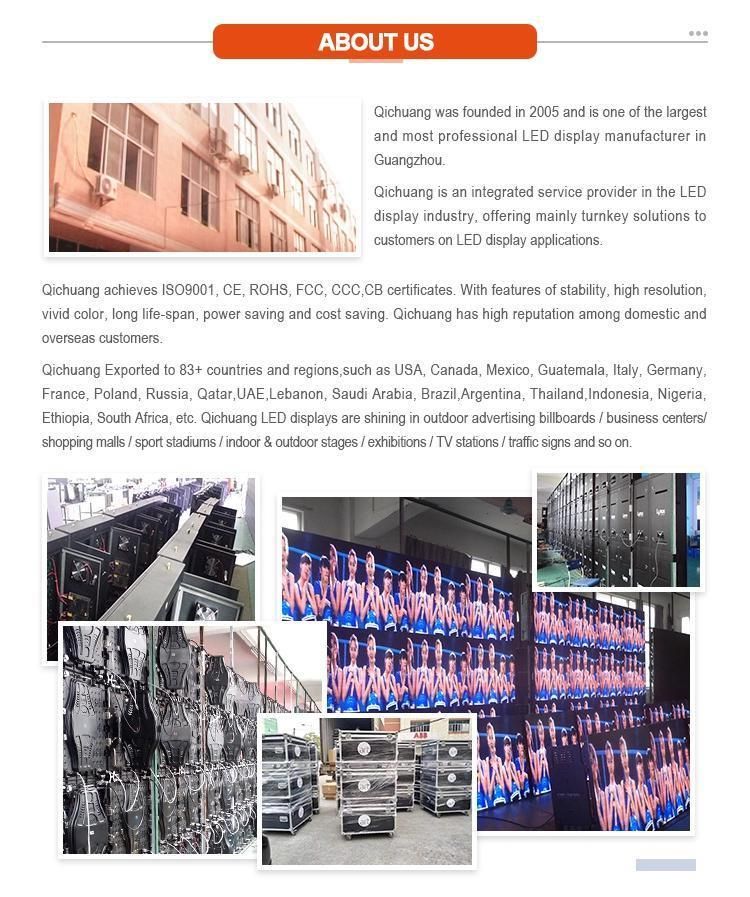

Guangzhou Qichuang Electronic&Technology Co.,Ltd.


Add: 2 Building, No.3 Lianda Road, Canglian Industrial Park, Huangpu District, Guangzhou, China
