Basic Info.

Model NO. R090GX08B LED Qty 90 LEDs/Meter Max Cascade Length 5 Meters Cuttable Unit 100mm Product Size 5000*8*1.15mm LED Pitch 11.1mm Min. Bend Diameter 20mm Mounting Solution 3m Tape Operating Ambient -25 Centigrade Degrees to 45 Centigrade Degrees Storage Environment -25 Centigrade Degrees to 60 Centigrade Degrees Transport Package Carton Packaging Specification 5M/roll Trademark OEM/ODM/Neutral/MYNICE Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

24V DC 200LM/W high efficiency double side PCB 2835 LED strip

Application
- Suitable for hotels, shopping malls, home furnishings, cabinets, display racks, main lighting, indirect lighting, dark slot lighting, contour outline, decorative lighting, etc.

Main features
- High efficiency: 200lm/W
- SMD2835 LED
- Excellent thermal and voltage drop design ( 2 OZ copper FPC design)
- 24V DC
- Dimmable

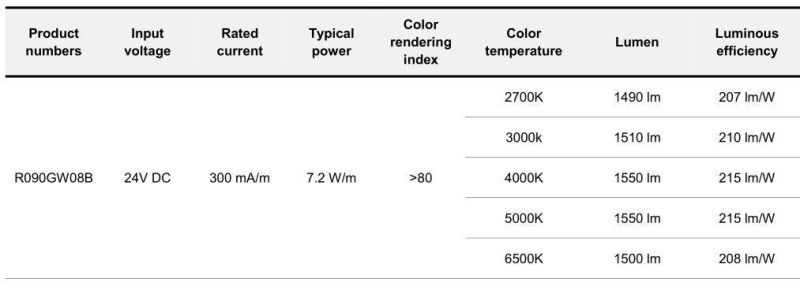

Main Parameters

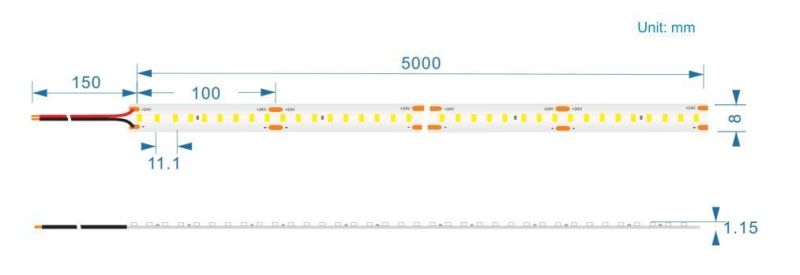

Product size:  5000*8*1.15 mm
Cut-able unit:  100mm
LED pitch:  11.1 mm
LED quantity:  90 LEDs/m
Max. cascade length:  5 m
Min. bend diameter:  20 mm
Mounting solution:  3M tape
Operating ambient : -25ºC~45ºC
Storage environment : -25ºC~60ºC / 60% RH

1. Ranking at t a = 25ºC.
2. Tolerance of measurements for brightness is ±10%, tolerance of measurements for the Chromaticity Coordinate is ±0.01.

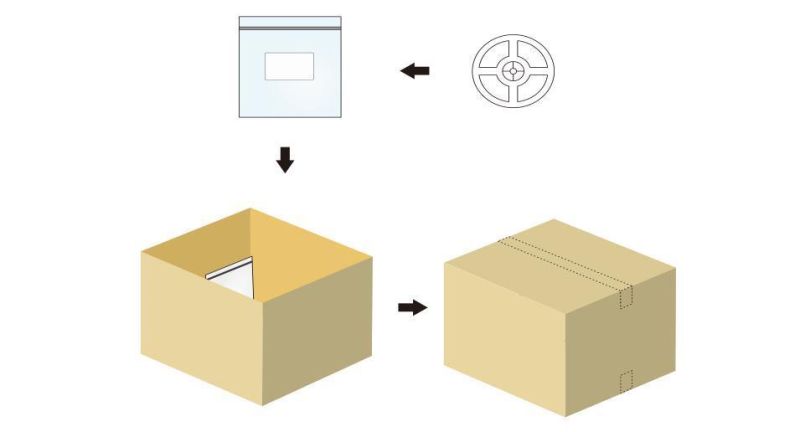

Package
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the
voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40
ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
