Basic Info.

Model NO. 1.25mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 150mm*168.75mm Cabinet Size 600mm*337.5mm LED Type Nationstar SMD1010 Refresh Rate 3840Hz Maintenance Rear / Front Service Cabinet Material Die-Casting Aluminum Brightness 800CD Transport Package Wooden Case Specification 8 pcs cabinet in one case Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Per Month

Product Description

INDOOR P1.25mm LED Display Screen

Product Features:

1. Ultra small pixel pitch high definition 8K image and video

2. Support front service maintenance, satisfy your different project needs

3. Support receiving card and other accessories double backup

4. The cabinet size 16:9 proportion design, better display


Detailed Specifications:


NO.	Parameters	Specifications
1	Model	CM1.2
2	Pixel Pitch(mm)	1.25
3	LED	SMD1010
4	Screen Resolution	640000dots/sqm
5	Scan Method	1/30
6	Module size(mm)	150*168.75
7	Cabinet size(mm)	600x337.5
8	Cabinet material	Die-casting Aluminum
9	Cabinet(Kg)	6
10	Viewing angle	H:160°/  V:140°
11	Grey Scale	16bits
12	Refresh rate(Hz)	≥3840
13	Brightness(nits)	≥800
14	Working Voltage(V)	220V
15	AVE. power consumption (W/m2)	240
16	MAX. power consumption(W/m2)	650
17	IP grade	IP31
18	Controller	Novastar
19	Maintenance	Front service
20	Working humidity	10~90%RH
21	Working temperature	-20ºC~50ºC

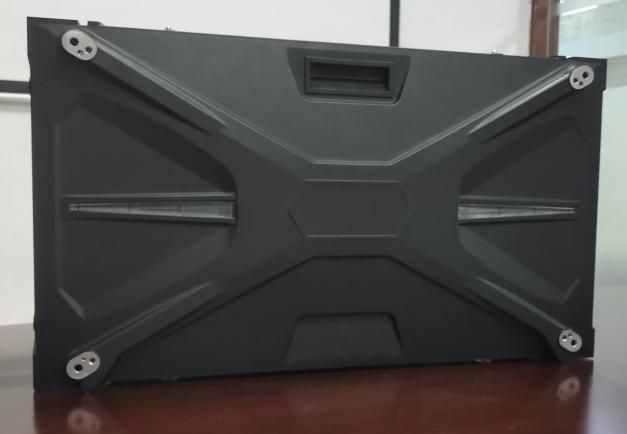

Cabinet Photos:

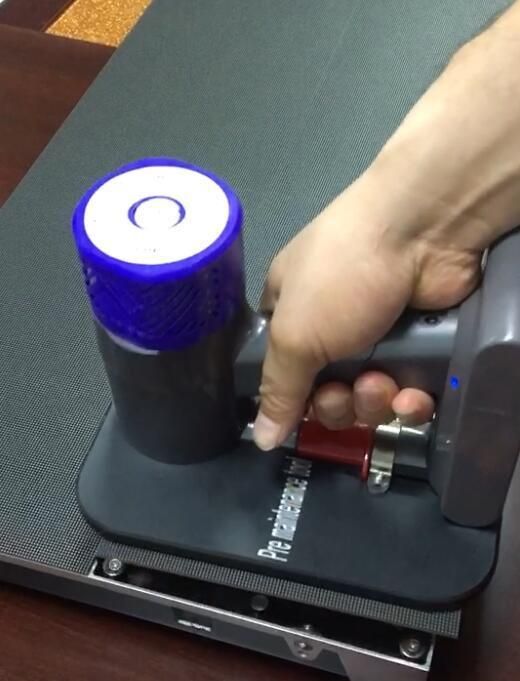

Easy to maintain

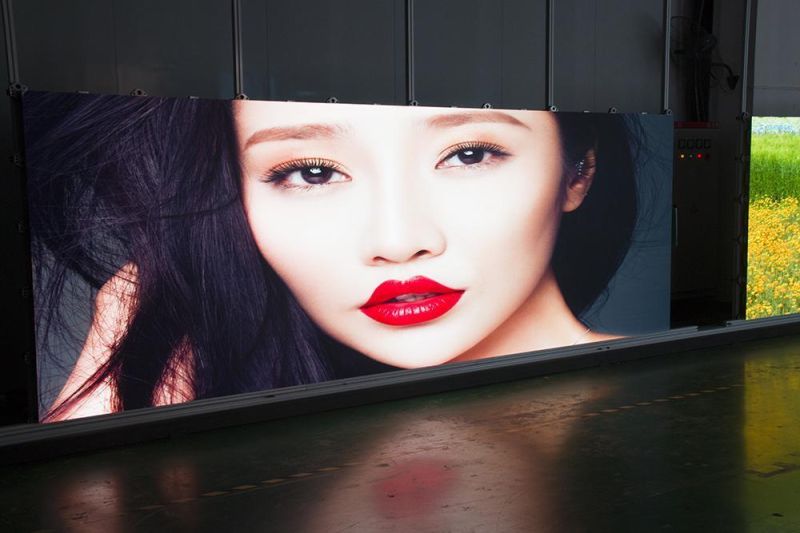

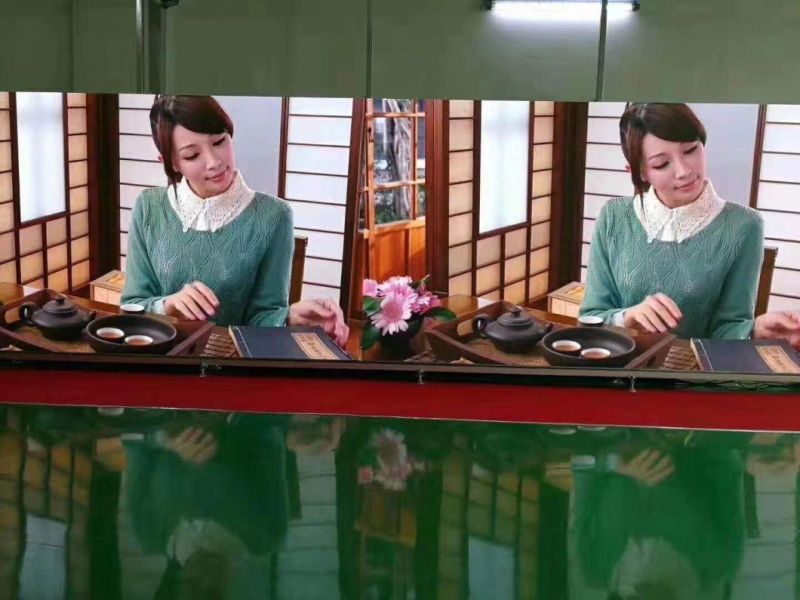

Testing And Aging:

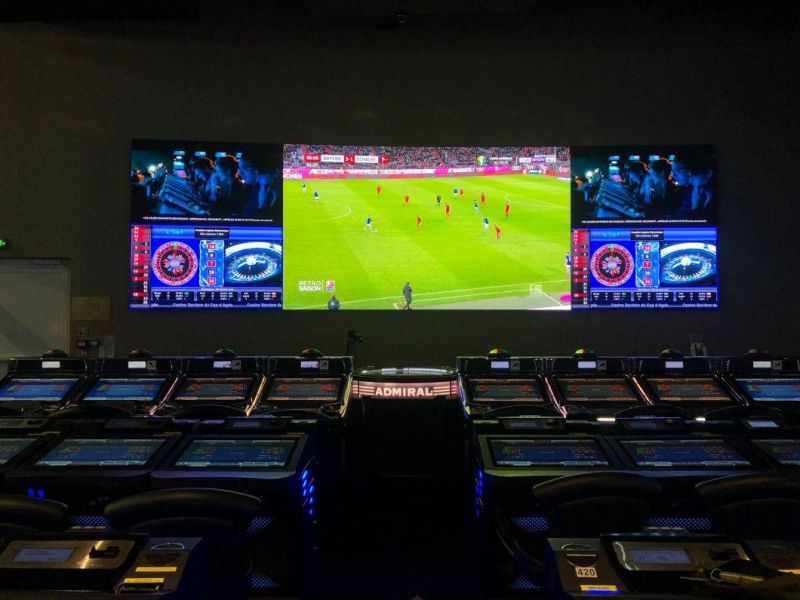

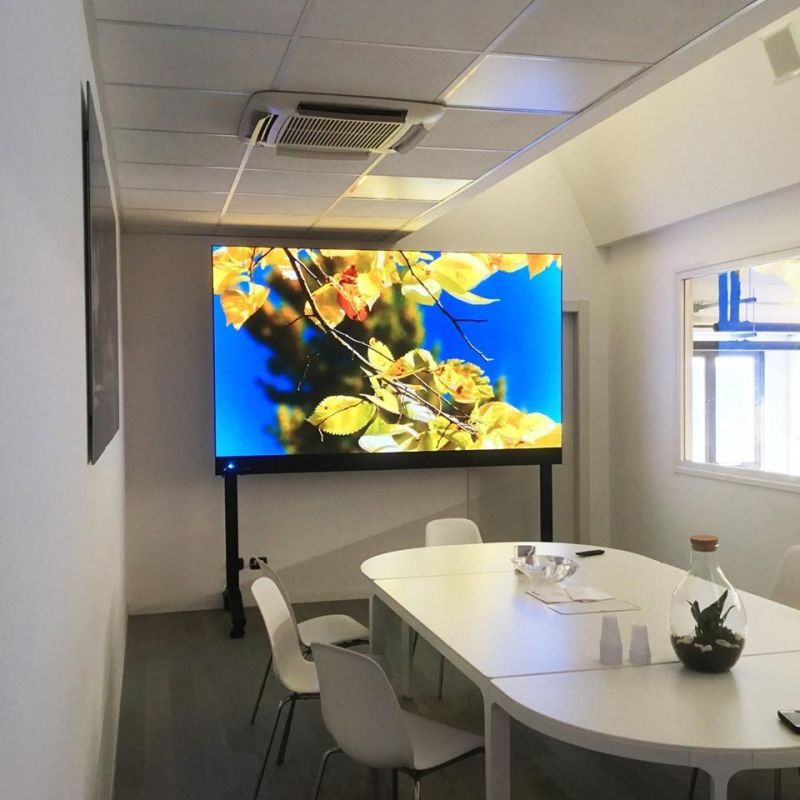

CKGLED small pitch led display Project Case:





Packing




Certifications:




After- sales service:

Pre-producing:    1. Get complete requirement of clients
                         2. To do a thorough analysis
                         3. Offer a most reasonable and scientific solution
                         4. Customized design

In producing:      1. Producing progress updating for clients
                         2. Particular installation CAD and Design Diagram for clients


After Service:     1. 2 years free maintenance
                         2. 7days a week, 24 hours a day on-line service for any technical support for any customers
                         3. Free training for customers in factory
                         4. Local partner installation service
